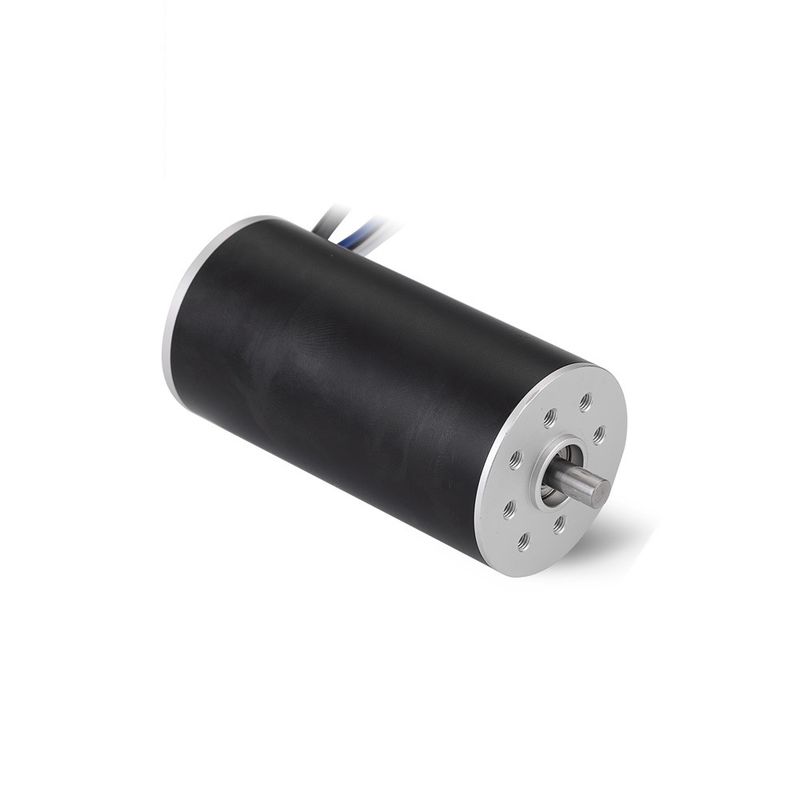

36mm Brushless Coreless DC Motor 12V 24V 30V 36V 17000 RPM For Medical Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-3670RB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Motor Type: | Brushless |
|---|---|---|---|
| Voltage: | DC24V | No Load Speed: | 16700RPM |
| Nominal Torque: | 200mNm | Nominal Current: | 15.76A |
| Stall Torque: | 1899mNm | Stall Current: | 141.17A |
| Shaft Diameter: | 4.0mm | Shaft Length: | 3~15mm Customized |
| Highlight: | 36mm Coreless DC Motor,Brushless Coreless DC Motor,Coreless Motor 12V 17000 RPM |
||
Product Description
DCL-3670RB 12V 24V 30V 36V 17000RPM high torque 36mm brushless coreless DC motor for medical equipment
Quick Detail:
· Brushless coreless DC motor
· High speed
· High Torque
· Sensorless or not
.Long lifetime
.Low noise
· CE,ROHS compliant
· 1 Year Warranty
Description:
DCL-3670RB 36mm brushless coreless dc motor coil is fixed, and the permanent magnet rotates in the middle as the rotor. The no-load speed of the motor can reach 2000rpm~50000rpm; the brushless coreless motor can be used as a torque motor and positional motor after matching with reducers with different speed ratios and encoders with different resolutions
Specification:
| Item | DCL-3670RB Brushless coreless dc motor |
| Size | Diameter 36mm,Body Length 70mm |
| Install Size | 22mm,4*M3 |
| Efficiency | 92% Max |
| Working Voltage | 6V~48V DC |
| Speed | 3000~50000RPM |
| Torque | 2000mNm Max |
| Current | 190A Max |
| Bearing | Ball bearing |
| Shaft |
4.0mm Round type, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 10000hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
