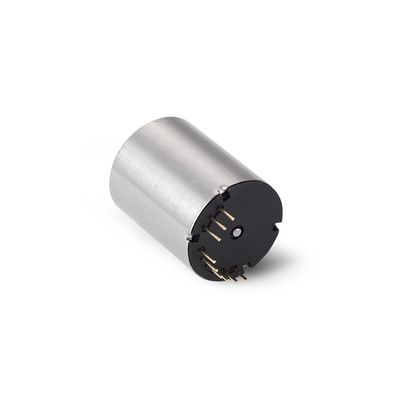

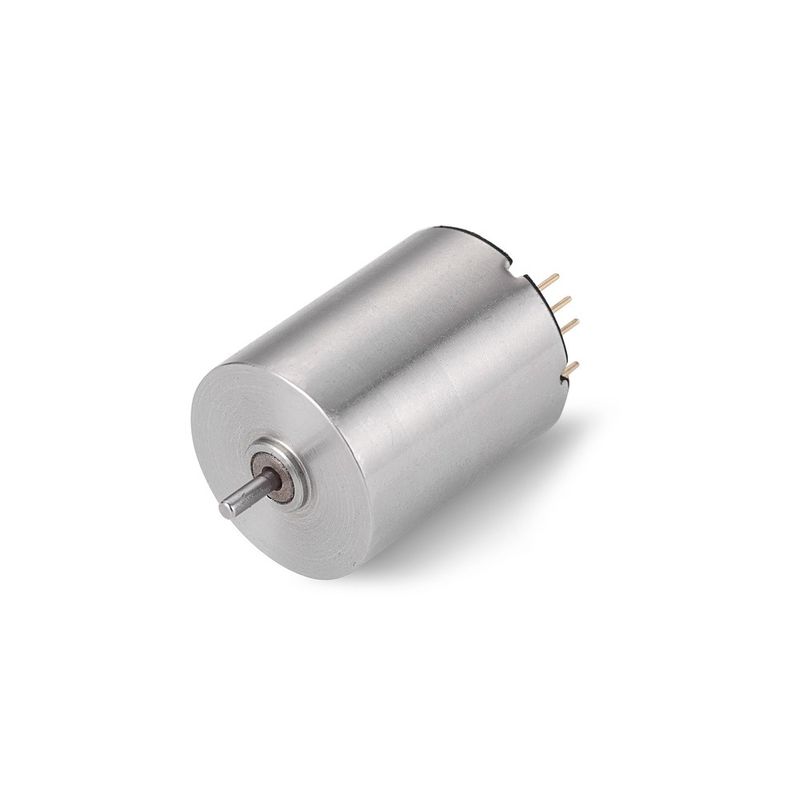

DCL-1722RB 7.4V 12V 24V Coreless BlDC Motor 17mm High Torque For Medical Device
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-1722RB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Motor Type: | Brushless |
|---|---|---|---|
| Voltage: | DC24V | No Load Speed: | 23000RPM |
| Nominal Torque: | 5mNm | Nominal Current: | 0.56A |
| Stall Torque: | 29.8mNm | Stall Current: | 3.04A |
| Shaft Diameter: | 1.5mm | Shaft Length: | 1~15mm Customized |
| Highlight: | Coreless BlDC Motor 17mm,7.4V Coreless BlDC Motor |
||
Product Description
DCL-1722RB 7.4V 12V 24V high torque 17mm coreless brushless DC motor for medical device
Quick Detail:
· Brushless coreless DC motor
· High speed
· High Torque
· Sensorless or not
.Long lifetime
.Low noise
· CE,ROHS compliant
· 1 Year Warranty
Description:
DCL-1722RB coreless brushless dc motor have 22mm length body length which could provide Stable Performance, Strong Power, Long Service Time. Get Unique Micro DC Motor Solutions for Your Projects by Custom Design and Improvement.
Specification:
| Item | DCL-1722RB Brushless coreless dc motor |
| Size | Diameter 17mm,Body Length 22mm |
| Install Size | 8mm,3*M2 |
| Efficiency | 85% Max |
| Working Voltage | 6V~24V DC |
| Speed | 9000~50000RPM |
| Torque | 35mNm Max |
| Current | 20A Max |
| Bearing | Oil bearing |
| Shaft |
1.5mm Round type, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 5000hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample →
sign contract/deposit →mass production →cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy,
it would be refund when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available,
please contact us if you need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
