12V 24V 36V 48V Coreless DC Motor 25000 RPM 32mm Brushless High Torque Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-3270RB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Motor Type: | Brushless |
|---|---|---|---|
| Voltage: | DC48V | No Load Speed: | 25000RPM |
| Nominal Torque: | 100mNm | Nominal Current: | 5.86A |
| Stall Torque: | 1181mNm | Stall Current: | 65.75A |
| Shaft Diameter: | 3.0mm | Shaft Length: | 5~15mm Customized |
| Highlight: | Coreless DC Motor 25000 RPM,36V Coreless DC Motor,32mm Brushless High Torque Motor |
||
Product Description

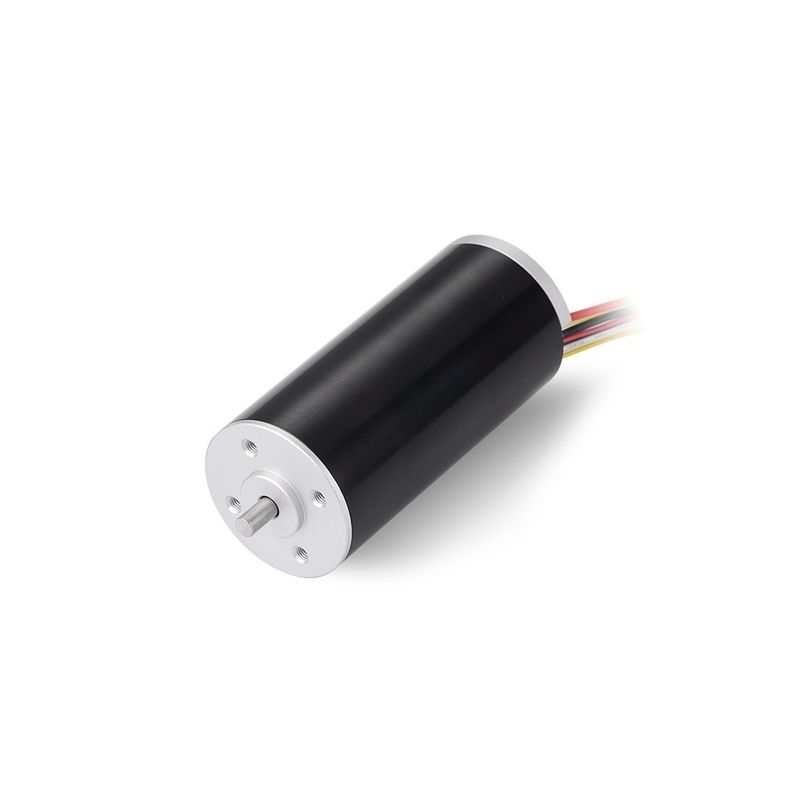

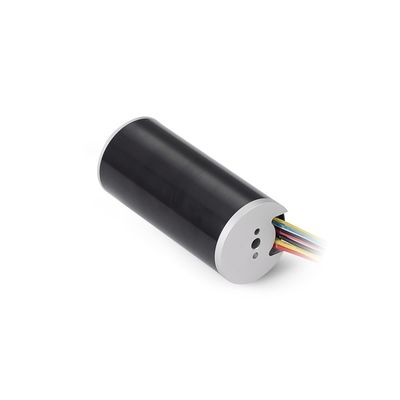

DCL-3270RB 12V 24V 36V 48V 25000RPM high torque 32mm brushless coreless DC motor for electric car
Quick Detail:
· Brushless coreless DC motor
· High speed
· High Torque
· Sensorless or not
.Long lifetime
.Low noise
· CE,ROHS compliant
· 1 Year Warranty
Description:
DCL-3270RB 32mm brushless coreless dc motor entered the large industrial and civil fields from the military and high-tech fields, especially in industrialized countries, they have been used in virtually all industries and have impacted most products.
Specification:
| Item | DCL-3270RB Brushless coreless dc motor |
| Size | Diameter 32mm,Body Length 70mm |
| Install Size | 22mm,4*M3 |
| Efficiency | 92% Max |
| Working Voltage | 12V~48V DC |
| Speed | 4000~50000RPM |
| Torque | 1500mNm Max |
| Current | 80A Max |
| Bearing | Ball bearing |
| Shaft |
3.0mm Round type, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 10000hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
