DCL-3265 24V 32mm Coreless Brushed DC Motor 6000 RPM For Medical Device
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-3265 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Motor Type: | Brushed Dc Motor |
|---|---|---|---|
| Voltage: | DC24V | No Load Speed: | 6400RPM |
| Nominal Torque: | 30mNm | Nominal Current: | 0.95A |
| Stall Torque: | 200mNm | Stall Current: | 5.7A |
| Shaft Diameter: | 4.0mm | Shaft Length: | Customized |
| Highlight: | 32mm Coreless Brushed DC Motor,Coreless Brushed DC Motor 6000 RPM,24V Brushed DC Motor 6000 RPM |
||
Product Description

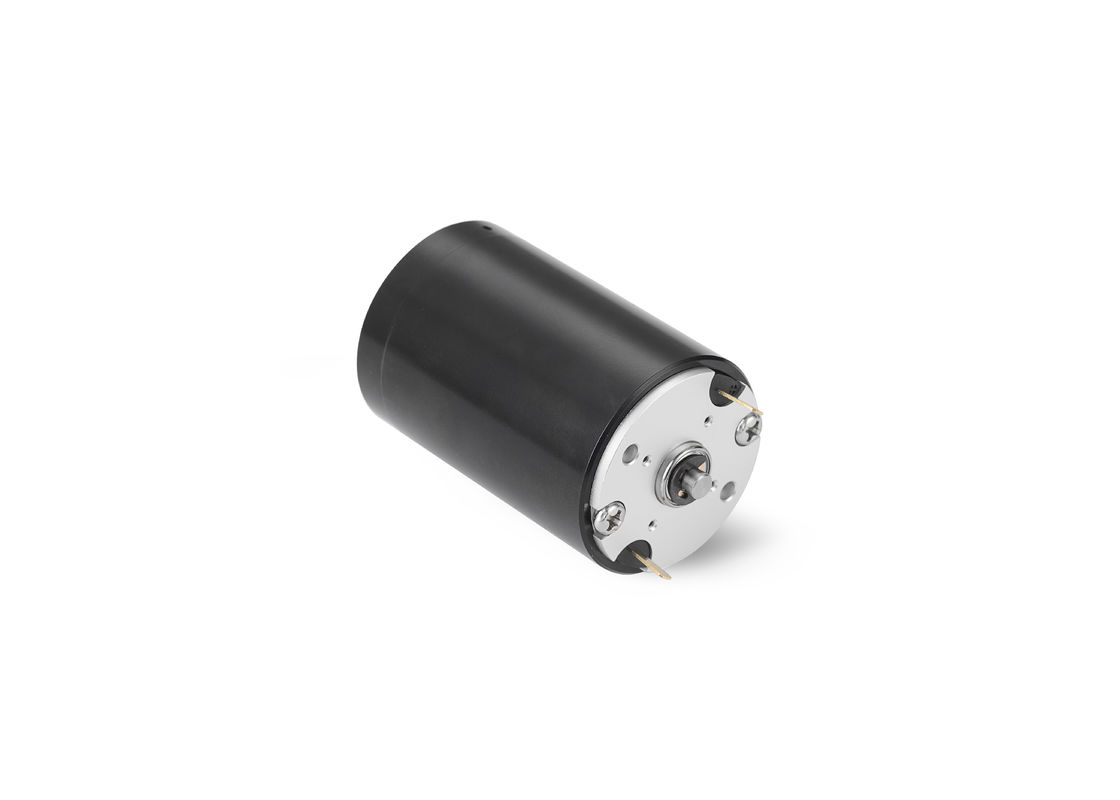

DCL-3265 24V 6000RPM 200mNm 32mm brushed coreless DC motor for medical device
Quick Detail:
· 32mm diameter,65mm length
· Speed customized
· Torque custimized
· 600hours lifetime
.Low noise
· CE,ROHS compliant
· 1 Year Warranty
Description:
The DCL-3265 motor is designed for use in environments that require high reliability and longevity.It can be customized according to specific needs, such as different voltage ratings, shaft lengths, and diameters.It is commonly used in a wide range of industrial and commercial applications that require precise control and high torque output.
Specification:
| Item | DCL-3265 coreless dc motor |
| Size | Diameter 32mm,Body Length 65mm |
| Install Size | 19mm,4*M2.5*D4.5mm |
| Efficiency | 90% Max |
| Working Voltage | 12V~36V |
| Speed | 3000~23000RPM |
| Torque | 800mNm Max |
| Current | 25A Max |
| Bearing | Oil bearing |
| Shaft | 4.0mm Round type, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 500~800hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
