12V 20000 RPM High Speed Coreless Motor DC 22mm Brushless Motor For Medical Drill
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-2232RB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Motor Type: | Brushless |
|---|---|---|---|
| Voltage: | DC12V | No Load Speed: | 19200RPM |
| Nominal Torque: | 5mNm | Nominal Current: | 0.97A |
| Stall Torque: | 30.26mNm | Stall Current: | 5.17A |
| Shaft Diameter: | 2.0mm | Shaft Length: | 2~15mm Customized |
| Highlight: | 12V High Speed Coreless Motor,20000 RPM High Speed Coreless Motor,12V 22mm Brushless Motor |
||
Product Description

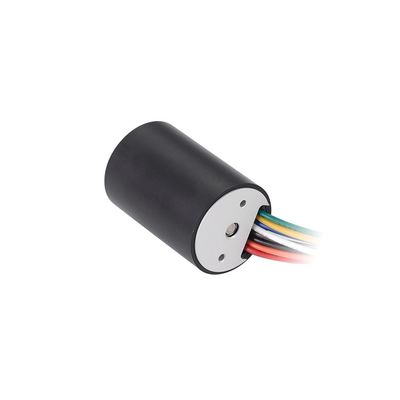

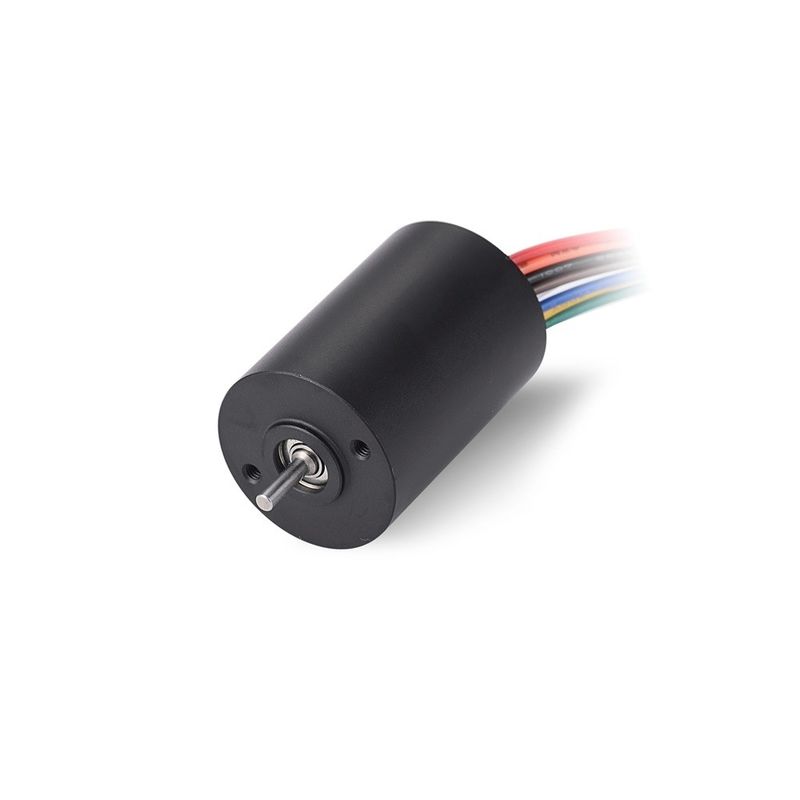

DCL-2232RB 12V 20000RPM high speed 22mm coreless brushless DC motor for medical drill
Quick Detail:
· Brushless coreless DC motor
· High speed
· High Torque
· Sensorless or not
.Long lifetime
.Low noise
· CE,ROHS compliant
· 1 Year Warranty
Description:
DCL-2232RB coreless brushless dc motor not like coil winding method as conventional coreless motor, especially proceed thin copper plate as stator can flow large amount of current.This copper plate will not be deformed even by large force. And solid and non-eccentric processing technology achieved small, light, Hi-power and large torque.In addition to the cogging-less, which is a feature of the coreless motor, it realizes a smooth rotating motor by making it brushless.
Specification:
| Item | DCL-2232RB Brushless coreless dc motor |
| Size | Diameter 22mm,Body Length 32mm |
| Install Size | 16mm,2*M2 |
| Efficiency | 80% Max |
| Working Voltage | 6V~24V DC |
| Speed | 10000~50000RPM |
| Torque | 70mNm Max |
| Current | 20A Max |
| Bearing | Oil bearing |
| Shaft |
2.0mm Round type, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 5000hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
