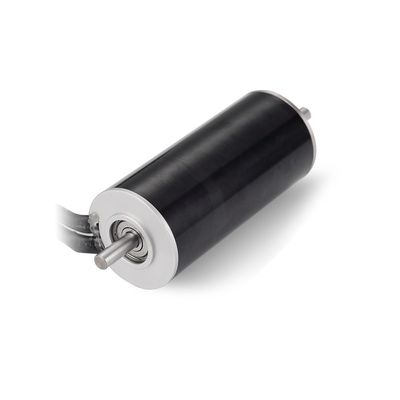

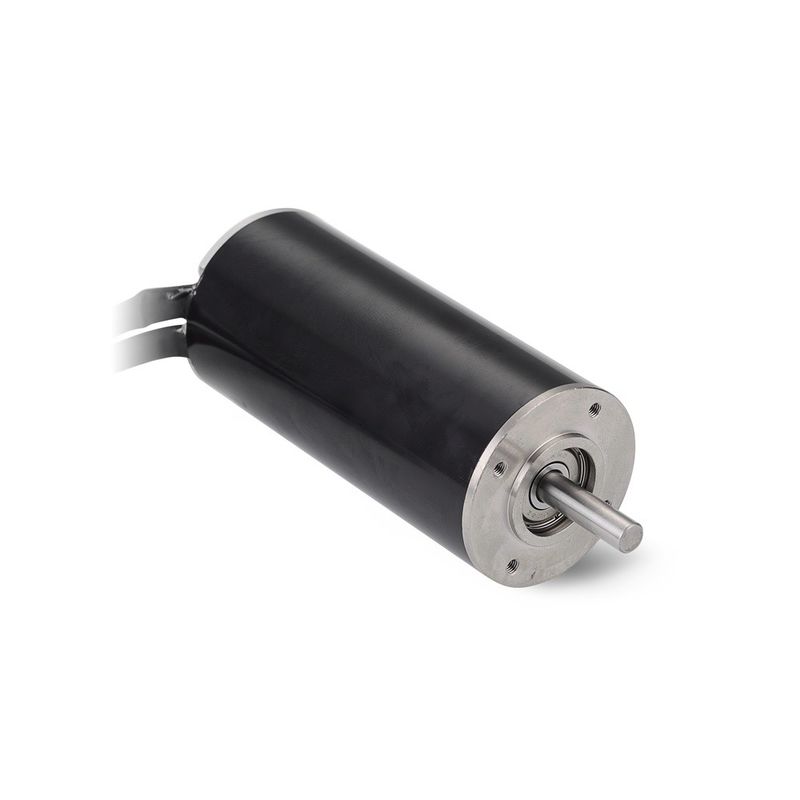

12V 24V 36V 48V Coreless DC Motor 40mm 15000 RPM High Torque Brushless Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-4088RB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Motor Type: | Brushless |
|---|---|---|---|
| Voltage: | DC36V | No Load Speed: | 15000RPM |
| Nominal Torque: | 500mNm | Nominal Current: | 23.06A |
| Stall Torque: | 3850mNm | Stall Current: | 171A |
| Shaft Diameter: | 6.0mm | Shaft Length: | 3~15mm Customized |
| Highlight: | 48V Coreless DC Motor,Brushless Coreless DC Motor,12V High Torque Brushless Motor |
||
Product Description
DCL-4088RB 12V 24V 36V 48V 15000RPM high torque 40mm brushless coreless DC motor for Robot
Quick Detail:
· Brushless coreless DC motor
· High speed
· High Torque
· Sensorless or not
.Long lifetime
.Low noise
· CE,ROHS compliant
· 1 Year Warranty
Description:
DCL-4088RB 40mm brushless coreless dc motor has fast-response follow-up system. With its rapid adjustment of the missile's flight direction, follow-up control of a high-magnification optical drive, rapid automatic focusing, highly sensitive recording and detection equipment, industrial robots, bionic prostheses, etc., the coreless motor can easily meet its technical requirements..
Specification:
| Item | DCL-4088RB Brushless coreless dc motor |
| Size | Diameter 40mm,Body Length88mm |
| Install Size | 32mm,4*M3 |
| Efficiency | 92% Max |
| Working Voltage | 6V~48V DC |
| Speed | 2000~50000RPM |
| Torque | 5000mNm Max |
| Current | 200A Max |
| Bearing | Ball bearing |
| Shaft |
6.0mm Round type, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 10000hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
