High Torque Coreless DC Motor Brushless 24V 30V 13000 RPM 25000 RPM 24mm
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-2447RB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Motor Type: | Brushless |
|---|---|---|---|
| Voltage: | DC24V | No Load Speed: | 13000RPM |
| Nominal Torque: | 20mNm | Nominal Current: | 1.25A |
| Stall Torque: | 197.52mNm | Stall Current: | 11.42A |
| Shaft Diameter: | 3.0mm | Shaft Length: | 2~15mm Customized |
| Highlight: | Coreless DC Motor 13000 RPM,Coreless DC Motor 25000 RPM,Coreless Brushless DC Motor 24mm |
||
Product Description

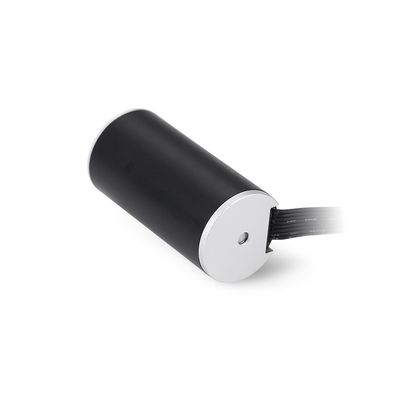

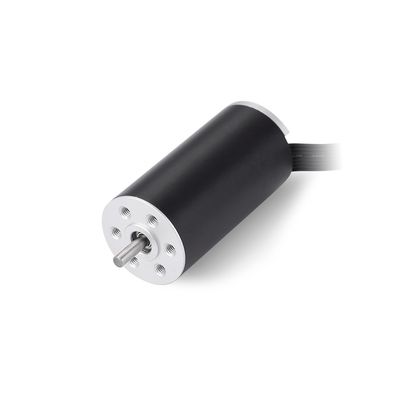

DCL-2447RB 24V 30V 13000RPM 25000RPM high torque 24mm brushless coreless DC motor for medical drill
Quick Detail:
· Brushless coreless DC motor
· High speed
· High Torque
· Sensorless or not
.Long lifetime
.Low noise
· CE,ROHS compliant
· 1 Year Warranty
Description:
DCL-2447RB coreless brushless dc motor has no physical structure, the coil wire is directly connected to the controller, and commutation is completed by processing the position signal fed back by the Hall on the connecting plate.
Specification:
| Item | DCL-2447RB Brushless coreless dc motor |
| Size | Diameter 24mm,Body Length 47mm |
| Install Size | 16mm,6*M3 |
| Efficiency | 88% Max |
| Working Voltage | 6V~36V DC |
| Speed | 8000~50000RPM |
| Torque | 300mNm Max |
| Current | 50A Max |
| Bearing | Ball bearing |
| Shaft |
3.0mm Round type, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 5000hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
