DCL-4070 8000 RPM 40mm Coreless DC Motor 2NM Brushed 24V 36V 48V For Medical Device
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-4070 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Motor Type: | Brushed Dc Motor |
|---|---|---|---|
| Voltage: | DC48V | No Load Speed: | 7700RPM |
| Nominal Torque: | 100mNm | Nominal Current: | 1.81A |
| Stall Torque: | 1552mNm | Stall Current: | 26.6A |
| Shaft Diameter: | 6.0mm Customized | Shaft Length: | As Requried |
| Highlight: | 8000 RPM Coreless DC Motor,40mm Coreless DC Motor,DC Motor 2NM Brushed |
||
Product Description

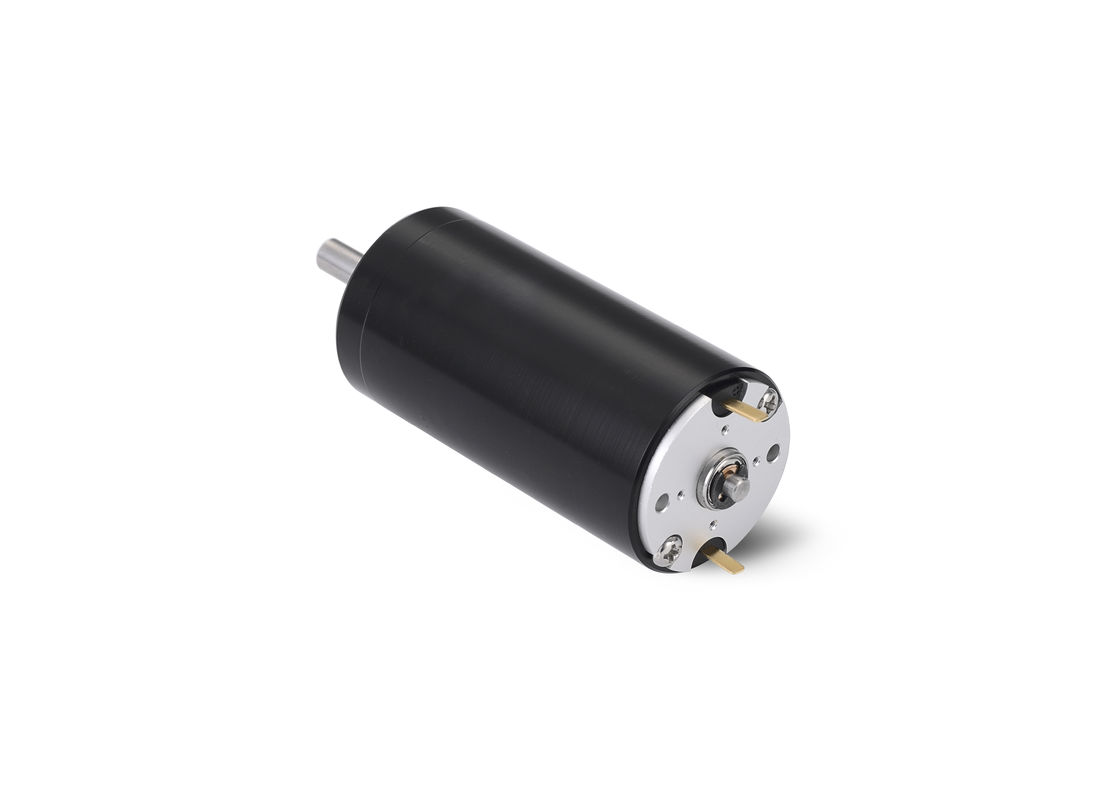

DCL-4070 24V 36V 48V 8000RPM 2NM 40mm brushed coreless DC motor for high-end medical device
Quick Detail:
· 40mm diameter,70mm length
· Speed customized
· Torque customized
· 800 hours lifetime
.Low noise
· CE,ROHS compliant
· 1 Year Warranty
Description:
DCL-4070 is an 40mm diameter coreless brushed dc motor. The motor's advanced design and construction process result in high efficiency, reducing energy consumption and heat generation. This efficiency rating makes the DCL-4070 an excellent choice for power-sensitive applications.
Specification:
| Item | DCL-4070 coreless dc motor |
| Size | Diameter 40mm,Body Length 70mm |
| Install Size | 22mm,6*M3.5*D5.0 |
| Efficiency | 85% Max |
| Working Voltage | 12V~48V DC |
| Speed | 4000~23000RPM |
| Torque | 2000mNm Max |
| Current | 50A Max |
| Bearing | Oil bearing |
| Shaft |
4.0~6.0mm Round type or customized, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 500~800hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample →
sign contract/deposit →mass production →cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy,
it would be refund when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available,
please contact us if you need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
