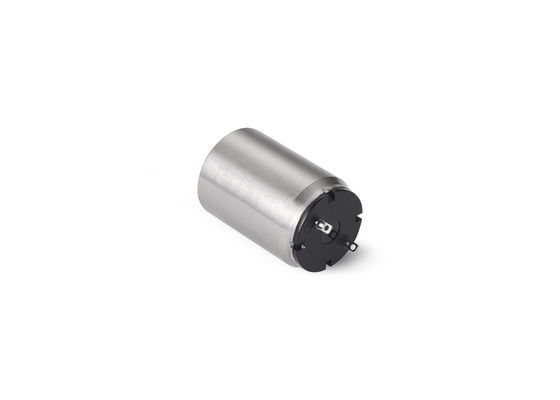

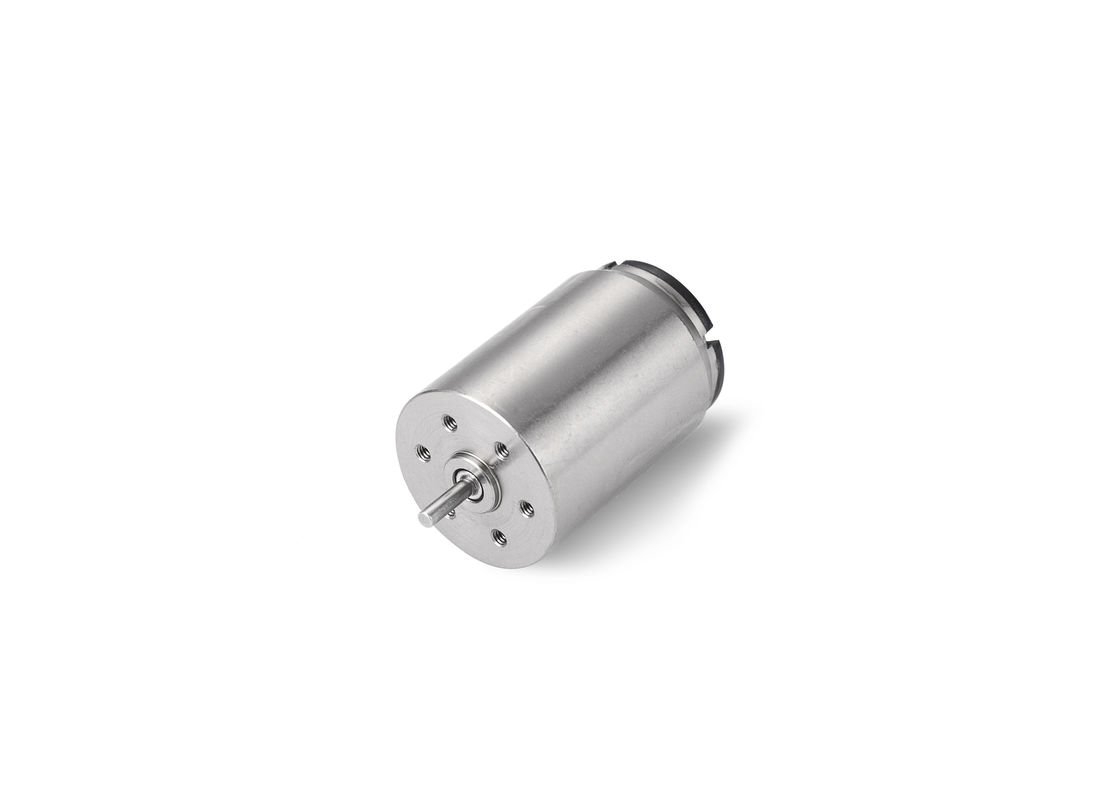

DCL-2232 12V 22mm Brush Coreless DC Motor 10000 RPM For Medical Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-2232 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Motor Type: | Brush Motor |
|---|---|---|---|
| Voltage: | DC12V | No Load Speed: | 10000RPM |
| Nominal Torque: | 5mNm | Nominal Current: | 0.46A |
| Stall Torque: | 70mNm | Stall Current: | 6.2A |
| Shaft Diameter: | 2.0mm | Shaft Length: | As Requried |
| Highlight: | Brush Coreless DC Motor,22mm Coreless DC Motor,12V DC Motor 10000 RPM |
||
Product Description
DCL-2232 12V 10000RPM 22mm brush coreless DC motor for medical equipment
Quick Detail:
· 22mm diameter
· 10000rpm No load speed
· Torque custimized
· 500hous lifetime,
.Low noise
· CE,ROHS complian
· 1 Year Warranty
Description:
The DCL-2232 coreless DC motor provides a reliable, efficient, and maintenance-free solution for a wide range of industrial and commercial applications. Its coreless design ensures smooth rotation, high torque output, and longevity, making it an excellent choice for a wide range of load conditions.
Specification:
| Item | DCL-2232 coreless dc motor |
| Size | Diameter 22mm,Body Length 32mm |
| Install Size | 12mm,6*M2 |
| Efficiency | 90% Max |
| Working Voltage | 3V~12V |
| Speed | 3000~18000RPM |
| Torque | 70mNm Max |
| Current | 8A Max |
| Bearing | Oil bearing |
| Shaft | 2mm Round type, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 500hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample →
sign contract/deposit →mass production →cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy,
it would be refund when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available,
please contact us if you need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
