DCL-1725 17mm 12V Coreless Brush DC Motor 10000 Rpm For Tattoo Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-1725 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 15~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Coreless Dc Motor | Voltage: | DC 12V |
|---|---|---|---|
| No Load Speed: | 12000RPM | Nominal Torque: | 1mNm |
| Motor Type: | Brush Motor | Nominal Current: | 0.12A |
| Stall Torque: | 19mNm | Stall Current: | 2.0A |
| Shaft Diameter: | 1.5mm | Shaft Length: | Customized |
| Highlight: | 17mm Coreless Brush DC Motor,12V Coreless Brush DC Motor,12V DC Motor 10000 Rpm |
||
Product Description

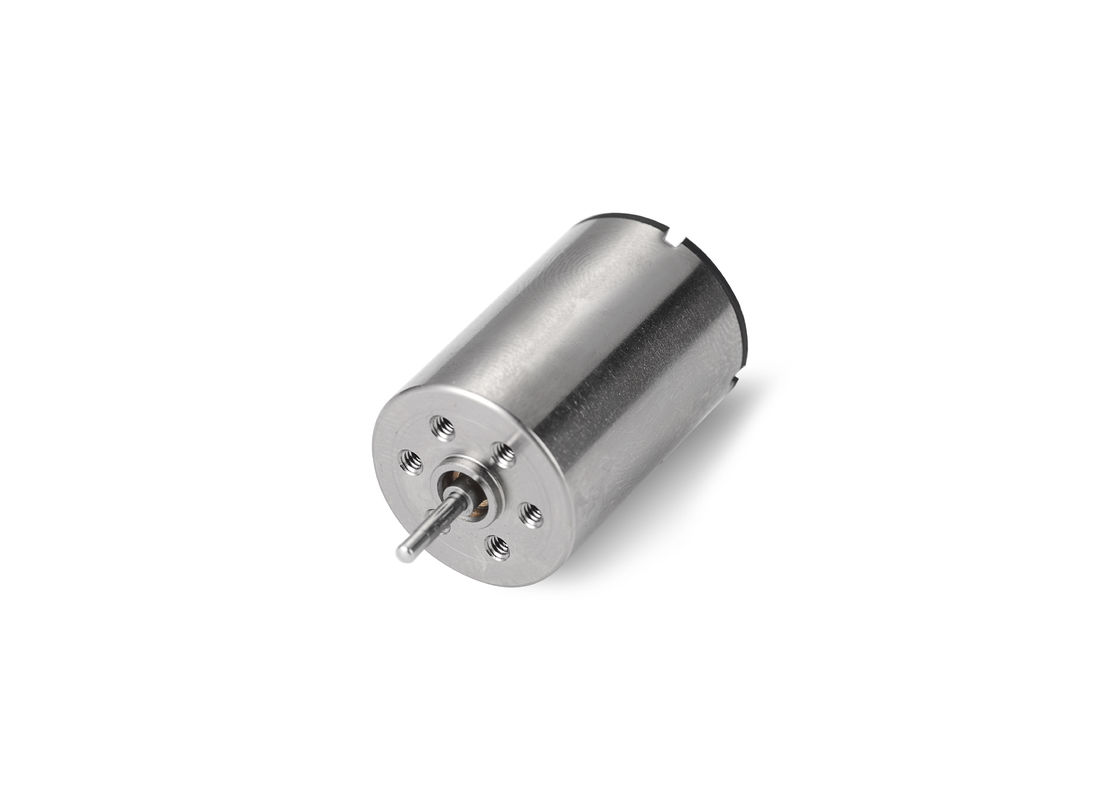

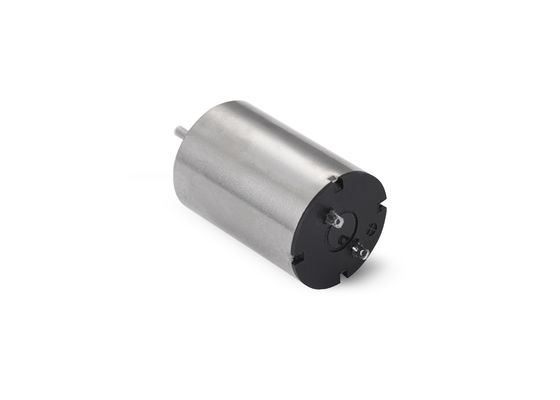

DCL-1725 12V 12000RPM 17mm brush coreless DC motor for tattoo machine
Quick Detail:
· Small size
· High speed
· High torque
· Long lifetime,
.Low noise
· CE,ROHS compliant
· 1 Year Warranty
Description:
DCL-1725 is an coreless brush dc motor. The motor out diameter 17mm,body length 25mm,working voltage range from dc 3V ~12V, the motor speed 12000rpm also accept customized max 20000RPM. The DCL-1725 coreless brush dc motor could been used to replace maxon 1725 at much low cost.The coreless dc motor mainly use for tattoo machine,medical equipment and other high end products.
Specification:
| Item | DCL-1725 coreless dc motor |
| Size | Diameter 17mm,Body Length 25mm |
| Install Size | 10mm,6*M2 |
| Efficiency | 90% Max |
| Working Voltage | 3V~12V |
| Speed | 3000~20000RPM |
| Torque | 18mNm Max |
| Current | 5A Max |
| Bearing | Oil bearing |
| Shaft | 1.5mm Round Diameter, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 500hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,medical equipment,Copiers and Scanners,Smart lock.
