16mm Dia 3V 6V 12V 15V 24V 20000 RPM DC Motor Coreless For Tattoo Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | DCL-1625 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | USD15/pc |
| Packaging Details: | 500pcs/carton box |
| Delivery Time: | 22~25 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000PCS Per Month |
|
Detail Information |
|||
| Motor Type: | Brush Coreless Motor | Voltage: | DC 3V~24V |
|---|---|---|---|
| Speed: | 3000~20000RPM | Torque: | 18mNm Max |
| Highlight: | 12V 20000 Rpm DC Motor,24V DC Motor Coreless,16mm DC Motor Coreless |
||
Product Description
Quick Detail:
· Metal housing
· DC3~24V Voltage options
· Max torque 15mNm
· 3000~20000rpm high speed
· Shaft Customized
· Long lifetime,low noise
· CE, ROHS compliant
· 1 Year Warranty
Description:

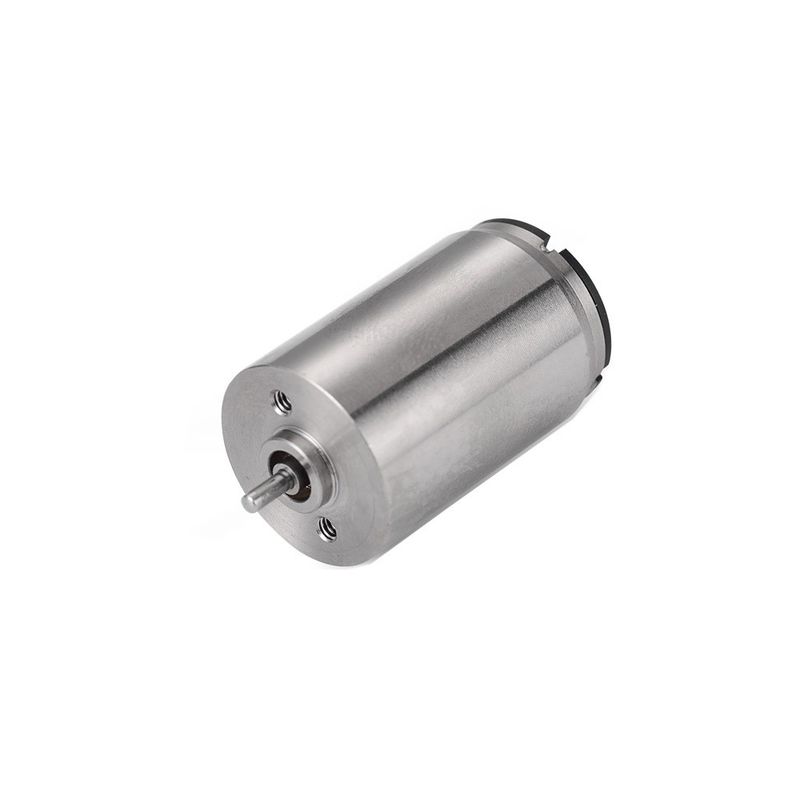

DCL-1625 is an coreless brush dc motor. Which diameter is 16mm,length 25mm. The small size could provide much power that 20000rpm max speed and 15mNm torque. DCL-1625 could replace the famous 1625 motor completely with much low cost. The DCL-1625 coreless dc motor mainly use for tattoo machine,vending machine,drone,smart lock and so on.
Specification:
| Item | DCL-1625 coreless dc motor |
| Size | Diameter 16mm*Length 25mm |
| Install Size | Diameter 10mm,6*M2 |
| Efficiency | 90% Max |
| Working Voltage | 3V~24V |
| Speed | 3000~20000RPM |
| Torque | 18mNm Max |
| Current | 2.5A Max |
| Wattage | 6Watt Max |
| Bearing | Oil bearing |
| Shaft | 1.5mm Round Diameter, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 500hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,ATM,Copiers and Scanners,Smart lock.
