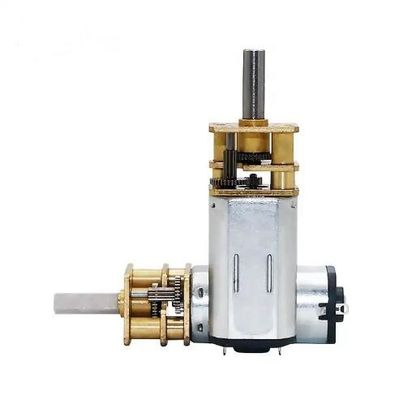

12MM Gearbox Metal Gear DC Motor 45 Rpm 1.5V 24V 0.7 Watt For Door Lock
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DGA12-N30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD1.65-2.65PCS |
| Packaging Details: | Carton |
| Delivery Time: | 30DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 5000PCS30DAYS |
|
Detail Information |
|||
| Product Name: | Dc Gear Motor | Current: | 0.03A |
|---|---|---|---|
| Gearbox Ratio: | 1:5-1000:1 | Material: | Metal |
| Noise: | ≤45dB | Power: | 0.5W |
| Shaft Diameter: | 2.5mm | Speed: | 5-2000RPM |
| Voltage: | 1.5-12V | ||
| Highlight: | Gearbox Metal Gear DC Motor,12MM Metal Gear DC Motor,DC Motor 45 Rpm 0.7 Watt |
||
Product Description

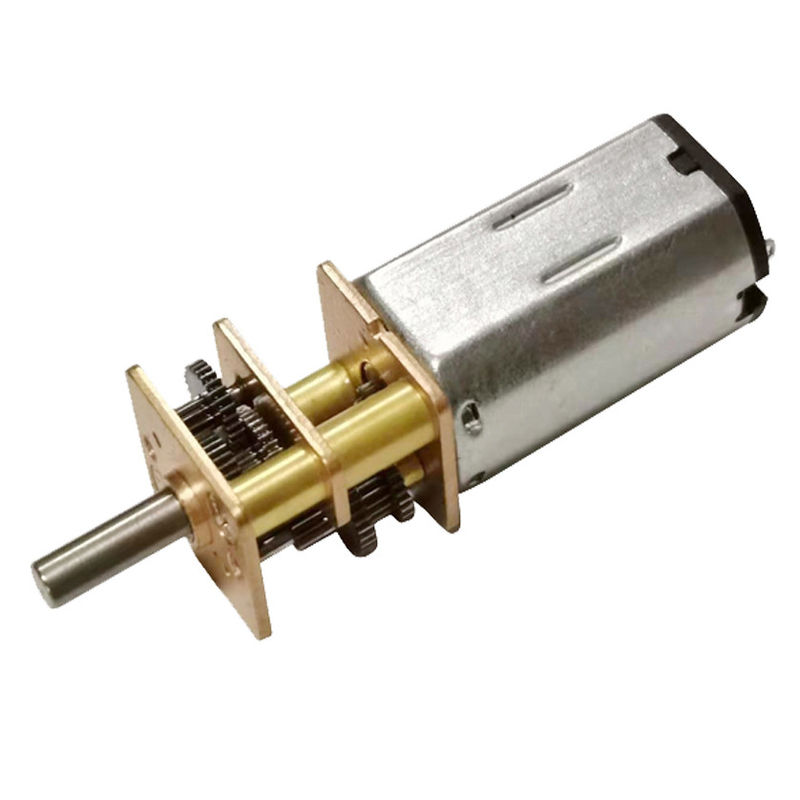

12MM Metal Gearbox dc gear motor 1.5/24v 45rpm 0.7 Watt For Smart electronic door lock
Motor Type: DC Brush motor
Item NO. N30 motor
Voltage 1.5V~24V
Speed 1500~25000RPM
Working Current 2A Max

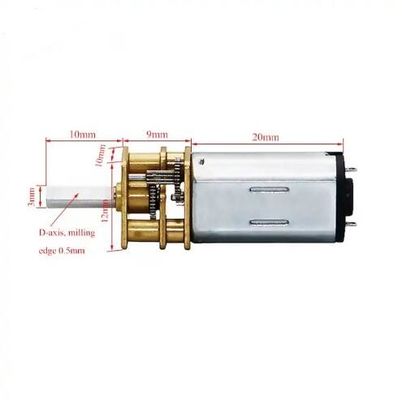

Body Diameter:12MM
Quick Detail:
· Metal housing
· DC1.5V~12V Voltage options
· Max torque 3kg,cm
· Connector type customized
· Long lifetime
· CE, ROHS compliant
· 1 Year Warranty
Specification:
| Item | Dc brush gear motor DGA12-N30 |
| Size | Diameter12mm |
| Working Voltage | 1.5V~12V |
| Speed | 5~3000RPM |
| Torque | 0.1-3kg.cm |
| Working Current | 45mA Max |
| Typical Current | 65mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
