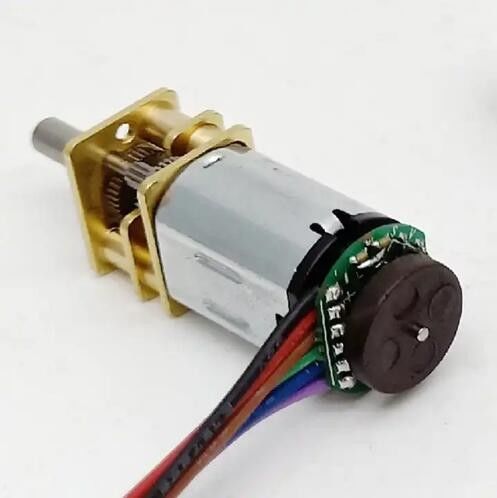

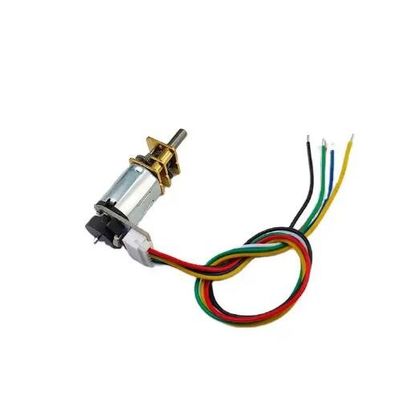

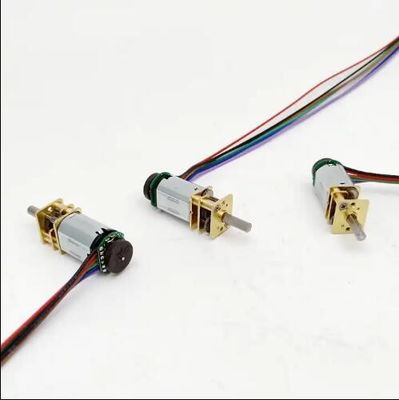

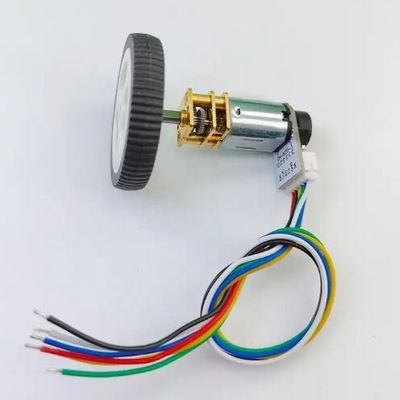

12mm DC Micro Gear Motor Pulse Houle Precision Encoder Small Deceleration DC Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DGA12-N20-EN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD4.85-6.85pcs |
| Packaging Details: | carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs30days |
|
Detail Information |
|||
| Product Name: | Dc Gear Motor | No Load Current: | 0.1-1A |
|---|---|---|---|
| No Load Speed: | 5-1000RPM | Noise: | <=50dB |
| Output Power: | 1-15W | Reduction Ratio: | 1-1000 |
| Shaft Diameter: | 3mm | Shaft Length: | Customized |
| Voltage: | 3V-12V | ||
| Highlight: | 12mm DC Micro Gear Motor,Small DC Micro Gear Motor,Small Deceleration DC Motor |
||
Product Description
12mm Micro DC gear motor Pulse Houle precision encoder low speed small decelerat motor, speed, mini balance car special
Motor Type: DC Brush gear motor
Item NO. DGA12-N20
Voltage 3V~24V
Speed 15~500RPM
Working Current 2A Max
Body Diameter:12MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.The price is a little expensive.
Description:
Voltage:DC Input 1.5V,3v,4.5v, 5v,6v,7.2v,9v,12v (Can be Customized)
Power:(Can be Customized)
Speed:Variable speed from 0.5-3000rpm (Can be Customized)
Torque:Up to 2kgf.cm rated torque(Can be Customized)
Shaft:shaft Dia: 3mm ,Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)
High precision: The Hall encoder can provide high-precision position detection and speed control, which helnto accurately control the position and speed of the rotating shaft of the deceleration motor.
Specification:
| Item | Dc brush gear motor DGA12-N20-EN |
| Size | Diameter12mm |
| Working Voltage | 3V~24V |
| Speed | 15~500RPM |
| Torque | 0.3-3kg.cm |
| Working Current | 35mA Max |
| Typical Current | 45mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
