5V DC Micro Geared Stepper Motor 20mm 2 Phase 4 Wire Stepper Motor With Gearbox
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui Motor |
| Certification: | CE,ROHS |
| Model Number: | DGA20-20BY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD6.85-8.85 |
| Packaging Details: | carton |
| Delivery Time: | 15days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs30days |
|
Detail Information |
|||
| Product Name: | Dc Stepper Gear Motor | Diameter: | 20mm |
|---|---|---|---|
| Gearbox Ratio: | 1:10-488:1 | Hall Sensor: | Yes |
| Noise: | ≤45dB | Power: | 5-20W |
| Shaft Type: | Customized | Speed: | 2-1000rpm |
| Torque: | 0.1-2kg.cm | Voltage: | 3-12V |
| Highlight: | 5V Micro Geared Stepper Motor,Micro Geared Stepper Motor 20mm,Micro 2 Phase 4 Wire Stepper Motor |
||
Product Description
5v dc geared stepper motor 20mm Micro Geared Stepper Motor 2 phase 4 wire micro geared stepper motor with Gearbox
Motor Type: DC stepper gear motor
Item NO. DGA20-20BY
Voltage: 3V~24V
Speed: 2~500RPM
Working Current 0.5A Max
Body Diameter:20MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.The price is a little expensive.
Quick Detail:
Description:

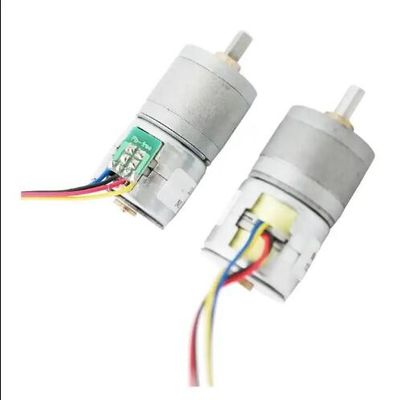

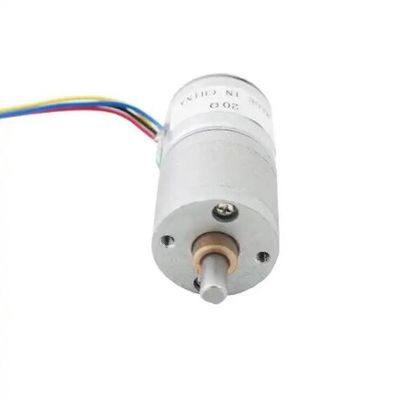

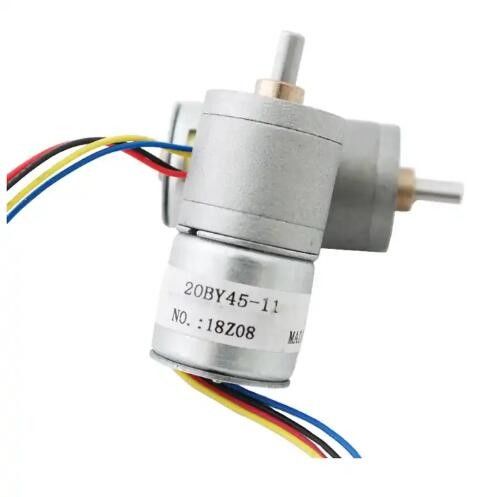

20mm micro geared stepper motor
SM20-020L-GEAR MOTOR 20mm stepper motor is composed of a miniature stepper motor with an outer diameter of 20mm and a precision metal gearbox. The deceleration ratio can be customized according to the customer's needs.
The deceleration ratio of this image is 1:195.3, This series of stepper motor deceleration ratio has:1:10 1:12.5 1:25 1:31.25 1:50 1:62.5 1:78.1 1:100 1:125 1:156.25 1:195.3 1:250 1:312.5 1:390.6 1:488.3
The basic stepping Angle of the motor is 18 degrees, which is 20 steps per lap. Combined with the deceleration effect of the reduction gearbox, the rotation Angle resolution of the final motor can reach 0.05~6 degrees.
The customer can select the speed reduction ratio according to different torque speed requirements, and at the same time, the appropriate driving frequency of the stepper motor can achieve the determined speed and torque.
Specification:
| Item | Dc stepper gear motor DGA20-20BY |
| Size | Diameter20mm |
| Working Voltage | 3V~24V |
| Speed | 2~300RPM |
| Torque | 0.3-3kg.cm |
| Working Current | 45mA Max |
| Typical Current | 65mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
