High Speed 3250 Pa 24V Brushless DC Fan Motor 26351 RPM With Long Lifespan
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | CE/UL/CCC/ROHS |
| Model Number: | BL2010F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Foam Box+ Export Carton |
| Delivery Time: | 10~25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000PCS/Month |
|
Detail Information |
|||
| Motor Type: | Brushless DC Fan Motor | Output: | 5W~30W |
|---|---|---|---|
| Voltage: | 24V | No Load Speed: | 26351RPM |
| Speed(Max Efficiency): | 19271RPM | Current(Max Efficiency): | 1.08A |
| Torque(Max Efficiency): | 85 G.CM | Suction(Max Efficiency): | 3250 Pa |
| Stall Torque: | 350.5g.cm | Stall Current: | 3.5A |
| Highlight: | High Speed Brushless DC Fan Motor,3250 Pa Brushless DC Fan Motor,High Speed 24V DC Fan Motor |
||
Product Description

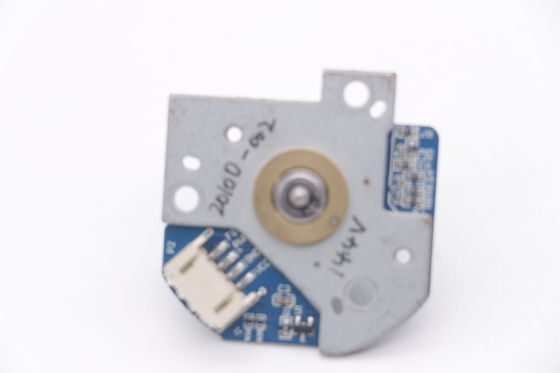

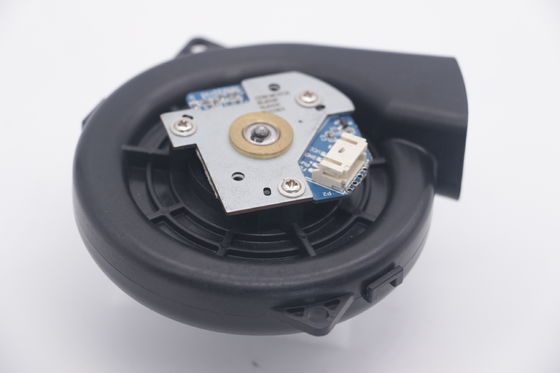

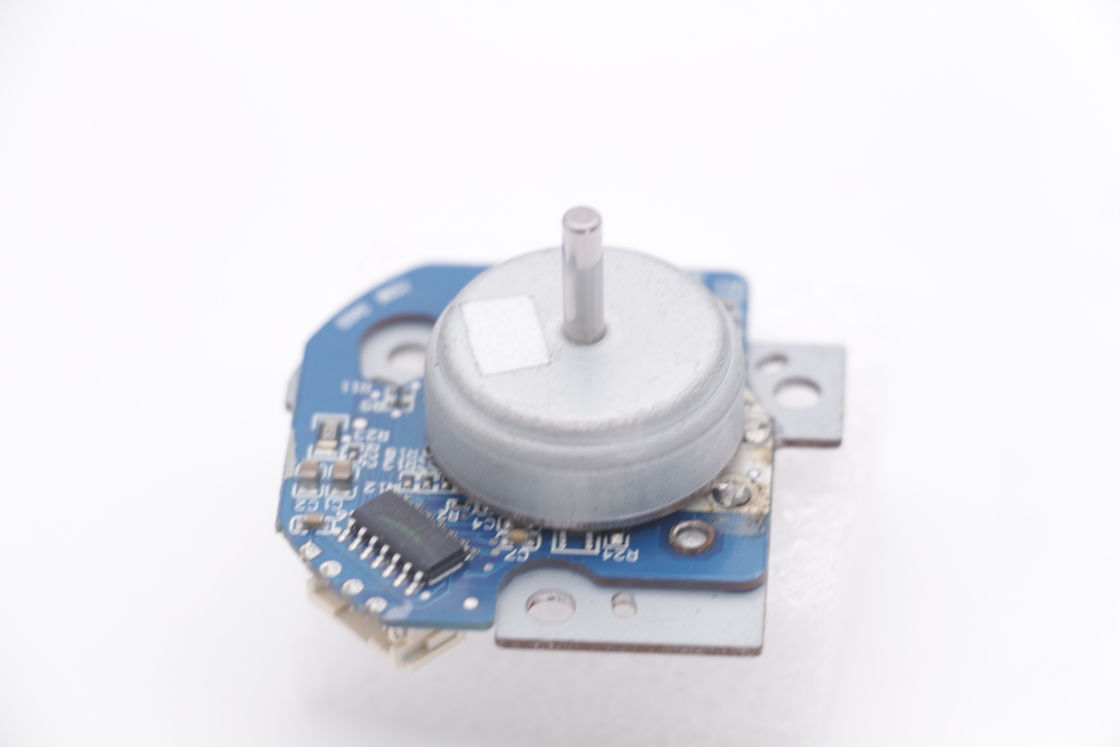

BL2010F High Speed Long Lifespan 24V 26351RPM Brushless DC Fan Motor
Quick Detail:
Brushless DC Fan Motor
Max Suction 3250 PA
High Speed 26351 RPM
Controllable motor rotation
Permanent Magnet
Ball Bearing & Oil Bearing Available
Low Noise
Long Life Span
1 Year Warranty
ODM,OEM Service Available
Typical Application For Cooling Fan
Description:
Brushless DC Fan Motor
This motor is a brushless DC fan motor. It has a maximum suction of 3250 PA and a high speed of 26351 RPM. The motor rotation can be controlled, and it has a permanent magnet. It also has ball bearings and oil bearings available, making it low noise and long-lasting. It comes with a 1-year warranty, and ODM and OEM services are available. This motor is typically used for cooling fans.
Typical Application For Cooling Fan
This brushless DC fan motor is commonly used in cooling fans. It provides efficient cooling and noise reduction, making it perfect for a wide range of applications, including electronics, industrial equipment, and more. The motor's design allows for easy installation and operation, ensuring maximum performance and longevity. The low noise and long life span of this motor make it an excellent choice for any cooling application.
Specification
| Model | BL2010F |
| Size | As the spec |
| Rated Voltage | 14.4V~24V DC |
| Speed(Max Efficiency) | 19271rpm |
| Current(Max Efficiency) | 1.08A |
| Torque(Max Efficiency) | 85g.cm |
| Suction | 3250Pa |
| Power Efficiency | 60%~80% |
| Ball Bearing or Oil Bearing | Can be optional |
| Direction of Rotation | CCW / CW |
| Noise | 55db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | 10000~20000hrs(Based on the actual operation of the motor) |
Application:
Our brushless dc motors are widely used in Vacuum cleaners, household appliances, personal care, commercial equipment, medical equipment and other occasions that require drive control.
Packaging
Packaging:Foam Box+ Export Carton
Delivery
Shipping Time:5-7 working days for samples.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
Q5: What I need to provide if I want to make a customized order ?
A: Please kindly tell us the voltages,speed,torque and overall dimension.
Q6: What if I don’t know the above data ?
A: Please tell us the usage of the product you want, we will give you professional advice.
Q7: How about the sample order ?
A: Samples are available. The extra fees due to the model type.
Q8: What’s the payment term ?
A: Payment by T/T or L/C. Sample order should be 100% prepaid. For bulk order, 50% deposit, the balance paid before shipping.
Q9: Which shipping way is available ?
A: Sample or small order by DHL,UPS,FedEx. Bulk order by Air or by Sea.
Q10: How long is the delivery time ?
A: Sample order takes 7-15 workdays. Bulk order takes 25-30 workdays.
