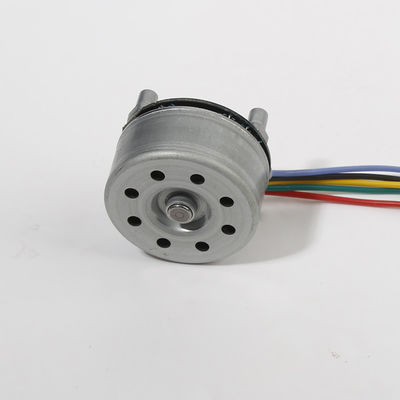

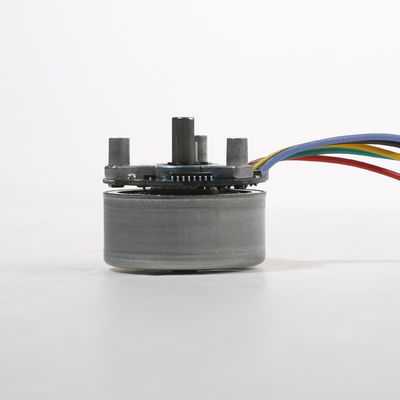

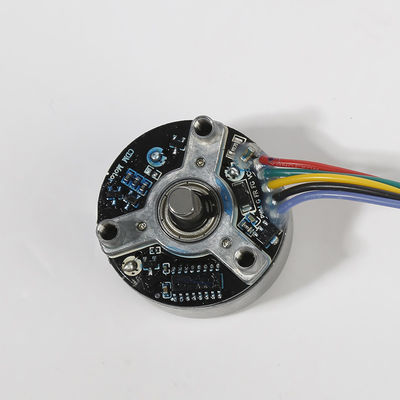

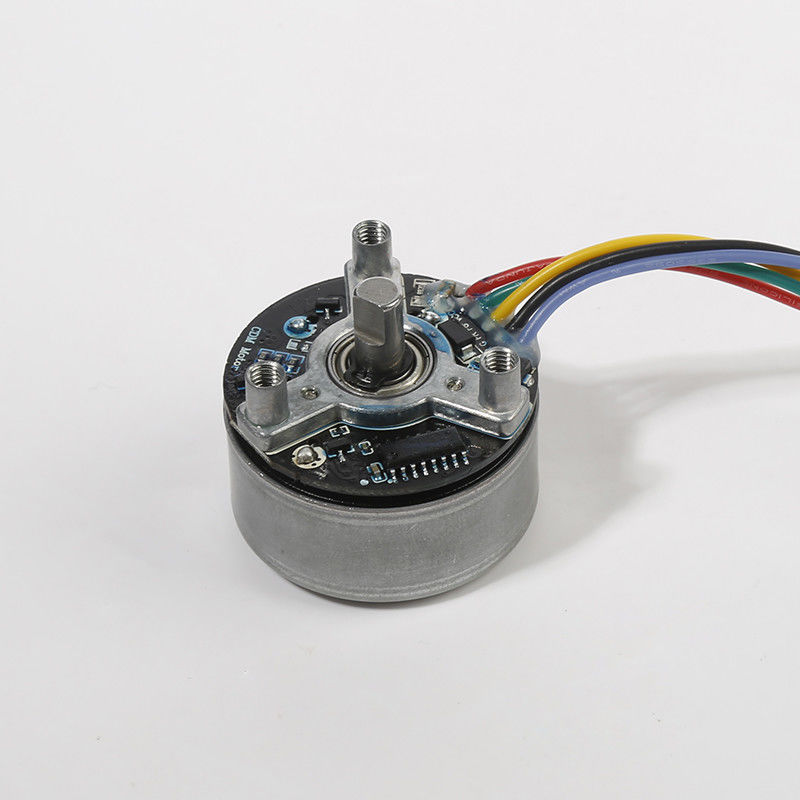

38mm 12V DC brushless motor for massage gun outrunner brushless motors
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL3825O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | 38mm Brushless DC Motor | Output: | Approx 10W~45W |
|---|---|---|---|
| Size: | Diam 38mm * L 25mm | Rated Voltage: | 24V |
| Speed(Max Efficiency): | 3230RPM(Custom As Request) | Current(Max Efficiency): | 1.4A |
| Torque(Max Efficiency): | 397g.cm | Power(Max Efficiency): | 26W |
| Stall Torque: | 2700g.cm | Typical Application: | Fascia Gun |
Product Description
38mm 12V DC brushless motor for massage gun outrunner brushless motors
Industry-specific Attributes:
Speed (RPM) 3400 RPM
Continuous current rating of 0.9A to 1.4 A
Efficiency level between 65% and 85%
Quick Detail:
Outer Rotor Brushless Motors
High Efficiency
Long Life Span
Low Noise
12V ~ 24V Rated Voltage
Motor Rotation(CW/CCW)
Permanent Magnet Construction
Ball Bearing or Oil Bearing Optional
1 Year Warranty
ODM,OEM Service
Application For Massage Gun
Specification
| Model | DBL3825O |
| Size | Diam 38mm * L 25mm |
| Rated Voltage | 12V ~ 24V DC |
| Speed(At the maximum efficiency) | 3230rpm |
| Torque(At the maximum efficiency) | 397g.cm |
| Stall Torque | 2700g.cm |
| Shaft Diameter | 6mm |
| Shaft Shape | D-Cut(Or customized) |
| Ball Bearing or Oil Bearing | Can be customized |
| Efficiency | 65~85% |
| Noise | 30db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | To be estimated as your data details |
Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW / CCW |
| 4 | GND |
| 5 | PWM |
Features of Outer Rotor Brushless DC Motor
Outer rotor brushless motors offer high efficiency, long life span, and low noise operation, making them an excellent choice for various applications, including massage guns. These motors are designed with a permanent magnet construction, which provides superior performance and durability.
The rated voltage for these motors ranges from 12V to 24V, allowing for flexibility in power supply options. Additionally, the motor rotation can be controlled to rotate in either clockwise (CW) or counterclockwise (CCW) directions, depending on the specific requirements of the application.
Ball bearing or oil bearing options are available for these motors, providing additional support and stability during operation. This ensures smooth and reliable performance over an extended period of time.
These outer rotor brushless motors come with a 1-year warranty, giving you peace of mind and confidence in your purchase. ODM and OEM services are also offered, allowing for customization and integration into specific massage gun designs.
Whether you're looking to upgrade an existing massage gun or develop a new product, these outer rotor brushless motors provide the performance and reliability you need to deliver a superior user experience.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box/EPE+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
