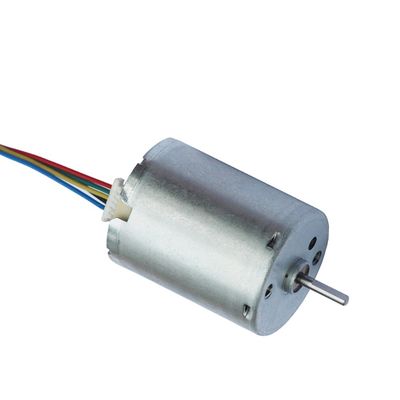

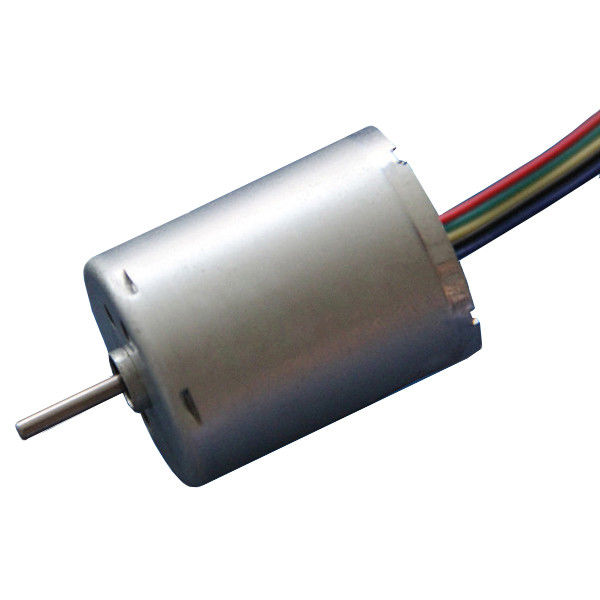

Internal Drive 12V 6000 Rpm DC Motor 24mm Brushless BLDC Motor PWM FG Control
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL2430I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | Inner Rotor Brushless Motor | Efficiency: | 65-85% |
|---|---|---|---|
| Life Span: | 5000~20000h | Noise: | 30~60dB (Based On The Speed Of Motor) |
| Ball Bearing Or Oil Bearing: | Optional | Size: | Diam 24mm * H 30mm |
| Threaded Hole: | 6-M3 X 0.5 | Rated Voltage: | 9V-24V (Customized) |
| Torque: | 40~70g.cm (Customized) | Speed: | 5000-10000rpm (Customized) |
| Power: | 1~8W (Customized) | Rotation: | CW/CCW (Customized) |
| Highlight: | 12V 6000 Rpm DC Motor 24mm,12V 6000 Rpm DC Motor BLDC,24mm Brushless BLDC Motor |
||
Product Description
Internal Drive High Quality PWM FG Control Φ24mm 12V 6000rpm DC Brushless Motor BLDC Motor
Specification
| Model | DBL2430I |
| Size | Diam 24mm * H 30mm |
| Rated Voltage | 9V~24V DC (Customized) |
| Speed | 5000rpm~10000rpm (suggested) |
| Rated Torque | 40~70 g.cm |
| Power | 1~8W (Max Efficiency) |
| Shaft Diameter | 2mm |
| Power Efficiency | 65~85% |
| Ball Bearing or Oil Bearing | Optional |
| Direction of Rotation | CCW / CW |
| Noise | 30~60db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | 5000~20000hrs(Based on the actual operation of the motor) |
Quick Detail:
Inner Rotor BLDC Motor
Rated Voltage Range 9V~24V
Long Life Span 5000~20000 Hours
Internal Driver
PWM FG Control
Permanent Magnet
Ball Bearing & Oil Bearing Options Available
Low Noise
1 Year Warranty
ODM,OEM Available
Features of Inner Rotor BLDC Motor
This is an inner rotor BLDC motor. It has a rated voltage range of 9V to 24V, allowing it to be used in a wide range of applications. The motor has a long lifespan of 5000 to 20000 hours, ensuring reliable operation over time. It comes with an internal driver, which simplifies installation and operation. The motor also features PWM FG control, allowing for precise speed regulation and motor monitoring. The motor uses permanent magnets to generate torque and has a low noise level, ensuring quiet operation. It is available with ball bearing or oil bearing options for added stability and durability.
Additionally, the motor comes with a 1-year warranty and provides ODM and OEM services to meet customer needs. This motor is suitable for various applications, including home appliances, business equipment, medical apparatus, and more.
Application:
The Brushless dc motors are widely used in various fields, including power tools, household appliances, industrial applications, electric vehicles, aerospace, and medical equipment. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:5-7 working days for samples.
Shipping Channel:We need to check it with our agents or delivery to your agent in China
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
