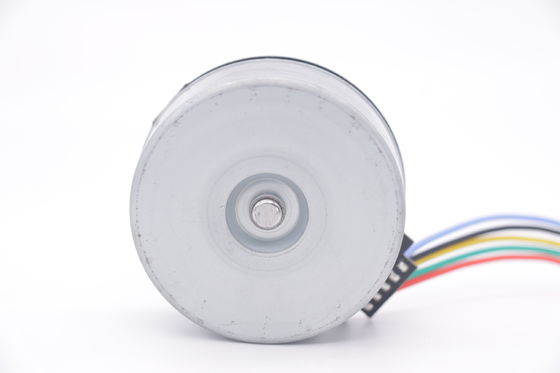

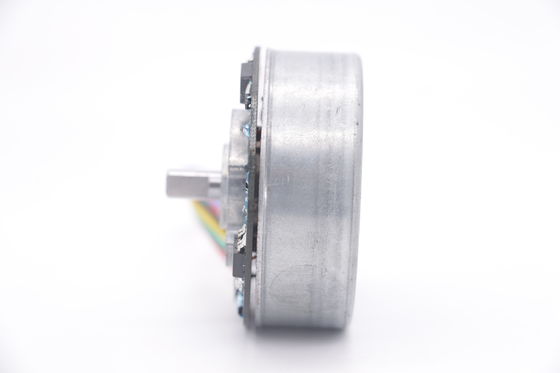

DBL5520 Outer Rotor Brushless Motor 2400 RPM Low Speed High Torque BLDC Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL5520O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | 8USD/PCS~12USD/PCS |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 200,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | Brushless DC Motor | Output: | Approx 10W~80W |
|---|---|---|---|
| Efficiency: | 65%~85% | Type: | Outer Rotor |
| Voltage Operating Range: | DC 8V-16V , 8V~26V | Speed(At Maximum Efficiency): | 2400RPM(as Customers' Request) |
| Torque(At Maximum Efficiency): | 738.5g.cm | Continuous Current: | 0.9A-1.7A |
| Input Power(At Maximum Efficiency): | 18W | Application: | Home Appliance, Cosmetic Instrument, Smart Home, Massage Gun |
| Highlight: | Outer Rotor Brushless Motor 2400 RPM,5520 Outer Rotor Brushless Motor,Low Speed High Torque BLDC Motor |
||
Product Description
DBL5520 High Torque Low Speed BLDC Motor Outer Rotor Brushless Motor For Fascial gun
Industry-specific Attributes:
Low Speed (RPM) 2000~3000 RPM
Continuous Current Between 0.9A to 1.7A
Efficiency Between 65% to 85%
Quick Detail:
Fascial Gun Brushless DC Motor
High Efficiency 65%~85%
Output (At maximum efficiency is 18W)
Low Speed 2000~3000 RPM
Voltage Operating Range 8V~16V 8V~26V
Stall Torque 5473g.cm
Weight 220g
1 Year Warranty
Typical Application For Fascial gun
Data details can be customized as customers' request
Specification
| Model | DBL5520O |
| Size | Diam 55mm * L 20mm |
| Voltage | 8V~26V |
| Load Speed | 2400 RPM |
| Torque(At the maximum efficiency) | 738.5g.cm |
| Stall Torque | 5473g.cm |
| Shaft Diameter | 6mm |
| Efficiency | 65~85% |
| Noise | 30db |
| Working Temperature | -10℃ ～ +80℃(25℃best) |
| Life span | To be estimated as the data details |

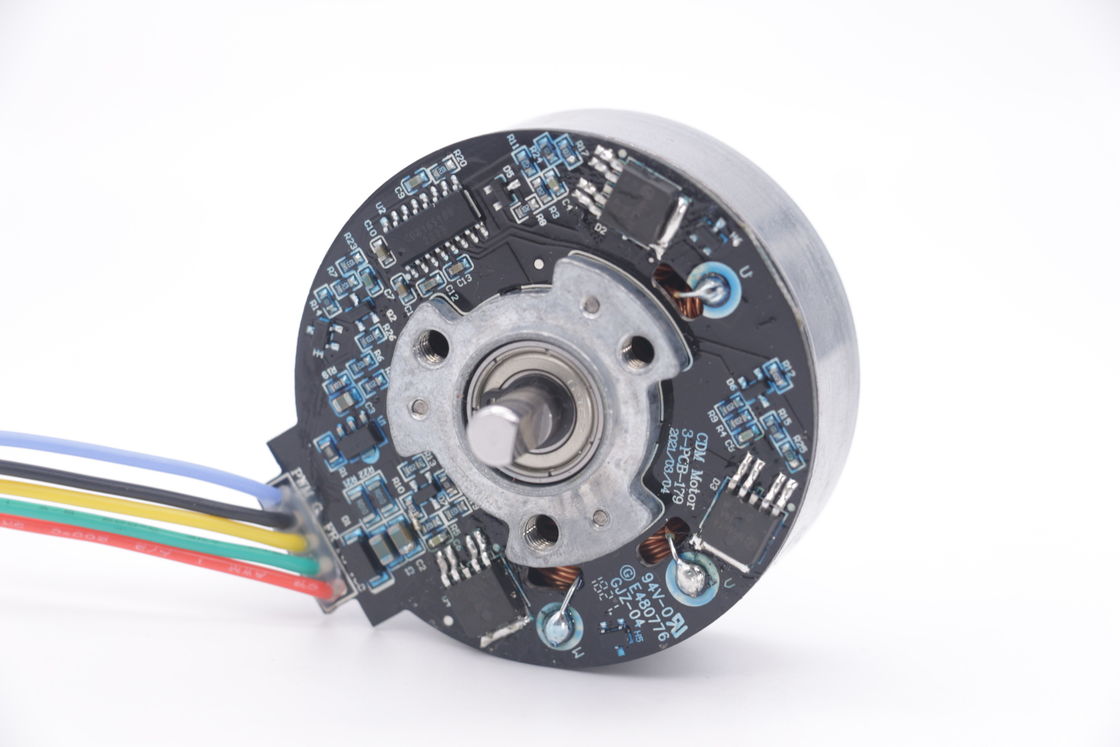

Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW / CCW |
| 4 | GND |
| 5 | PWM |
| 6 | BRAKE |
Features of Fascial gun brushless DC motor
Fascial gun brushless DC motor is a kind of high-efficiency motor, which can achieve the maximum efficiency of 65% to 85%. The output power at maximum efficiency is 18W. The low speed is between 2000 and 3000 RPM, and the voltage operating range is between 8V and 16V or between 8V and 26V. The maximum torque at stall is 5473g.cm, and the weight is about 220g. It comes with a one-year warranty.
The fascial gun brushless DC motor is typically used for high-precision machine tools, servo systems, brushless DC fans, UPS, energy storage power stations, power tool charging devices, DC grinders, small UAVs, small unmanned vehicles, small electric vehicles and other fields.
Data details can be customized according to customers' requirements.
More Brushless DC Motors
Application:
The brushless dc motor are widely used in various fields, including Home Appliance, Cosmetic Instrument, Smart Home, Fascial Gun,Medical Equipment,etc.
BLDC motors are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
