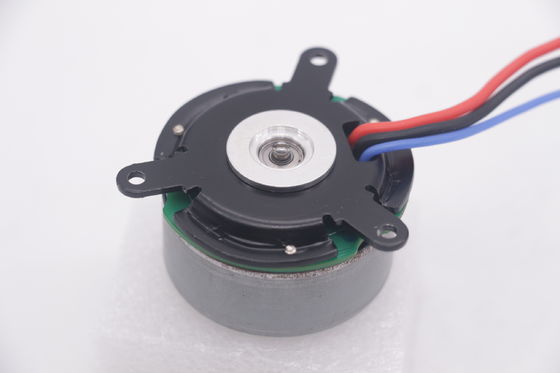

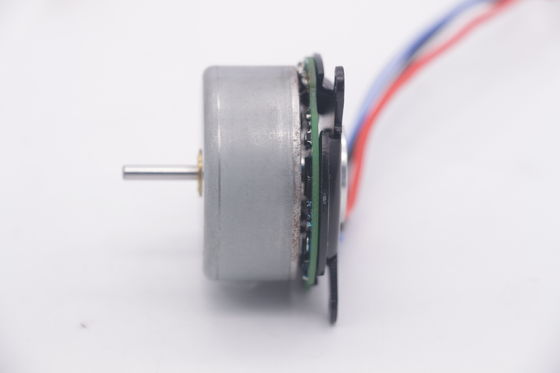

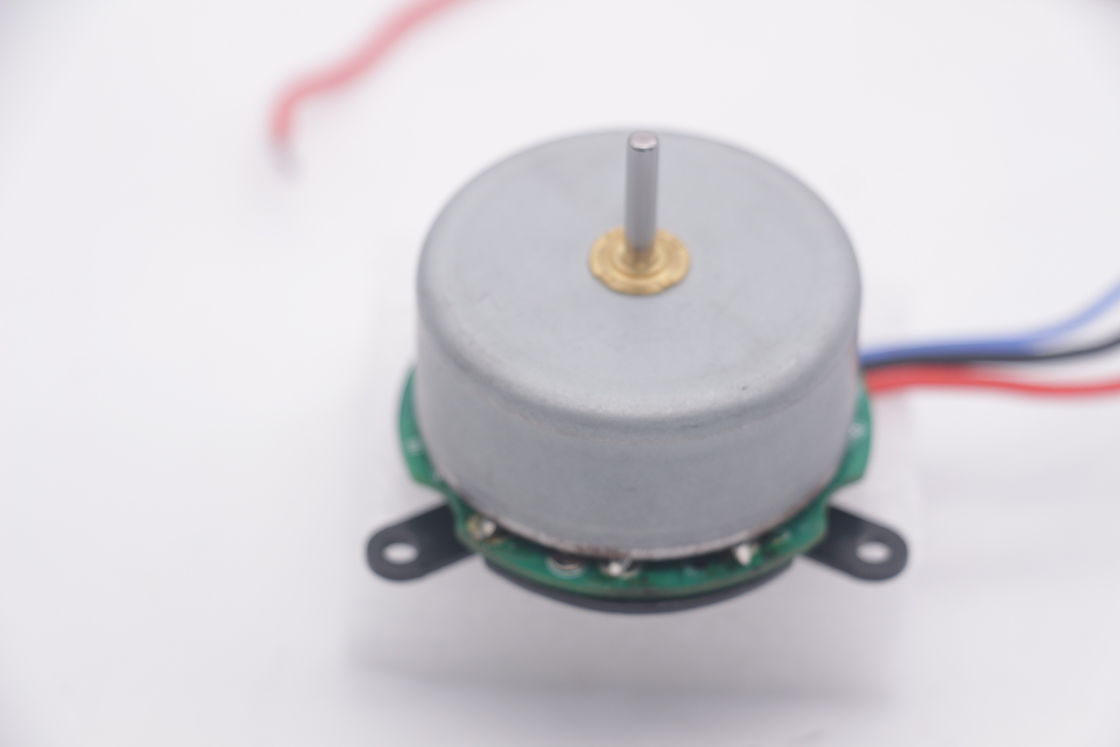

High Speed Outrunner Brushless DC Motor 24V 90W 27000 rpm For Vancuum Cleaner
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL4225O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 9.5USD/PCS~12.5USD/PCS |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 200,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | Brushless DC Motor | Output: | 10W~180W |
|---|---|---|---|
| Efficiency: | 65%~85% | Rotor Type: | Outrunner |
| Warranty: | 1 Year | Rated Voltage: | 12V 24V |
| Speed(At Maximum Efficiency): | 27000RPM(Custom As Request) | Torque(At Maximum Efficiency): | 333.6g.cm |
| Continuous Current: | 2A-4.6A | Input Power(At Maximum Efficiency): | 90.8W |
| Highlight: | Brushless DC Motor 90W,Brushless DC Motor 27000 Rpm,Brushless DC Outrunner Motor |
||
Product Description
DBL4225 High Speed Outrunner 27000rpm Brushless DC Motor 24V 90W For Vancuum Cleaner
Industry-specific Attributes:
High Speed (RPM) 27000 RPM
Continuous Current Between 2A to 4.6A
Efficiency Between 65% to 85%
Quick Detail:
Outrunner Brushless DC Motor
High Efficiency 65%~85%
High Power (Input power at maximum efficiency is 90W)
High Speed 27000 RPM
Voltage Range 8V~26V
Torque 17g.cm ~ 334g.cm
Permanent Magnet Construction
1 Year Warranty
Typical Application For Vancuum Cleaner
All data details can be customized as request
Specification
| Model | DBL4225O |
| Size | Diam 42mm * L 25mm |
| Rated Voltage | 8V~26V |
| Load Speed | 10000~26000 RPM |
| Torque(At the maximum efficiency) | 333.6g.cm |
| Stall Torque | 3335.9g.cm |
| Shaft Diameter | 3mm |
| Efficiency | 65~85% |
| Noise | 40~60db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | To be estimated as your data details |
Motor Terminations
| No. | Pin Arrangement |
| 1 | PWM |
| 2 | FG |
| 3 | VCC |
| 4 | GND |
Features of Outrunner Brushless DC Motor
Outrunner brushless DC motors are high-efficiency motors that convert electrical energy into mechanical energy with an efficiency range of 65% to 85%. They are also high-power motors that require low input power for maximum efficiency, typically 90W. The high speed of these motors, up to 27000 RPM, makes them suitable for various high-speed applications. The voltage range of these motors extends from 8V to 26V, allowing for easy adaptation to different power sources. The torque generated by these motors ranges from 17g.cm to 334g.cm, making them suitable for various torque-demanding applications. The construction of these motors involves permanent magnets, which provide high torque and high efficiency.
Additionally, these motors come with a one-year warranty, giving peace of mind to customers who purchase them. Finally, the typical application for outrunner brushless DC motors is in vacuum cleaners, but they can also be customized according to specific requirements.
Application:
The Brushless dc motors are widely used in various fields, including Home Appliance, Cosmetic Instrument, Smart Home, Fascial Gun,Medical Equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
