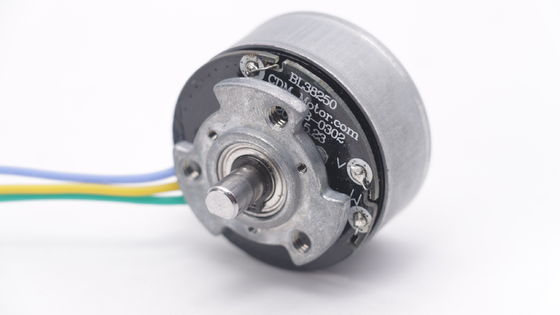

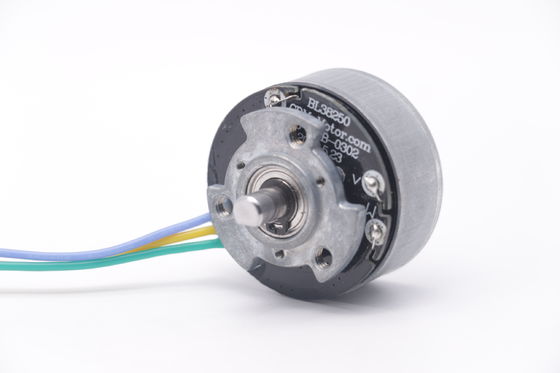

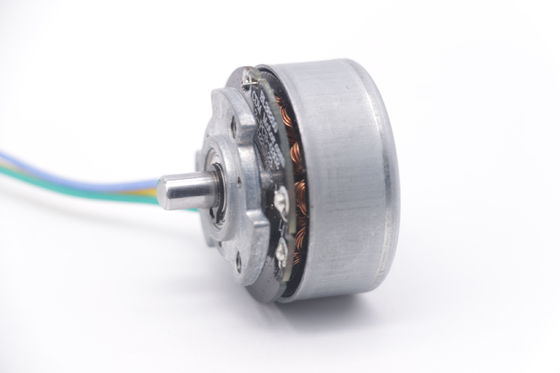

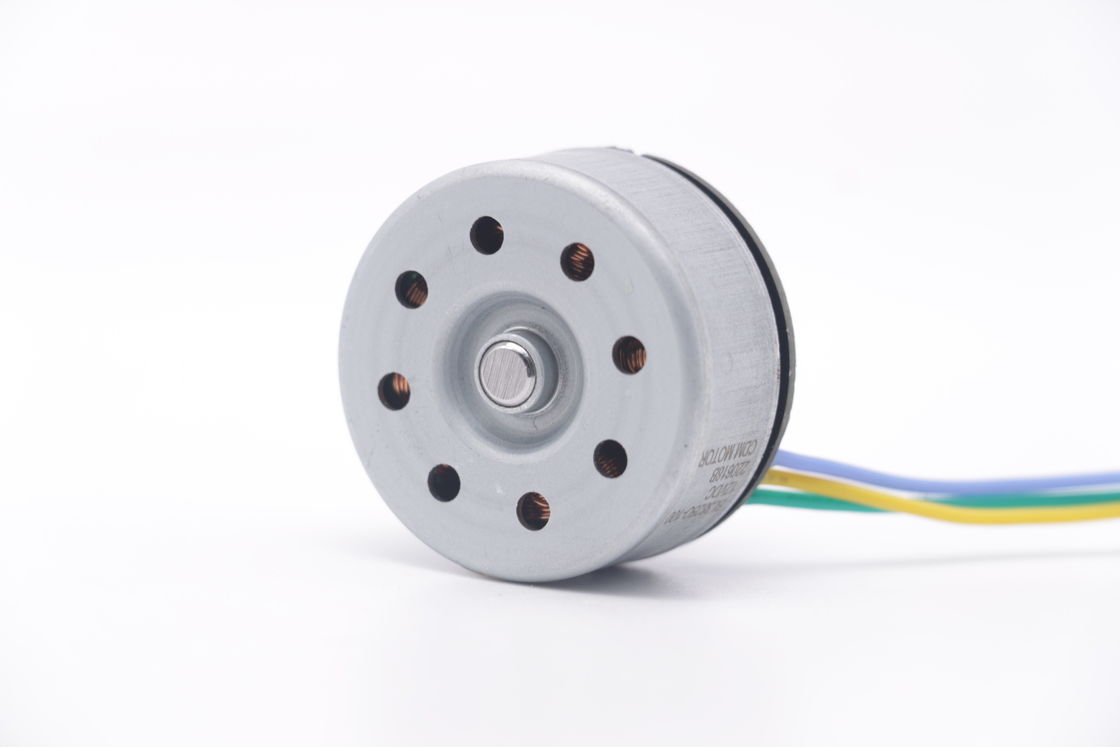

DBL3825 12V 24V BLDC Motor High Torque Fascial Gun Mini DC Brushless Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL3825O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | Brushless DC Motor | Output: | Approx 10W~45W |
|---|---|---|---|
| Efficiency: | 80% | Size: | Diam 38mm * L 25mm |
| Construction: | Permanent Magnet | Typical Application: | Fascia Gun |
| Rated Voltage: | 24V | Torque: | 490g.cm |
| Speed: | 3400RPM(Custom As Request) | Power(At Maximum Efficiency): | 40W |
| Highlight: | 12V BLDC Motor High Torque,24V BLDC Motor High Torque,Fascial Gun Mini DC Brushless Motor |
||
Product Description
DBL3825 12V 24V DC Fascia Gun BLDC Motor Health Care Massage Application High Torque Brushless DC mini Motor
Industry-specific Attributes:
Speed (RPM) 3400 RPM
Continuous current rating of 0.9A to 1.4 A
Efficiency level between 65% and 85%
Quick Detail:
Outer Rotor Brushless BLDC Motor
Built-in Driver
High Efficiency
Long Life Span
Low Noise
Adjustable Rated Voltage
Controllable Motor Rotation(CW/CCW)
Permanent Magnet Construction
Ball Bearing or Oil Bearing Optional
1 Year Warranty
ODM,OEM Service
Specification
| Model | DBL3825O |
| Size | Diam 38mm * L 25mm |
| Rated Voltage | 8V~26V DC (Customized) |
| Speed(At the maximum efficiency) | 3400rpm |
| Torque(At the maximum efficiency) | 490g.cm |
| Stall Torque | 4.2kg.cm |
| Shaft Diameter | 6mm |
| Shaft Shape | D-Cut(Or customized) |
| Ball Bearing or Oil Bearing | Can be customized |
| Efficiency | 65~85% |
| Noise | 30db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | To be estimated as your data details |
Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW / CCW |
| 4 | GND |
| 5 | PWM |
Features of Outer Rotor Brushless BLDC Motor
This outer rotor brushless BLDC motor features a built-in driver for simple installation and operation. It has a high efficiency design, making it suitable for various applications that require high performance and energy efficiency. The motor also has a long lifespan and low noise output, ensuring continuous operation and quiet operation in noisy environments. The rated voltage of the motor is adjustable, allowing you to customize the performance for specific applications. The motor rotation can be controlled in both clockwise (CW) and counterclockwise (CCW) directions, providing flexible operation. The motor has a permanent magnet construction for maximum torque output and ball bearing or oil bearing options ensure smooth operation and low vibration.
It also includes a 1-year warranty and is capable of original design manufacturer (ODM) and original equipment manufacturer (OEM) services, making it easy to integrate into your system or customize to your specific needs.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box/EPE+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are the manufacturer with 16 years’ experiences.
Q2: What’s your main products ?
A: Dia12-46mm dc motor,dc gear motor,brushless dc motor,planetary gear motor,high voltage dc motor,coreless motor.
Q3: What’s the main usage of your products ?
A: Our products are widely used in aviation,tools,medical,robotics,automation,Security doors,DMS,and other fields.
Q4: Do you accept OEM/ODM ?
A: We only accept ODM. Our R&D team have six experienced engineers. Tell us your needs, we can make it.
Q5: What I need to provide if I want to make a customized order ?
A: Please kindly tell us the voltages,speed,torque and overall dimension.
Q6: What if I don’t know the above data ?
A: Please tell us the usage of the product you want, we will give you professional advice.
Q7: How about the sample order ?
A: Samples are available. The extra fees due to the model type.
Q8: What’s the payment term ?
A: Payment by T/T or L/C, other payment methods are also acceptable . Sample order should be 100% prepaid. For bulk order, 50% deposit, the balance paid before shipping.
Q9: Which shipping way is available ?
A: Sample or small order by DHL,UPS,FedEx. Bulk order by Air or by Sea.
Q10: How long is the delivery time ?
A: Sample order takes 7-15 workdays. Bulk order takes 25-30 workdays.
