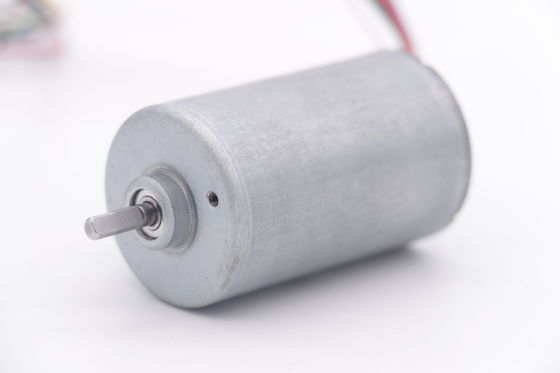

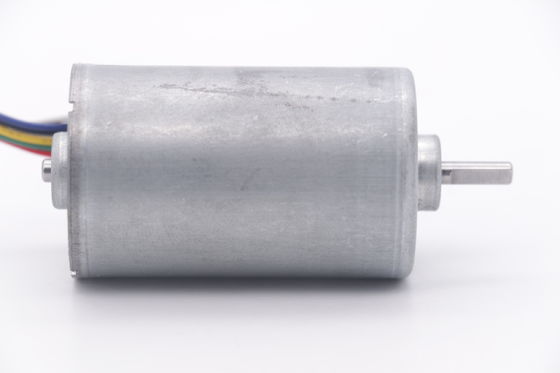

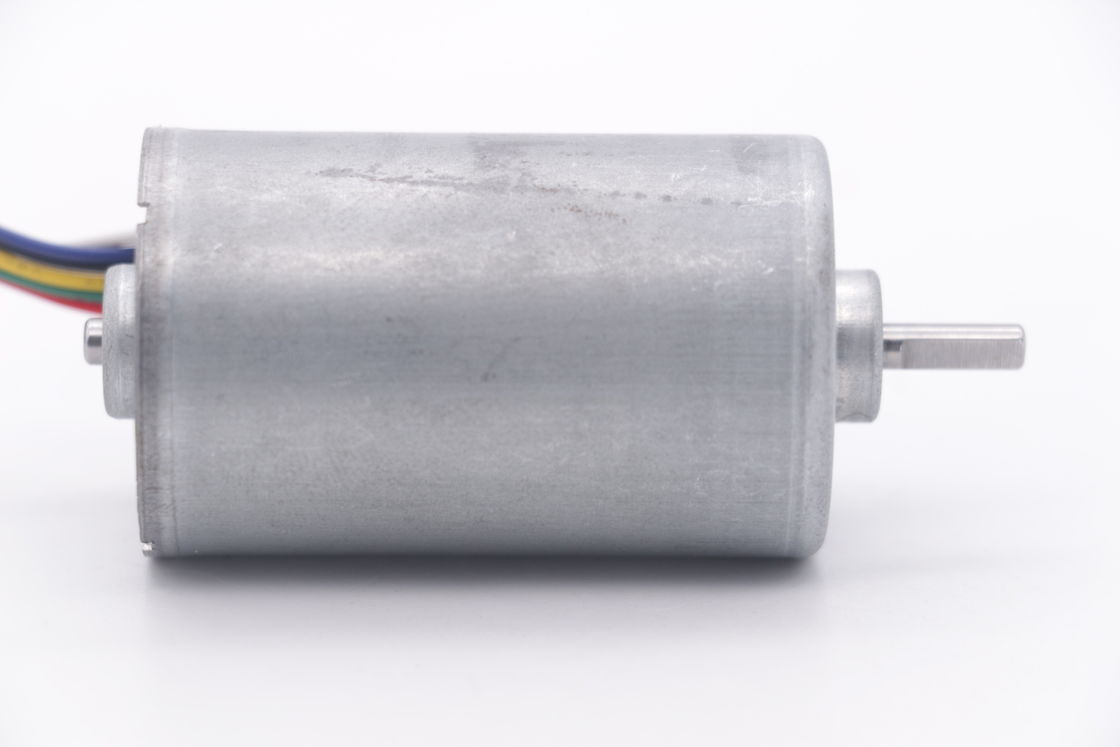

DBL3650 12V 18V 24V Brushless DC Motor 36mm BLDC Electric Motor For household appliances
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL3650I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | Brushless DC Electric Motor | Size: | Diam 36mm * L 50mm |
|---|---|---|---|
| Shaft Diameter: | 4mm | Threaded Hole: | 2-M3 |
| Noise: | 30dB (Based On The Working Situation) | Rated Voltage: | 12~24V (Customized) |
| Speed: | 6851rpm(At Maximum Efficiency) | Current: | 1.8A(At Maximum Efficiency) |
| Torque: | 395.2g.cm(At Maximum Efficiency) | Power: | 27.77W(At Maximum Efficiency) |
| Stall Torque: | 2kg.cm(At Maximum Efficiency) | Output: | Approx 5W~40W |
Product Description
DBL3650 12V 18V 24V Brushless DC Motor 36mm BLDC Electric Motor For household appliances
Quick Detail:
Brushless DC Electric Motor
Built-in Driver
Inner Rotor
Motor Terminations:6 Pins
Adjustable Rated Voltage
Controllable Motor Rotation
Custom Ball Bearing or Oil Bearing As Request
High Torque
Low Noise
Life Span 15000hrs
ODM,OEM Service
Specification
| Model | DBL3650I |
| Size | Diam 36mm * L 50mm |
| Rated Voltage | 12~24V DC (Customized) |
| Speed(At the maximum efficiency) | 6851rpm |
| Torque(At the maximum efficiency) | 395.2 g.cm |
| Stall Torque | 2079.8g.cm |
| Shaft Diameter | 4mm |
| Efficiency | 65%-85% |
| Ball Bearing or Oil Bearing | Can be customized |
| Direction of Rotation | CCW / CW |
| Noise | 30db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | 15000hrs(Up to the speed of the bldc motor & the using situation) |

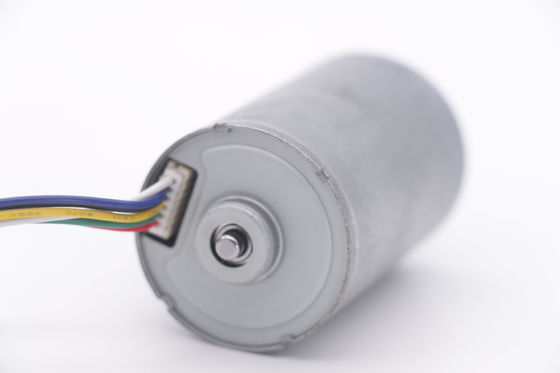

Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
| 6 | BRAKE |
Features
Brushless DC Electric Motor
-
The brushless DC electric motor features a built-in driver, inner rotor, and six motor terminals for easy installation and operation. The adjustable rated voltage allows you to fine-tune the motor's performance for specific applications. The motor's rotation can be controlled for smooth speed regulation and precise positioning.
-
This high-quality brushless DC electric motor is customizable to meet your specific needs. We offer ball bearing or oil bearing options as per your request, ensuring low noise operation and extended service life of up to 15,000 hours. Our ODM and OEM services enable you to personalize the motor with your branding or specifications for seamless integration into your system.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
