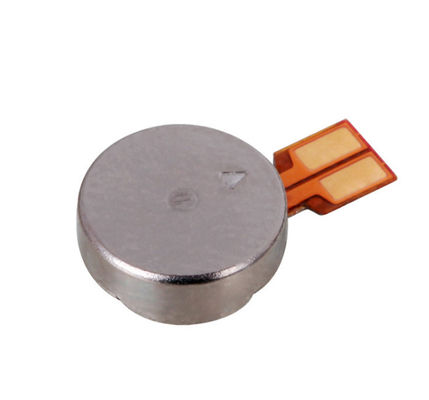

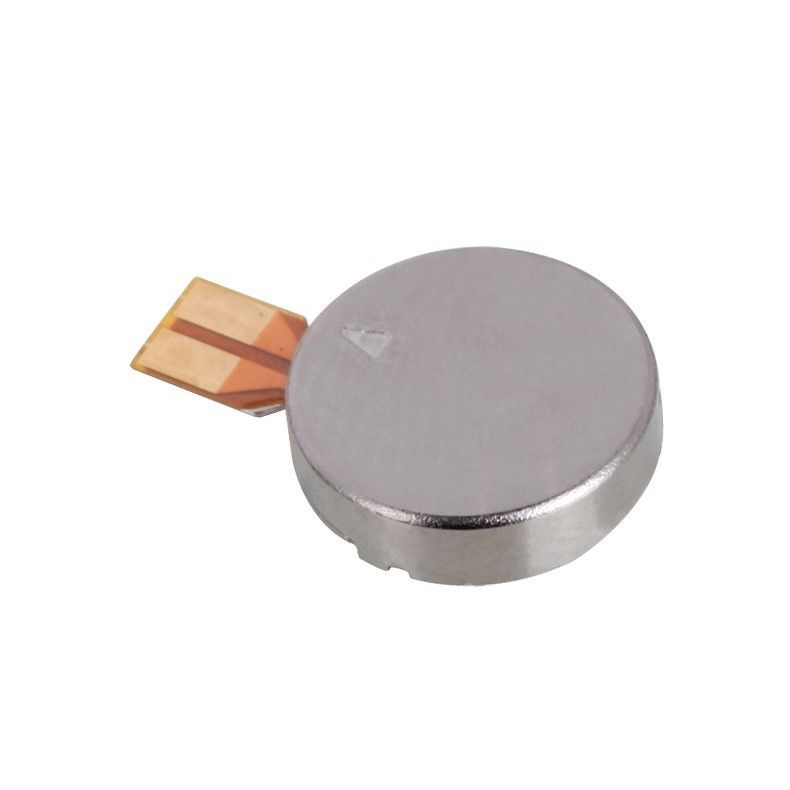

1.5V - 5V 10mm Flat Vibration DC Motor 1020 1027 1030 1034 For Wireless Device
Product Details:
| Place of Origin: | China |
| Brand Name: | DONG HUI |
| Certification: | CE,ROHS |
| Model Number: | 1020/1027/1030/1034 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | USD0.18~0.42/pc |
| Packaging Details: | 5000pcs/carton box |
| Delivery Time: | Sample 5 workdays，bulk order 15~35 workdays |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000PCS Per Month |
|
Detail Information |
|||
| Product Name: | Flat Vibration DC Motor | Motor Type: | Brush Flat Vibration DC Motor |
|---|---|---|---|
| Item NO.: | 1020/1027/1030/1034 | Voltage: | 1.5V~5.0V |
| Speed: | 10000~15000RPM | Vibration Force: | 0.7~1.0GRMS |
| Working Current: | 90mA Max | Body Diameter: | 10mm |
| Body Height: | 2.0mm/2.7mm/3.0mm/3.4mm | Connect Type: | Wire,JST/molex Connector,FPC |
| Highlight: | 10mm Vibration DC Motor,5V Vibration DC Motor,Flat Vibration Motor 1020 |
||
Product Description
1.5V~5.0V 10mm flat vibration DC motor for wireless device 1020 1027 1030 1034
Quick Detail:
· Metal housing
· DC1.5V~5.0V Voltage options
· Low current 90mA max
· high vibration force
· Connector type customized
· Long lifetime 50hours
· CE, ROHS compliant
· 1 Year Warranty
Description:
brush flat vibration dc motor.
self adhesive tape easy install
small size only 10mm dimeter with 2.0mm min height
0.7~1.0GMRS force customized
Constant working voltage could reach 5.0V.
Connector type or wire can be customized on from sample order.
Widely use for smart wireless product
Specification:
| Product Name | Vibration DC motor |
| Brush Type | Brush vibration DC Motor |
| Shape | Coin or flat type |
| Size |
Diameter 10mm Height 2.0mm/2.7mm/3.0mm/3.4mm |
| Working Voltage | 1.5V~5V customized |
| Speed | 9000~15000RPM customized |
| Vibration Force | 0.7~1.0 GRMS customized |
| Working Current | 85mA Max |
| Typical Current | 62mA |
| Rise time | 90ms Max |
| Fall time | 50ms Max |
| Lifetime | 50hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Phone,Smart watch,Massager ,electronic cigarette.
