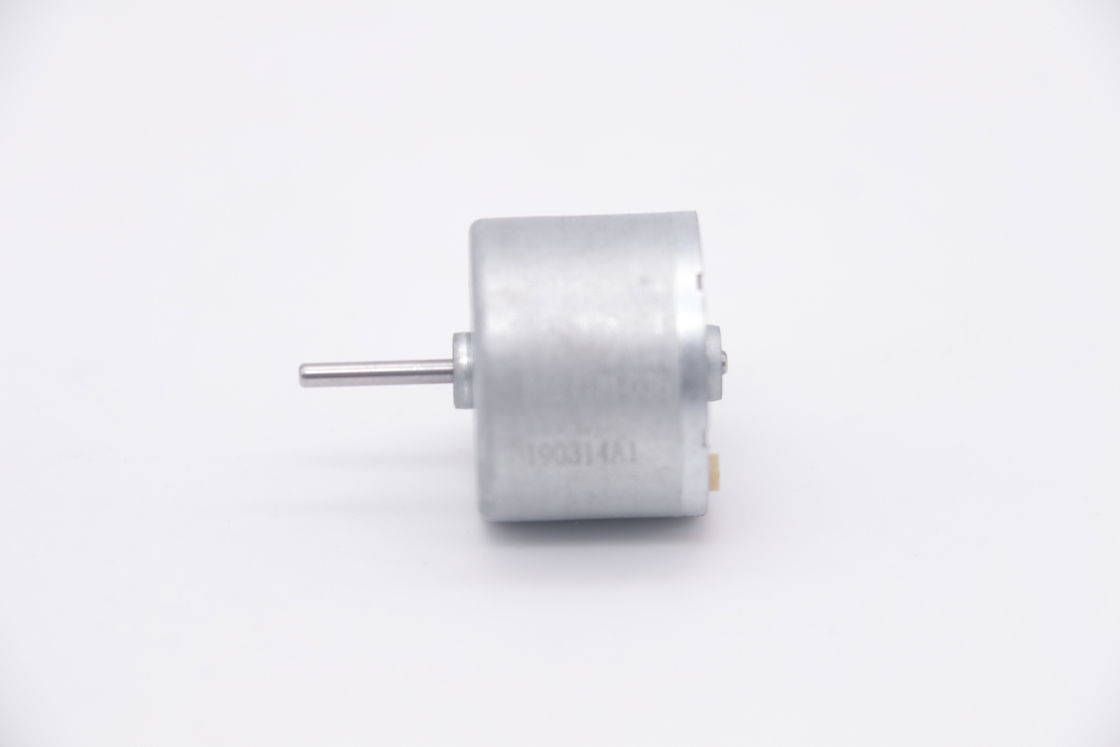

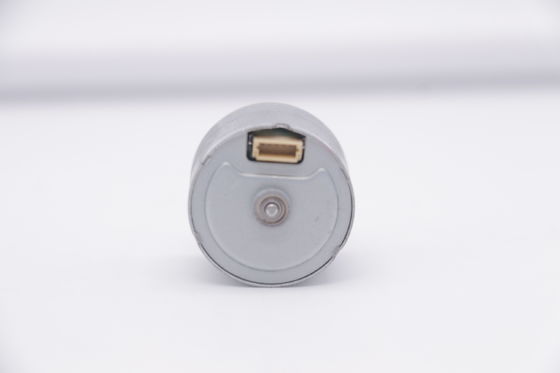

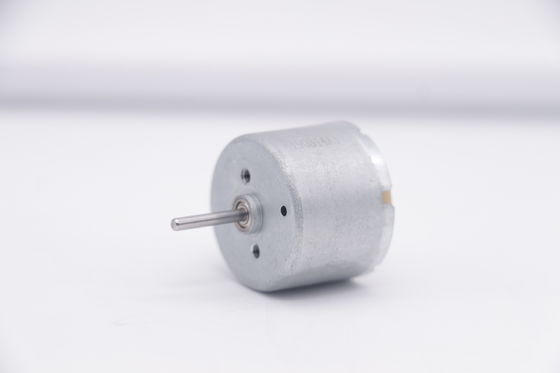

12V 24V 24mm Brushless DC Motor 8000RPM Big Torque DC Brushless Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL2418I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | Brushless BLDC Motor | Efficiency: | 80-90% |
|---|---|---|---|
| Life Span: | 3000~10000h | Noise: | 30~60dB (Based On The Speed Of Motor) |
| Ball Bearing Or Oil Bearing: | Can Be Available As Request | Size: | Diam 24mm * L 18mm |
| Threaded Hole: | 6-M2 | Voltage: | 12V-24V (Customized) |
| Torque: | 20~50g.cm (Customized) | Speed: | 3000-10000rpm (Customized) |
| Power: | 3~10W (Customized) | Rotation: | CW/CCW (Customized) |
Product Description
12V 24V 24mm Brushless DC Motor 8000RPM Big Torque DC Brushless Motor
Specification
| Model | DBL2418 |
| Size | Diam 27mm * L 17mm |
| Rated Voltage | 8V~26V DC (Customized) |
| Speed | 5000rpm~20000rpm (suggested) |
| Rated Torque | 50~150 g.cm |
| Power | 10~20W (Max Efficiency) |
| Shaft Diameter | 3mm |
| Power Efficiency | >90% |
| Ball Bearing or Oil Bearing | Can be available as customized |
| Direction of Rotation | CCW / CW |
| Noise | 60db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | 10000~20000hrs(Based on the actual operation of the motor) |
Quick Detail:
Long Life Span 5000~20000 Hours
High Torque Brushless Motor
Built-in Driver
Controllable Motor Rotation
Permanent Magnet
Ball Bearing & Oil Bearing Option Available
Low Noise
CE, RoHS Compliant
1 Year Warranty
ODM,OEM Service Available
Features:
Long Life Span 5000~20000 Hours:
This brushless motor has a long lifespan of 5000 to 20000 hours, which means it can provide stable performance for a long time. It is suitable for various applications that require long-term operation.
High Torque Brushless DC Motor:
This brushless dc motor features high torque, which means it can provide powerful driving force for various applications. It is suitable for high-load applications such as industrial equipment, construction machinery, and transportation vehicles.
Built-in Driver:
The brushless motor is equipped with an integrated driver, which means it can be easily controlled and requires less components. The driver provides accurate speed control and torque output, making it suitable for various precision applications.
Application:
The Brushless dc motors are widely used in various fields, including power tools, household appliances, industrial applications, electric vehicles, aerospace, and medical equipment. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
