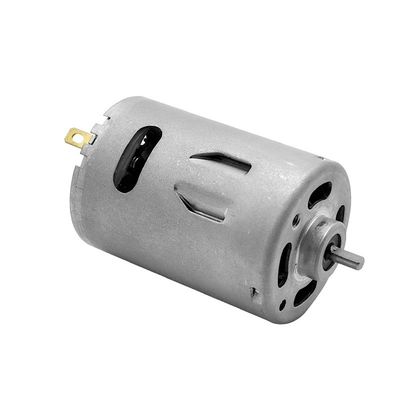

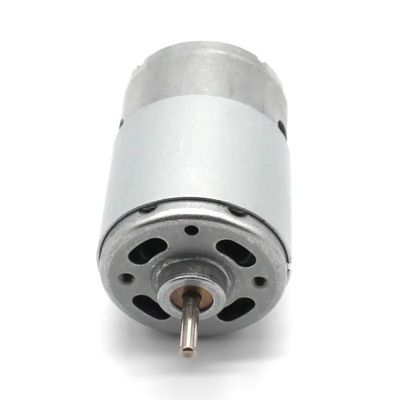

36mm Diameter DC 6v 12v 24v 4000rpm 6000rpm RS 545 Micro Carbon Brushed Motor for Vacuum Cleaner
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH DC Motor |
| Certification: | ROHS,CE |
| Model Number: | RS545 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box / EPE + Export Carton |
| Delivery Time: | 10~20 days |
| Payment Terms: | T/T,Ali Pay,Paypal,L/C,MoneyGram |
| Supply Ability: | 200000pcs/month |
|
Detail Information |
|||
| Product Name: | Micro Carbon Brush Dc Motor | Type: | DC Motor |
|---|---|---|---|
| Voltage: | 12v 24v | No Load Speed: | 7850RPM |
| Speed(Max Efficiency): | 6530rpm | Current(Max Efficiency): | 0.778A |
| Torque(Max Efficiency): | 188g.cm | Power(Max Efficiency): | 12.6W |
| Max Efficiency: | 67.5% | Stall Torque: | 1120g.cm |
Product Description
36mm Diameter DC 6v 12v 24v 4000rpm 6000rpm RS 545 Micro Carbon Brushed Motor for Vacuum Cleaner
Industry-specific Attributes:
| Speed (RPM) | 6530 RPM |
| Continuous Current | 0.778A |
| Efficiency | 67.5% |
| Data Spec,Shaft Shape & Length | Customize as request |
Good Quality RS 545 DC Motors With Oil Bearing,Without Magnetic Protection Ring
RS 545 DC Motor With Magnetic Protection Ring & Ball Bearing
Quick Detail:
Carbon Brush 545 DC Motor
High Efficiency 67.5%
Output 12.6W
Operating Voltage Range 9V~24V
Speed 6530 RPM
Continuous Current 0.778A
Stall Torque 1120g.cm
Threaded hole 2-M3x0.5
Shaft Length can be customized
Data Spec,Shaft Shape & Length customize as customers' request
Typical Application For Automotive Product(automotive water jet pump,washer),Household Appliance,Laser Printer
Specification
| Motor Type | 545 Micro DC Motor |
| Size | Diam 36mm x L 54.5mm |
| Voltage | 24V |
| Speed | 6530 RPM |
| Torque | 188g.cm |
| Stall Torque | 1120g.cm |
| Continuous Current | 0.778A |
| Shaft Diameter | 3.175mm |
| Efficiency | 67.5% |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
Features of Carbon Brush 545 DC Motor
The 36mm diameter DC motor, designed for a wide range of voltages including 6v, 12v, and 24v, offers versatility in various applications. With its ability to rotate at speeds of either 4000rpm or 6000rpm, it is a powerful choice for pumps and other mechanisms that require high-speed operation. The RS 545 Micro Carbon Brushed Motor is a precision-engineered device, featuring a carbon brushed design that ensures smoother operation and longer lifespan. This motor's compact size and efficient power output make it an excellent fit for pumps, delivering reliable performance in a variety of environments.
The RS 545 Micro Carbon Brushed Motor's durable construction and precision components contribute to its overall reliability, ensuring stable operation even under heavy loads. Its high torque output and low maintenance requirements make it a cost-effective solution for pumps and other industrial equipment. Whether used in a residential water pump or a commercial fluid transfer system, this motor's adaptability and performance make it a top choice for those seeking a dependable and efficient drive solution. With its range of voltage compatibility and adjustable speed settings, it offers users the flexibility to tailor its performance to their specific needs.
Micro Brushed DC Motors
Φ10mm: FF-M10,FF-M20,FF-M30
Φ12mm: FF-N10,FF-N20,FF-N30
Φ20mm: FF130,FF180
Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370
Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395
Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565
Φ42mm: RS750,RS755,RS770,RS775
Application:
The micro dc motor are widely used in various fields, including CD Player/Automobile CD Player,MD Player/ Recorder,Camcorder,etc.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:3 working days for samples.10-20 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
