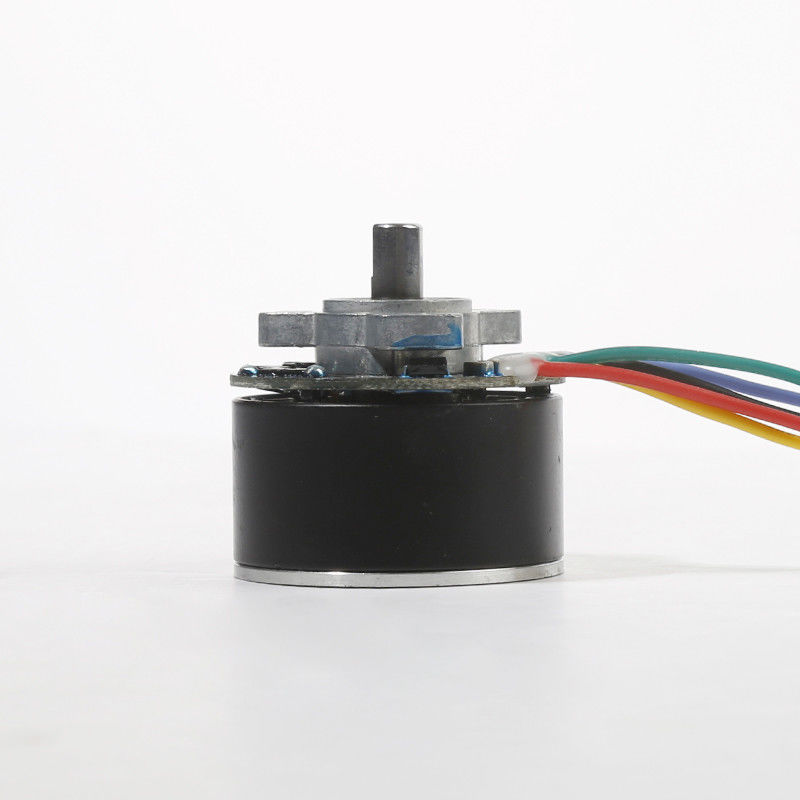

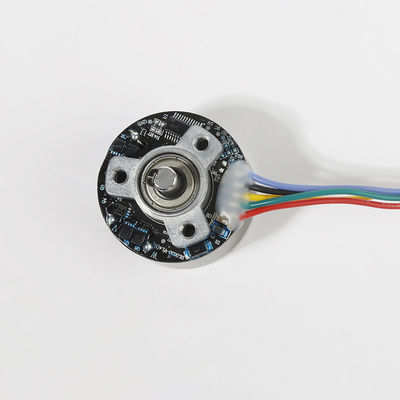

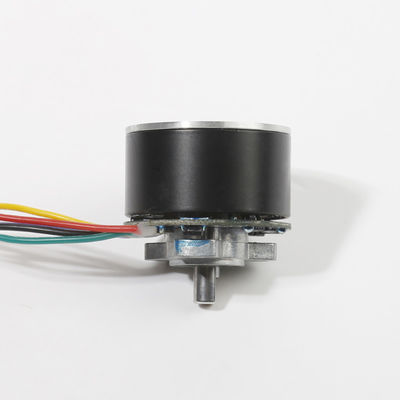

38mm Low Noise 12V Brushless DC Motor High Torque For Massage Gun
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | BL3830O(Sintered NdFeB) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | Brushless DC Motor | Output: | 10W~60W |
|---|---|---|---|
| Size: | Diam 38mm X L 30mm | Magnet Type: | Sintered NdFeB |
| Rated Voltage: | 12V | Speed: | 3340RPM(Custom As Request) |
| Torque(At Maximum Efficiency): | 654g.cm | Continuous Current(A): | 2.4A |
| Power(At Maximum Efficiency): | 32W | Stall Torque: | 4488g.cm |
| Highlight: | Low Noise Brushless DC Motor,12V Brushless DC Motor High Torque,12V Brushless Motor High Torque |
||
Product Description
38mm brushless dc motor low noise massage gun brushless 12v dc motor with high torque
Industry-specific Attributes:
| Speed(Max Efficiency) | 3340rpm |
| Current(Max Efficiency) | 2.4A |
| Efficiency | 65~85% |
Quick Detail:
BL3830O Brushless DC Motor
Magnet Type Sintered NdFeB
High Efficiency
Long Life Span
Low Noise
Controllable Motor Rotation(CW/CCW)
Ball Bearing or Oil Bearing Optional
1 Year Warranty
ODM,OEM Service
Fascial Gun Brushless Motor
Specification
| Model | DBL3830O |
| Size | Diam 38mm * L 30mm |
| Rated Voltage | 7.4V~24V DC (Customized) |
| Speed(At the maximum efficiency) | 3340rpm |
| Torque(At the maximum efficiency) | 654g.cm |
| Stall Torque | 4488g.cm |
| Shaft Diameter | 6mm |
| Shaft Shape | D-Cut(Or customized) |
| Ball Bearing or Oil Bearing | Can be customized |
| Efficiency | 65~85% |
| Noise | 30db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | To be estimated as your data details |
Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW / CCW |
| 4 | GND |
| 5 | PWM |
Features of Sintered NdFeB BLDC Motor
The BL3830O Brushless DC Motor is a high-performance motor that features a magnet type sintered NdFeB, which provides high efficiency, long life span, and low noise. It is also controllable for motor rotation in both clockwise (CW) and counterclockwise (CCW) directions. The motor can be equipped with either a ball bearing or an oil bearing, providing additional flexibility and durability.
The BL3830O Brushless DC Motor is suitable for a wide range of applications, including fascial guns, where high performance and reliability are essential. The motor is backed by a 1-year warranty and offers ODM and OEM services for customization and integration into specific applications.
Please note that the motor is not suitable for use in high-temperature or high-humidity environments. It should be used within the specified temperature range and protected from moisture and dust to ensure optimal performance and longevity.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
