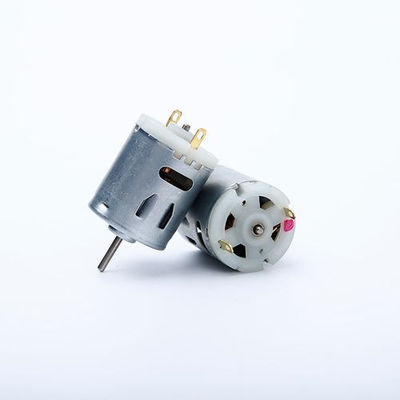

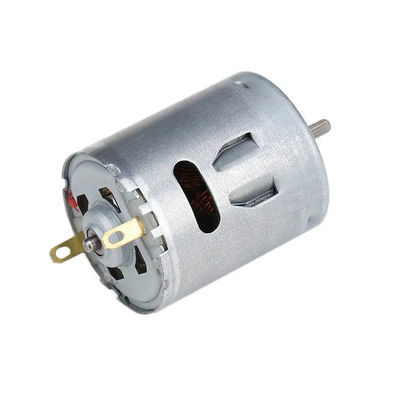

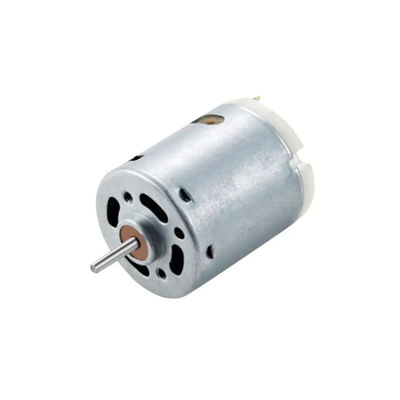

Automotive Water Jet Pump Motor 12v 24V 25500rpm 365 High Speed Micro DC Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH DC Motor |
| Certification: | ROHS,CE |
| Model Number: | RS365 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box / EPE + Export Carton |
| Delivery Time: | 10~20 days |
| Payment Terms: | T/T,Ali Pay,Paypal,L/C,MoneyGram |
| Supply Ability: | 200000pcs/month |
|
Detail Information |
|||
| Product Name: | 12v 24v Micro Dc Motor | Type: | Brush DC Motor |
|---|---|---|---|
| Voltage: | 12v 24v | No Load Speed: | 25500RPM |
| Speed(Max Efficiency): | 20930rpm | Current(Max Efficiency): | 1.83A |
| Torque(Max Efficiency): | 54.6g.cm | Power(Max Efficiency): | 11.7W |
| Max Efficiency: | 53.3% | Stall Torque: | 305g.cm |
| Highlight: | Automotive Water Jet Pump Motor,Water Jet Pump Motor 12v,365 High Speed Micro DC Motor |
||
Product Description
automotive water jet pump small 365 motor washer high speed 25500rpm 12v 24v micro dc motor
Industry-specific Attributes:
| High Speed (RPM) | 25500 RPM |
| Continuous Current | 1.83A |
| Efficiency | 53.3% |
| Data Spec,Shaft Shape & Length | Customize as request |
Quick Detail:
Carbon Brush 365 Micro DC Motor
High Efficiency 53.3%
Output 11.7W
Operating Voltage Range 6V~30V
Speed 25500 RPM
Continuous Current 1.83A
Stall Torque 305g.cm
Threaded hole 2-M2.6
Shaft Length can be customized
Data Spec,Shaft Shape & Length customize as customers' request
Typical Application For Automotive Product(automotive water jet pump,washer),Household Appliance,Laser Printer
Specification
| Motor Type | 365 Micro DC Motor |
| Size | Diam 36mm x H 28mm |
| Voltage | 12V |
| Speed | 25500 RPM |
| Torque | 54.6g.cm |
| Stall Torque | 305g.cm |
| Continuous Current | 1.83A |
| Shaft Diameter | 2.3mm |
| Efficiency | 53.3% |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
Features of Carbon Brush 365 DC Motor
Carbon Brush 365 Micro DC Motor is a high-efficiency motor with a maximum output of 11.7W. It has an operating voltage range of 6V to 30V, a speed of 25,500 RPM, a continuous current of 1.83A, and a stall torque of 305g.cm. Additionally, it features a threaded hole of M2.6, and the shaft length can be customized according to customers' requests.
365 Micro DC Motor is typically used in automotive products (automotive water jet pumps, washers), household appliances, and laser printers. These are just a few examples of the types of systems where this high-efficiency motor can be used effectively.
Micro Brushed DC Motors
Φ10mm: FF-M10,FF-M20,FF-M30
Φ12mm: FF-N10,FF-N20,FF-N30
Φ20mm: FF130,FF180
Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370
Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395
Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565
Φ42mm: RS750,RS755,RS770,RS775
Application:
The micro dc motor are widely used in various fields, including CD Player/Automobile CD Player,MD Player/ Recorder,Camcorder,etc.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:3 working days for samples.10-20 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you a manufacturer or a trade company? Which kind of motor do you produce?
A: We are a professional dc motor manufacturer since 2003, we mainly produce the DC Motor, Brushless DC Motor(Inner Rotor Brushless Motor, Outer Rotor Brushless Motor), DC Gear Motor, Planetary Gear Motor,High Voltage Motor,Coreless Motor, etc.
Q2: Does your company have ODM and OEM service?
A: Yes, of course. We can produce according to your drawing and customize Logo or packing by your request, we can also guarantee you a worry-free after sales.
Q3: Do you charge for the sample and the shipping cost?
A: Yes, we do, but we will refund you the sample fee if your batch order can be 2000 pieces or above.
Q4: How about the production period?
A: For conventional samples, 3-5 working days; For new samples, about 2 weeks. As for the mass production, it will depend on the quantity of your order.
Q5: What about your terms of payment?
A: Money Gram,T/T,Paypal,Western Union, Alipay and L/C. If the payment<=10000USD
Q6: How do you handle the shipment? And how long?
A: We recommend the Alibaba cooperated logistics Companies such as the HK UPS for samples and the small quantity, because it is safe, fast and cheap. We arrange the shipment by sea or air for the large quantity. And the DHL, FedEx,TNT, EMS are all available, if you need to ship by other methods, pls contact us in advance. As for the delivery time, usually 5-10 days;The specific will vary with the season number of customers orders.
Q7: Which trade term do you prefer?
A: EXW,FOB,CIF are all available,we can also accept other trade clauses by your request.
Q8: If I need some special materials to make a product,can you do?
A: Certainly,you only need to provide us with design drawings or samples, our professional design team can design the product according to your requirements.
Q9:Can you give me a price list?
A:All our motors are customized according to different requirements of life,noise,voltage, shaft,etc,price also vary with the annual quantities,so it is difficult for us to provide the price list. If you share your detailed requirements and annual quantities,we will see what we can offer.
