3V - 12V Brushed Micro DC Worm Gear Motor 12mm High Torque Low Speed N20
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DGA12-N20-AN-EN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD5.25-6.25 |
| Packaging Details: | carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs30days |
|
Detail Information |
|||
| Product Name: | Dc Worm Gear Motor | Diameter: | 12mm |
|---|---|---|---|
| Life: | 200H | Material: | Iron/Stainless Steel |
| Motor Type: | N20 Dc Motor | Power: | 0.1-15W |
| Reduction Ratio: | 3-1000 | Shaft Diameter: | 4mm |
| Shaft Length: | Customized | Shaft Type: | Round/Square/Flat/Hollow |
| Speed: | 5-1000RPM | Voltage: | 3-12v |
| Highlight: | Brushed DC Worm Gear Motor,Micro DC Worm Gear Motor,Brushed DC Gear Motor N20 |
||
Product Description

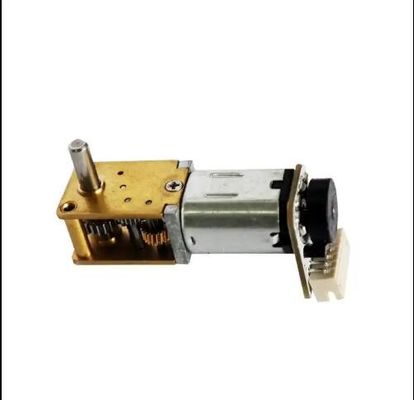

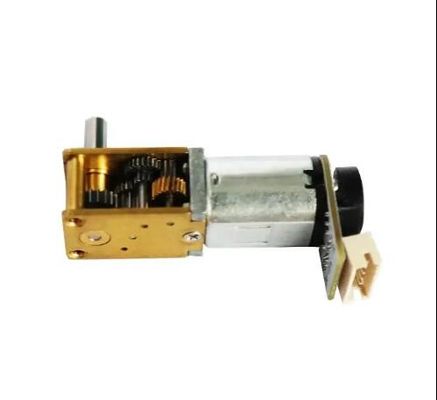

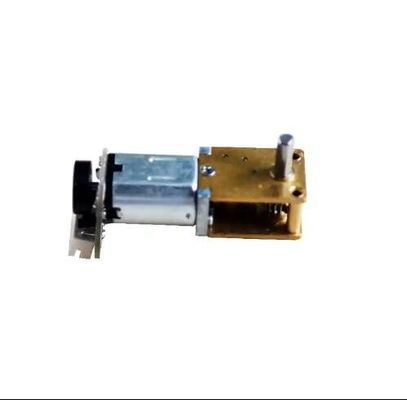

Diameter 12mm 3-12v micro dc worm gear motor High torque low speed N20 DC brushed with magnetic encoder
Motor Type: DC worm gear motor
Item NO. DGA12-N20-AN-EN
Voltage 3V~24V
Speed 5~500RPM
Working Current 0.3A Max
Body Diameter:12MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.The price is a little expensive.
Quick Detail:
· Metal housing
· DC6V~12V Voltage options
· Max torque 3Nm
· 5~500rpm high speed
· Connector type customized
· Long lifetime
· CE, ROHS compliant
· 1 Year Warranty
Description:
N20 is a DC gear motor made of precious metal brushed DC motor with precision metal reducer. The outer dimensions are oblate, outer diameter 12, flat 10, motor length 15mm, the length of the gearbox is
18MM, DC motor because of mature technology, low price, simple drive control and widely used in cameras, copiers, door locks, optical drives, precision instruments, cameras and other fields.
After supporting the gearbox, the torque is greatly increased, the speed is reduced, and it is easy to control.
For the gearbox, we have different gearbox for you to choose from, regular gearbox and worm gearbox. For regular geabox, output shaft and motor shaft are on the same direction. For worm gearbox, output shaft is vertical to motor shaft.
Our gearboxes are processed and assembled by imported machine tools to ensure that the accuracy of each gear is higher than other manufacturers in the same industry, so the gearbox is stable in transmission, low in noise, high in efficiency, reliable in structure, long in life and quality.
There is a encoder attached at the bottom of the motor. It is a magnetic encoder with hall component. A hall component can test the position of a magnet ring. Therefore, when a motor rotates a turn, there will be several signal pulses generated (Pulse number depends on magnet poles on magnet ring). In this case, the motor will provide feedback signal, and users can tell how many turns the motor rotates based on encoder signal.
Specification:
| Item | Dc worm gear motor |
| Size | Diameter12mm |
| Working Voltage | 6v |
| Speed | 15RPM |
| Torque | 1.3kg.cm |
| Working Current | 85mA Max |
| Typical Current | 62mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
