Intelligent Plastic Micro DC Gear Motor F130 3V 6V Electric TT DC Gearbox Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | donghui motor |
| Certification: | CE ROHS |
| Model Number: | DSJ01A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Price: | USD0.65-0.95pcs |
| Packaging Details: | carton |
| Delivery Time: | 20days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs20days |
|
Detail Information |
|||
| Product Name: | Dc Gear Motor | Material: | Plastic |
|---|---|---|---|
| Motor Type: | Brush DC Motor | No-Load Current: | 0.1A |
| Rated Speed: | 15-3000RPM | Rated Torque: | 0.5Kg.cm |
| Rated Voltage: | 3-12V | Shaft Length: | 10mm |
| Highlight: | Plastic Micro DC Gear Motor,Micro DC Gear Motor 3V,Electric TT DC Gearbox Motor |
||
Product Description

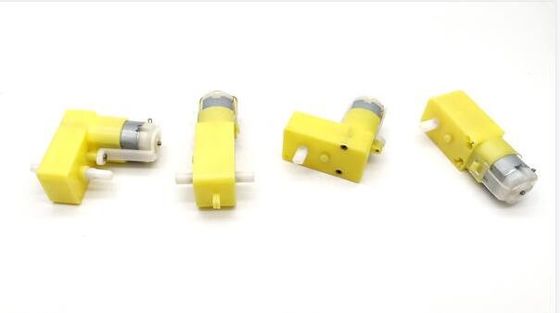

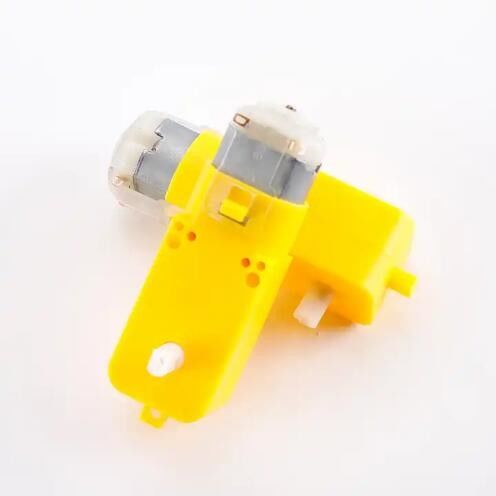

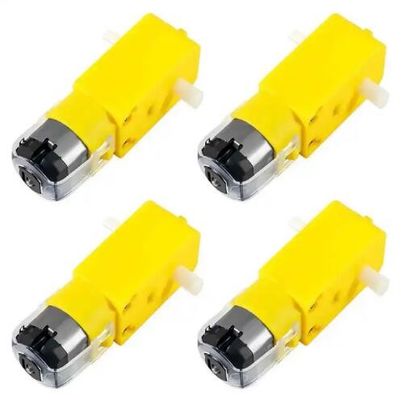

Intelligent plastic gear motor F130 3v 6v small yellow plastic gear box micro electric TT dc motor
Motor Type: DC plastic gear motor
Item NO. DSJ01A
Voltage 3V~24V
Speed 15~500RPM
Working Current 0.5A Max
Body Diameter:20MM
Product Feature :
Voltage:DC Input 1.5V,3v,4.5v, 5v,6v,7.2v,9v,12v (Can be Customized)
Power:(Can be Customized)
Speed:Variable speed from 15-3000rpm (Can be Customized)
Torque:Up to 2kgf.cm rated torque(Can be Customized)
Shaft:shaft Dia: 3mm ,Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)
Our advantage:
* TGP plastic gears gearbox plus A130 permanent magnet DC motor
* small size dc gear motor with low speed and big torque
* suitable to small diameter, low noise, and big torque application
* reduction ratio: 48,120,180,220,288
Specification:
| Item | Dc brush gear motor DSJ01A |
| Size | Diameter20mm |
| Working Voltage | 3V~12V |
| Speed | 15~300RPM |
| Torque | 0.5kg.cm |
| Working Current | 45mA Max |
| Typical Current | 30mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application

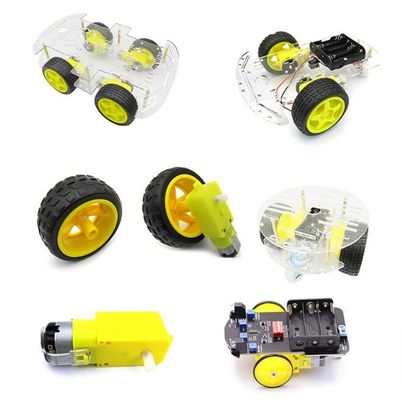

Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
