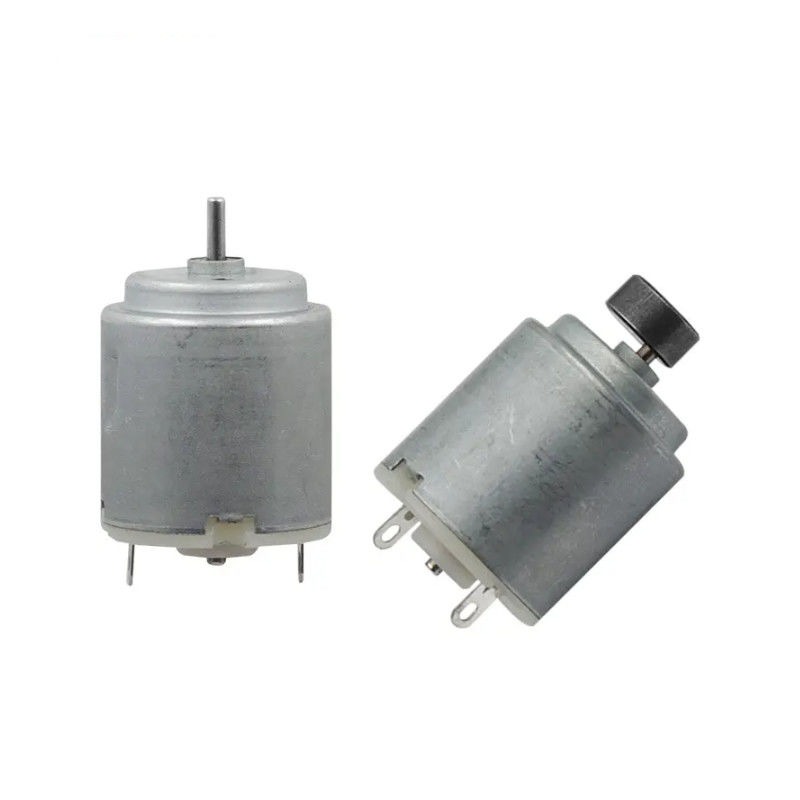

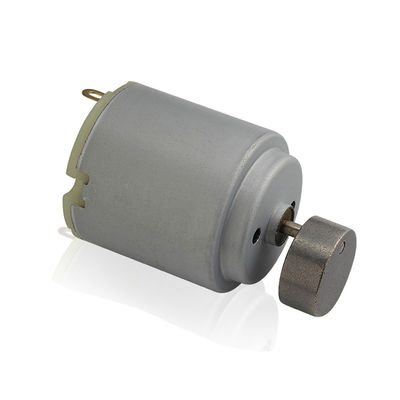

SM Micro DC Motor 260 1.5V 3V 4.5V 6V Mini Motor For Massager Vibration Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DRC-260SA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | 260 DC Mini Motor For Massager | Type: | Carbon Brush |
|---|---|---|---|
| Size: | Diam 24mm X H 27mm | Construction: | Magnetic Permanent |
| Volatge: | 9V | Speed(Max Efficiency): | 5110rpm |
| Torque(Max Efficiency): | 19.7g.cm | Continuous Current(A): | 0.22A |
| Stall Torque: | 90g.cm | Size Of Vibrator: | Customize As Request |
| Highlight: | SM Micro DC Motor 3V,DC Motor 260 1.5V,Massager Mini Motor DC 6V |
||
Product Description
SM DC Motor Micro 1.5V 3V 4.5V 6V 260 DC Mini Motor For Massager Vibration Motor
Industry-specific Attributes:
Low Speed (RPM) 5110 RPM
Continuous Current 0.22A
Efficiency 51.5%
Vibrator & Shaft Length Customize
Quick Detail:
Carbon Brush 260 DC Motor
High Efficiency 51.5%
Nominal Voltage 9V
Max Efficiency Speed 5110 RPM
Max Efficiency Current 0.22A
Max Efficiency Torque 19.7g.cm
Max Efficiency Output Power 1W
Stall Torque 90g.cm
Vibrator & Shaft Length Customize As Request
Data Details Customized As Request
Typical Application For Electric Toys, Massager, R/C Car
Specification
| Motor Type | 260 Micro DC Motor |
| Size | Diam 24mm x H 27mm |
| Voltage | 9V |
| Speed | 5110 RPM |
| Torque | 19.7g.cm |
| Stall Torque | 90g.cm |
| Continuous Current | 0.22A |
| Shaft Diameter | 2mm |
| Efficiency | 51.5% |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
Features of Carbon Brush 260 DC Motor
This is a Carbon Brush 260 DC motor with a high efficiency of 51.5%. It has a nominal voltage of 9V, and a maximum efficiency speed of 5110 RPM. The maximum efficiency current is 0.22A, and the maximum efficiency torque is 19.7g.cm. The maximum efficiency output power is 1W, and the stall torque is 90g.cm. The vibrator and shaft length can be customized according to the customer's request, and the data details can also be customized as requested. This DC motor is typically used for applications such as electric toys, massagers, and R/C cars.
Micro Brushed DC Motors
Φ10mm: FF-M10,FF-M20,FF-M30
Φ12mm: FF-N10,FF-N20,FF-N30
Φ20mm: FF130,FF180
Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370
Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395
Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565
Φ42mm: RS750,RS755,RS770,RS775
Application:
The micro dc motor are widely used in various fields, including Electric Toys, Massager, R/C Car,CD Player/Automobile CD Player,MD Player/ Recorder,Camcorder,etc.
