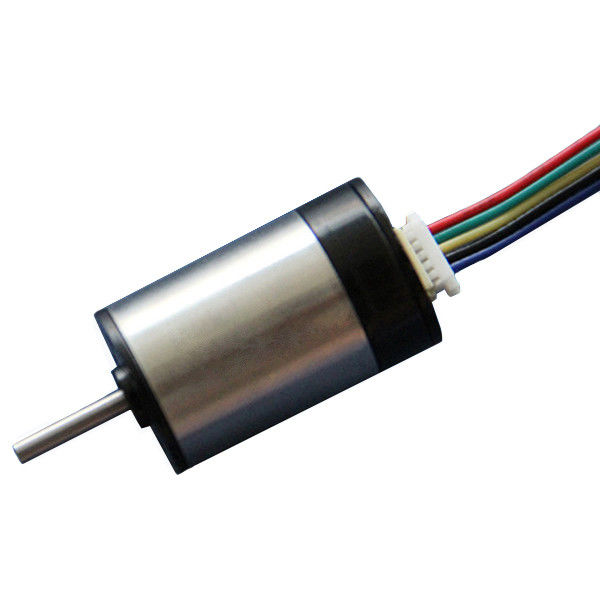

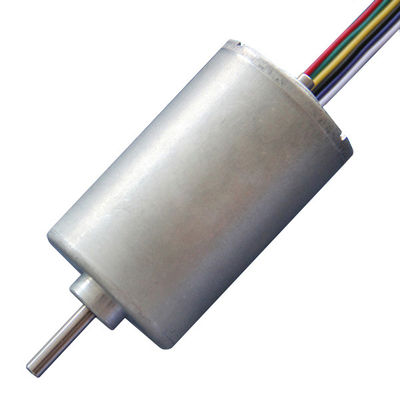

16mm 24mm 28mm 36mm Mini Brushless Dc Motor BLDC For Dentist Device
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | BL1625 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | Mini Brushless Motor | Lifespan: | 3000~30000h |
|---|---|---|---|
| Size: | Diam 24mm * H 30mm | Rated Voltage: | 8.5V |
| Speed(At Max Efficiency): | 10365rpm | Current(At Max Efficiency): | 0.49A |
| Torque(At Max Efficiency): | 20.4g.cm | Output Power(At Max Efficiency): | 2.168W |
| Stall Torque: | 92.7g.cm | Threaded Hole: | 4-M2 |
| Highlight: | 24mm Brushless DC Motor,16mm Brushless DC Motor BLDC,24mm Brushless Motor |
||
Product Description
high quality 16mm 24mm 28mm 36mm brushless dc motors for dentist device bldc motor
Specification
| Model | BL1625I |
| Size | Diam 16mm * H 25mm |
| Shaft Diameter | 1.5mm |
| Rated Voltage | 8.5V DC |
| Speed(Max Efficiency) | 10365rpm |
| Rated Torque(Max Efficiency) | 20.4 g.cm |
| Output Power(Max Efficiency) | 2.168W |
| Current(Max Efficiency) | 0.49A |
| Power Efficiency | 65~85% |
| Ball Bearing or Oil Bearing | Optional as request |
| Direction of Rotation | CCW / CW |
| Noise | 30~45db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Lifespan | 3000~30000hrs |
Quick Detail:
16mm Brushless Electric Motor
Permanent Magnet
Inner Rotor Type
Long Life Span 3000~30000 Hours
Ball Bearing or Oil Bearing Customize as request
Low Noise
1 Year Warranty
ODM,OEM Available
Features of 1625 BLDC Motor
Our BL1625 bldc motor is small, light weight, precision, reliable control and delicately operate. Reliable and stable with long life time.
Application:
This 1625 coreless brushless dc motor is not only used for dentist equipment, but also can be used for electric power tools, industrial equipment, household appliances, smart household robots, micro pump and medical equipment etc.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:5-7 working days for samples.
Shipping Channel:We need to check it with our agents or delivery to your agent in China
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
