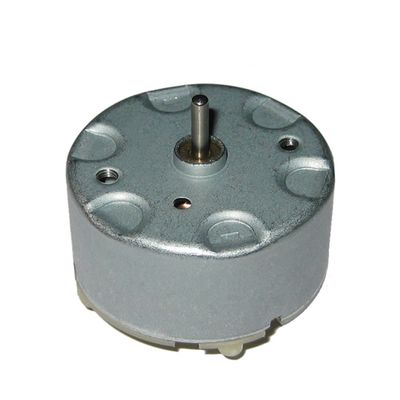

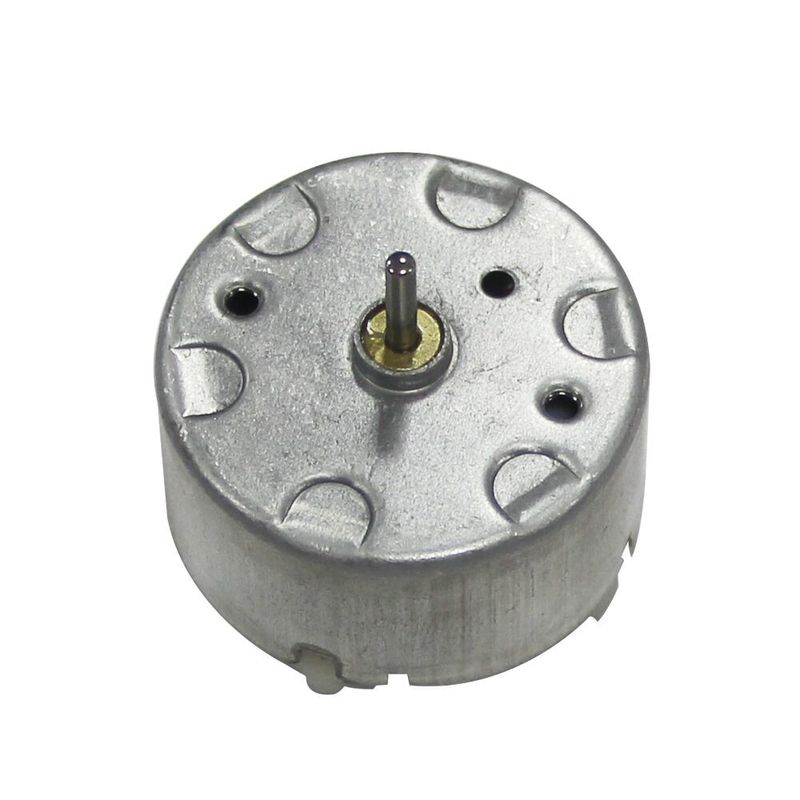

Low Noise 32mm 6V DC Electric Motor 3000rpm 500 DC Motor For Air Freshener
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DRF-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | 6v 3000rpm 500 DC Motor | Construction: | Permanent Magnet |
|---|---|---|---|
| Type: | Brush Motor | Motor Size: | Diam 32mm X H 19.5mm |
| Max Efficiency: | 58% | Rated Voltage: | 6V DC |
| Speed(At Max Efficiency): | 3060rpm | Torque(At Max Efficiency): | 14.4g.cm |
| Current(At Max Efficiency): | 0.13A | Output Power(At Max Efficiency): | 0.45W |
| Highlight: | 6V DC Electric Motor 3000rpm,32mm 6V DC Electric Motor,Low Noise 500 DC Motor |
||
Product Description
Low noise 32mm 6v 3000rpm dc electric motor for air freshener 500 dc motor
Industry-specific Attributes:
Low Speed (RPM) 3060 RPM
Continuous Current 0.13A
Efficiency 58%
Shaft Length Can Be customized
Quick Detail:
32mm 500 DC Motor
High Efficiency 58%
Max Efficiency Output Power 0.45W
Voltage Operating Range 1.5V~9V
Speed 3000~10000 RPM
Continuous Current 0.13A
Stall Torque 84g.cm
Threaded Hole 2-M2.5 x 0.45
Shaft Length Customize
Data details customize as request
Typical Application For DVD Player,Air Freshener,Robot Vacuum
Specification
| Motor Type | 500 DC Motor |
| Size | Diam 32mm x H 19.5mm |
| Rated Voltage | 6.0V |
| Speed | 3060 RPM |
| Torque | 14.4g.cm |
| Stall Torque | 84g.cm |
| Continuous Current | 0.13A |
| Shaft Diameter | 2mm |
| Efficiency | 58% |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
Features of 32mm 500 DC Motor
This 32mm 500 DC motor is a high-performance motor with a maximum efficiency of 58%. It has a maximum efficiency output power of 0.45W and operates within a voltage range of 1.5V to 9V. The motor has a speed range from 3000 to 10000 RPM and a continuous current rating of 0.13A. It provides a stall torque of 84g.cm and features a threaded hole of 2-M2.5 x 0.45. This motor is typically used in DVD players, air fresheners, and robot vacuums. The shaft length and type can be customized to fit specific applications
We can also provide customized data details for your specific needs. Please let us know what information you need, and we will provide it to you as soon as possible. Whether you need to know more about the motor's specifications, performance characteristics, or application suggestions, we can provide you with the information you need. Contact us today to request your customized data details!
Micro Brush DC Motors
Φ10mm: FF-M10,FF-M20,FF-M30
Φ12mm: FF-N10,FF-N20,FF-N30
Φ20mm: FF130,FF180
Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370
Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395
Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565
Φ42mm: RS750,RS755,RS770,RS775
Application:
The micro dc motor are widely used in various fields, including DVD players, air fresheners, robot vacuums, and other consumer electronics devices.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:3 working days for samples.10-20 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you a manufacturer or a trade company? Which kind of motor do you produce?
A: We are a professional dc motor manufacturer since 2003, we mainly produce the DC Motor, Brushless DC Motor(Inner Rotor Brushless Motor, Outer Rotor Brushless Motor), DC Gear Motor, Planetary Gear Motor,High Voltage Motor,Coreless Motor, etc.
Q2: Does your company have ODM and OEM service?
A: Yes, of course. We can produce according to your drawing and customize Logo or packing by your request, we can also guarantee you a worry-free after sales.
Q3: Do you charge for the sample and the shipping cost?
A: Yes, we do, but we will refund you the sample fee if your batch order can be 2000 pieces or above.
Q4: How about the production period?
A: For conventional samples, 3-5 working days; For new samples, about 2 weeks. As for the mass production, it will depend on the quantity of your order.
Q5: What about your terms of payment?
A: Money Gram,T/T,Paypal,Western Union, Alipay and L/C. If the payment<=10000USD
Q6: How do you handle the shipment? And how long?
A: We recommend the Alibaba cooperated logistics Companies such as the HK UPS for samples and the small quantity, because it is safe, fast and cheap. We arrange the shipment by sea or air for the large quantity. And the DHL, FedEx,TNT, EMS are all available, if you need to ship by other methods, pls contact us in advance. As for the delivery time, usually 5-10 days;The specific will vary with the season number of customers orders.
Q7: Which trade term do you prefer?
A: EXW,FOB,CIF are all available,we can also accept other trade clauses by your request.
Q8: If I need some special materials to make a product,can you do?
A: Certainly,you only need to provide us with design drawings or samples, our professional design team can design the product according to your requirements.
Q9:Can you give me a price list?
A:All our motors are customized according to different requirements of life,noise,voltage, shaft,etc,price also vary with the annual quantities,so it is difficult for us to provide the price list. If you share your detailed requirements and annual quantities,we will see what we can offer.
