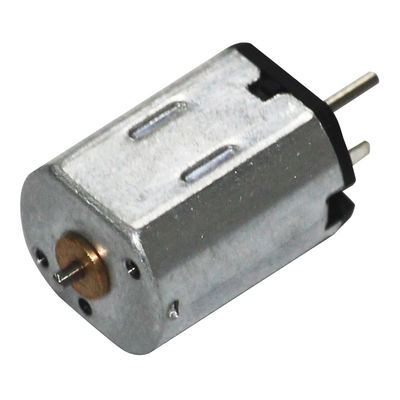

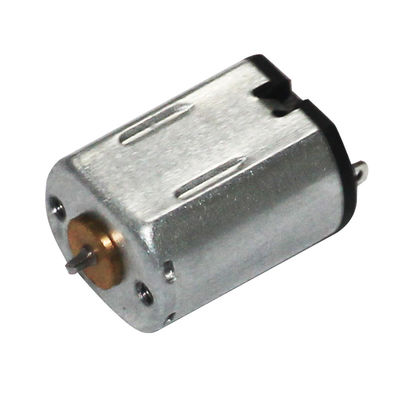

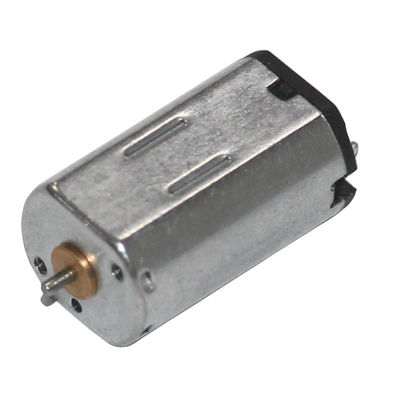

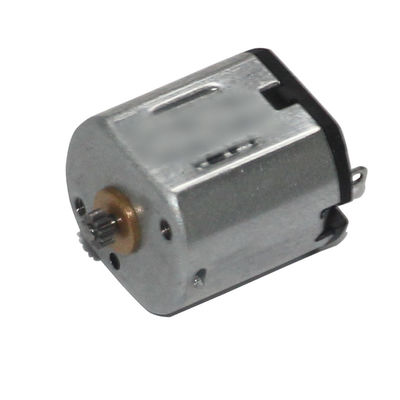

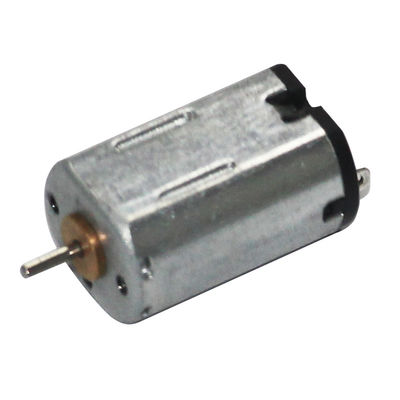

N10 N20 N30 Micro Brush DC Motor M10 M20 M30 Permanent Magnet DC Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DFF-N20PA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | 12V 20000 Rpm DC Motor | Construction: | Permanent Magnet |
|---|---|---|---|
| Type: | Metal Brush | Voltage Operating Range: | 1.5~3.0V DC |
| Nominal Voltage: | 2.4V | Speed(At Max Efficiency): | 12200RPM |
| Current(At Max Efficiency): | 0.33A | Torque(At Max Efficiency): | 2.8g.cm |
| Output Power(At Max Efficiency): | 0.35W | Max Efficiency: | 44.2% |
| Highlight: | N30 Brush DC Motor,N20 Brush DC Motor,M10 Permanent Magnet DC Motor |
||
Product Description
N10 N20 N30 Micro DC Motor M10 M20 M30 Magnetic Permanent Brush Motor For Electronic Toy
Industry-specific Attributes:
Low Speed (RPM) 2000~20000 RPM
Continuous Current 0.33A
Shaft Can Be customized
Quick Detail:
N20 DC Motor
Max Efficiency 44.2%
Output 0.2~1W
Voltage Operating Range 1.5V~5V
Speed 2000~20000 RPM
Continuous Current 0.33A
Stall Torque 13g.cm
Threaded hole 2-M1.4 x 0.3
Typical Application For Electronic toy
Shaft Customized
Data Details Customized As Request
Specification
| Motor Type | N20 DC Motor |
| Size | Diam 12mm x W 10mm x L 15mm |
| Nominal Voltage | 2.4V |
| Speed | 2000~20000 RPM |
| Torque | 2.8g.cm |
| Stall Torque | 13g.cm |
| Continuous Current | 0.33A |
| Shaft Diameter | 1mm |
| Efficiency | 44.2% |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
Features of N20 DC Motor
This N20 DC motor is a high-performance motor with a maximum efficiency of 44.2%. It has an output power range of 0.2 to 1W and operates within a voltage range of 1.5V to 5V. The motor has a speed range from 2000 to 20000 RPM and a continuous current rating of 0.33A. It provides a stall torque of 13g.cm and features a threaded hole of 2-M1.4 x 0.3. This motor is typically used in electronic toys and can be customized to fit specific applications, including the shaft length and type.
We can also provide customized data details for your specific needs. Please let us know what information you need, and we will provide it to you as soon as possible. Whether you need to know more about the motor's specifications, performance characteristics, or application suggestions, we can provide you with the information you need. Contact us today to request your customized data details!
Micro Brushed DC Motors
Φ10mm: FF-M10,FF-M20,FF-M30
Φ12mm: FF-N10,FF-N20,FF-N30
Φ20mm: FF130,FF180
Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370
Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395
Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565
Φ42mm: RS750,RS755,RS770,RS775
Application:
The micro dc motor are widely used in various fields, including Electronic Toy,CD Player/Automobile CD Player,MD Player/ Recorder,Camcorder,etc.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:3 working days for samples.10-20 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you a manufacturer or a trade company? Which kind of motor do you produce?
A: We are a professional dc motor manufacturer since 2003, we mainly produce the DC Motor, Brushless DC Motor(Inner Rotor Brushless Motor, Outer Rotor Brushless Motor), DC Gear Motor, Planetary Gear Motor,High Voltage Motor,Coreless Motor, etc.
Q2: Does your company have ODM and OEM service?
A: Yes, of course. We can produce according to your drawing and customize Logo or packing by your request, we can also guarantee you a worry-free after sales.
Q3: Do you charge for the sample and the shipping cost?
A: Yes, we do, but we will refund you the sample fee if your batch order can be 2000 pieces or above.
Q4: How about the production period?
A: For conventional samples, 3-5 working days; For new samples, about 2 weeks. As for the mass production, it will depend on the quantity of your order.
Q5: What about your terms of payment?
A: Money Gram,T/T,Paypal,Western Union, Alipay and L/C. If the payment<=10000USD
Q6: How do you handle the shipment? And how long?
A: We recommend the Alibaba cooperated logistics Companies such as the HK UPS for samples and the small quantity, because it is safe, fast and cheap. We arrange the shipment by sea or air for the large quantity. And the DHL, FedEx,TNT, EMS are all available, if you need to ship by other methods, pls contact us in advance. As for the delivery time, usually 5-10 days;The specific will vary with the season number of customers orders.
Q7: Which trade term do you prefer?
A: EXW,FOB,CIF are all available,we can also accept other trade clauses by your request.
Q8: If I need some special materials to make a product,can you do?
A: Certainly,you only need to provide us with design drawings or samples, our professional design team can design the product according to your requirements.
Q9:Can you give me a price list?
A:All our motors are customized according to different requirements of life,noise,voltage, shaft,etc,price also vary with the annual quantities,so it is difficult for us to provide the price list. If you share your detailed requirements and annual quantities,we will see what we can offer.
