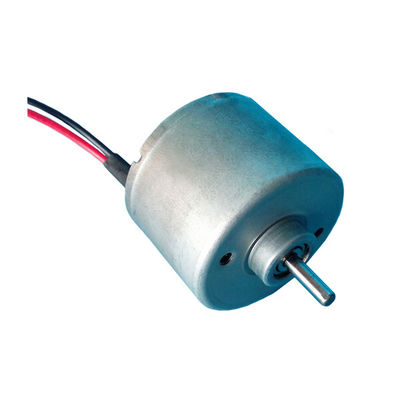

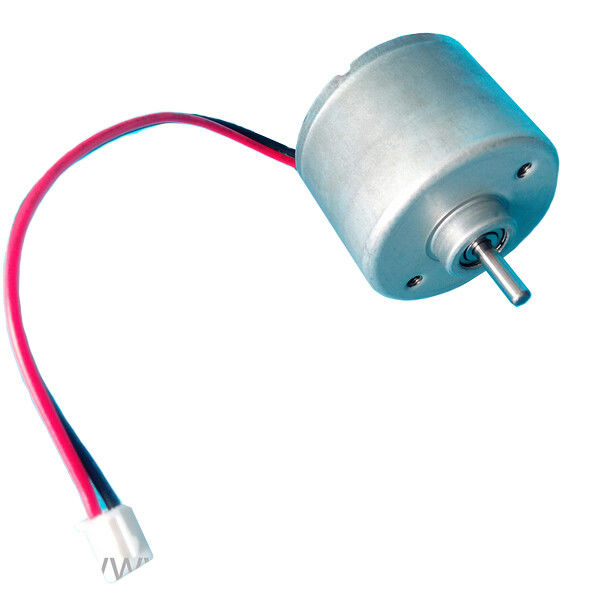

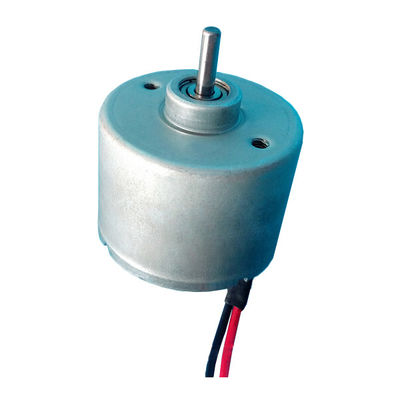

36mm Inner Rotor BLDC Motor 6000 RPM 12V DC Brushless Motor For Vacuum Pump
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL3626I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 5USD/PCS~7.45USD/PCS |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 200,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | 36mm Brushless DC Motor | Rotor Type: | Inner Rotor |
|---|---|---|---|
| Motor Size: | Diam 36mm * L 26mm | Shaft Diam: | 4mm |
| Voltage: | 12V 18V 24V (Suggested) | Speed(At Max Efficiency): | 4882rpm |
| Current(At Max Efficiency): | 0.638A | Torque(At Max Efficiency): | 96.1g.cm |
| Output(At Max Efficiency): | 4.814W | Efficiency: | 65~85% |
| Noise: | 36dB | Weight: | 95g |
| Highlight: | 36mm Inner Rotor BLDC Motor,Inner Rotor BLDC Motor 6000 RPM,36mm 12V DC Brushless Motor |
||
Product Description
36mm 12V 6000RPM BLDC Motor Inner Rotor DC Motor For Cacuum Pump Brushless Motor
Quick Detail:
12V 24V Brushless Motor
High Efficiency 65%~85%
6 Pins Motor Terminations
Flexible Motor Rotation(CW/CCW)
Permanent Magnet
Ball Bearing Or Oil Bearing Customize As Requested
Low Noise
Brushless DC Motor Lifespan 10000~20000hrs
1 Year Warranty
ODM,OEM Service
Specification
| Model | DBL3626I |
| Motor Size | Diam 36mm * L 26mm |
| Rated Voltage | 12V DC |
| Speed(At max efficiency) | 4882rpm |
| Torque(At max efficiency) | 96.1 g.cm |
| Out Put(At max efficiency) | 4.814W |
| Shaft Diameter | 4mm |
| Power Efficiency | 80% |
| Ball Bearing or Oil Bearing | Customize as requested |
| Direction of Rotation | CCW / CW |
| Noise | 35db |
| Working Temperature Range | -10℃ ～ +70℃(25℃best) |
| Life span | 10000~20000hrs(Based on the actual operation of the motor) |
Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
| 6 | BRAKE |
Features
12V 24V Brushless DC Motor
This is a high-performance brushless DC motor with a diameter of 28mm and a length of 38mm. It features a high efficiency of 65%~85%, ensuring low power consumption and high torque output. The motor is equipped with 6-pin motor terminations, allowing for flexible motor rotation in both clockwise (CW) and counterclockwise (CCW) directions.
The motor utilizes permanent magnets to provide good torque and efficiency, further enhancing its performance. It can be customized with either ball bearings or oil bearings as requested by the customer, ensuring smooth and reliable operation. This motor is designed with low noise in mind, making it perfect for use in applications where noise is a concern. It boasts a long lifespan of 10,000 to 20,000 hours, ensuring it will provide reliable performance over a long period of time.
This brushless DC motor complies with CE and RoHS standards, ensuring it meets the highest safety and environmental standards. Additionally, it comes with a 1-year warranty, giving you peace of mind and confidence in your purchase. ODM (Original Design Manufacturer) and OEM (Original Equipment Manufacturer) services are available, allowing you to customize this motor to fit your specific needs or integrate it into your existing product line. This small, high-performance brushless DC motor offers a comprehensive solution for a wide range of applications.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Standard Packing:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
