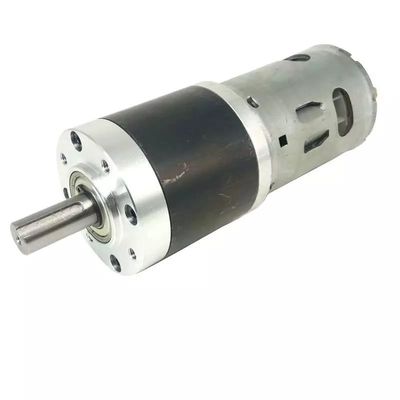

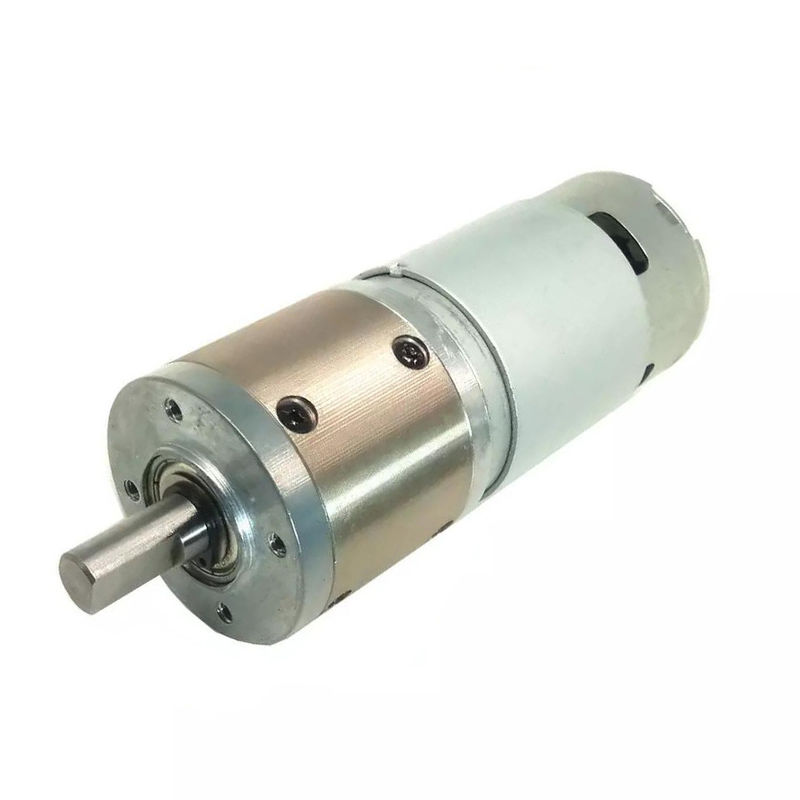

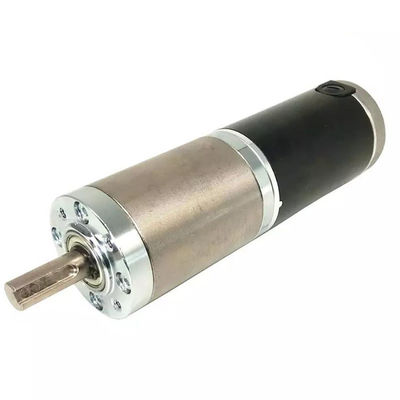

Dia 57mm High Torque DC Planetary Gear Motor Brush Gear Reduction Electric Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DPG57-997 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | USD18.5-22.5pcs |
| Packaging Details: | carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs30days |
|
Detail Information |
|||
| Product Name: | DC Planetary Gear Motor | No-load Current: | 0.5-5A |
|---|---|---|---|
| No-load Speed: | 15-1000rpm | Output Shaft: | Round/Square/Flat/Customized |
| Torque: | 50-200kg.cm | Warranty: | 1 Years |
| Diameter: | 57mm | Voltage: | 12-36v |
| Highlight: | High Torque DC Planetary Gear Motor,57mm DC Planetary Gear Motor,Brush Gear Reduction Electric Motor |
||
Product Description
Dia 57mm High torque long lifetime dc planetary gear motor dc 12-36v brush planetary gear box reduction electric motor
Motor Type: DC Brush planetary gear motor
Item NO. DPG57-997
Voltage 15V~36V
Speed 15~500RPM
Working Current 5A Max
Body Diameter:57MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.The price is a little expensive.
Description:
Special steel plate, fully automatic metal stamping forming, high precision, good copper core, accurate size specifications.
Rotor: pure copper wire winding, high-quality iron core, power saving, durable, low noise, low calorific value, reduced energy loss, reduced current resistance, good electrical conductivity.
Planetary gear motor is a DC Motor with a Planetary gearbox or gearhead. The gearbox design is a planetary design, the gears working style is like the planetary running. It has sun gear, planetary gears and Ring Gear,
Specification:
| Item | Dc brush Planetary gear motor DPG57-997 |
| Size | Diameter57mm |
| Working Voltage | 12V~36V |
| Speed | 15~500RPM |
| Torque | 50-150kg.cm |
| Working Current | 5A Max |
| Typical Current | 6A |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
