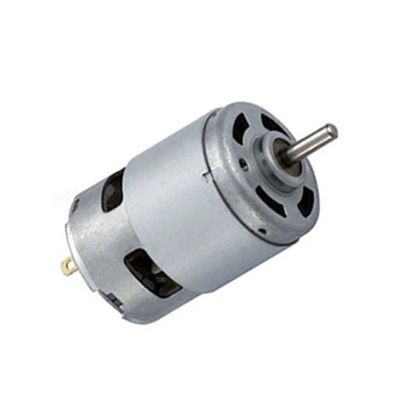

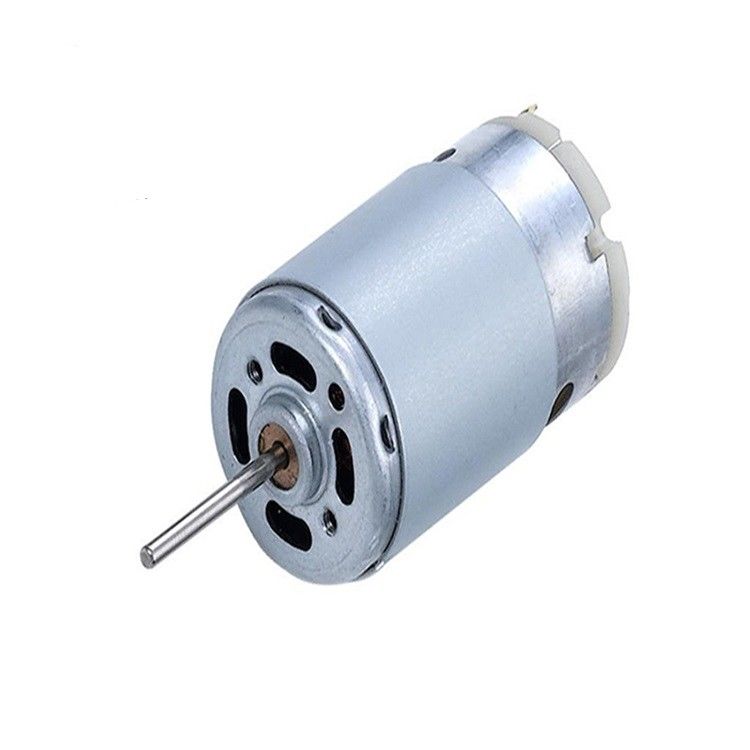

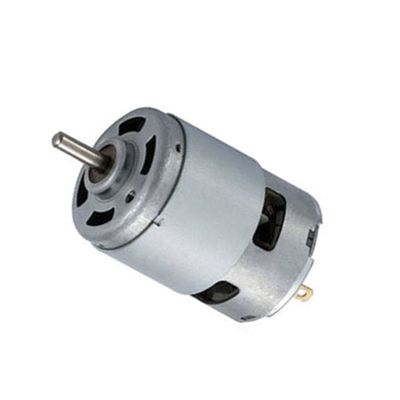

Low Noise Electric RS 755 DC Motor 12v 24v 5800rpm For Air Pump Valve
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DRC 755 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 2.58USD/PCS~2.99USD/PCS |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 200,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | 755 Dc Motor | Construction: | Permanent Magnet |
|---|---|---|---|
| Type: | Carbon Brush | Size Of Motor: | Diam 42mm X H 60mm |
| Threaded Hole: | 2-M4x0.7 | Volatge Range: | 6V~24V |
| Torque: | 350~1400g.cm | Speed: | 3000~20000rpm |
| Continuous Current(A): | 2.5A | Shaft Length: | Customized |
| Highlight: | Low Noise Electric Motor 12v,RS 755 DC Motor 24v,Low Noise DC Motor 5800rpm |
||
Product Description
low noise 12v 24v 5800rpm 755 dc motor for air pump valve electric motor
Industry-specific Attributes:
High Speed (RPM) 3000~20000 RPM
Continuous Current 2.5A
Efficiency 65%~85%
Quick Detail:
755 DC Electric Motor
High Efficiency 65%~85%
Output 10~235W
Voltage Operating Range 6V~24V
Speed 3000~20000 RPM
Continuous Current 2.5A
Stall Torque 2000~8000g.cm
Threaded hole 2-M4 x 0.7
Shaft Length customized
Data details of dc motor can be customized as request
Typical Application For Air Pump Valve,Copy Machine,Auto Vending Machine,Massager,Air Compressor,Cordless Power Tools,Motorized Toy,Automotive Product,etc.
Specification
| Motor Type | 755 DC electric motor |
| Size | Diam 42mm x H 60mm |
| Voltage | 12V |
| Speed | 5400 RPM |
| Torque | 350g.cm |
| Stall Torque | 2080g.cm |
| Continuous Current | 2.5A |
| Shaft Diameter | 5mm |
| Efficiency | 65%~85% |
| Power | 19.4W |
Features of 755 DC electric motor
The 755 DC electric motor is a high-efficiency motor with an output power range of 10 to 235W. The voltage operating range is 6V to 24V, and the speed range is 3,000 to 20,000 RPM. The motor has a continuous current rating of 2.5A, and the stall torque rating is between 2,000 and 8,000g.cm. The threaded hole is 2-M4 x 0.7, and the shaft length can be customized. The data details of the DC motor can also be customized as requested.
Typical applications for this type of DC motor include air pump valves, copy machines, auto vending machines, massagers, air compressors, cordless power tools, motorized toys, automotive products, and various other similar applications. This motor is designed for efficient and reliable operation in a wide range of industries and applications.
Micro Brushed DC Motors
Φ10mm: FF-M10,FF-M20,FF-M30
Φ12mm: FF-N10,FF-N20,FF-N30
Φ20mm: FF130,FF180
Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370
Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395
Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565
Φ42mm: RS750,RS755,RS770,RS775
Application:
The micro dc motor are widely used in various fields, including power tools, motorized toys, automotive products, etc.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:3 working days for samples.10-20 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you a manufacturer or a trade company? Which kind of motor do you produce?
A: We are a professional dc motor manufacturer since 2003, we mainly produce the DC Motor, Brushless DC Motor(Inner Rotor Brushless Motor, Outer Rotor Brushless Motor), DC Gear Motor, Planetary Gear Motor,High Voltage Motor,Coreless Motor, etc.
Q2: Does your company have ODM and OEM service?
A: Yes, of course. We can produce according to your drawing and customize Logo or packing by your request, we can also guarantee you a worry-free after sales.
Q3: Do you charge for the sample and the shipping cost?
A: Yes, we do, but we will refund you the sample fee if your batch order can be 2000 pieces or above.
Q4: How about the production period?
A: For conventional samples, 3-5 working days; For new samples, about 2 weeks. As for the mass production, it will depend on the quantity of your order.
Q5: What about your terms of payment?
A: Money Gram,T/T,Paypal,Western Union, Alipay and L/C. If the payment<=10000USD
Q6: How do you handle the shipment? And how long?
A: We recommend the Alibaba cooperated logistics Companies such as the HK UPS for samples and the small quantity, because it is safe, fast and cheap. We arrange the shipment by sea or air for the large quantity. And the DHL, FedEx,TNT, EMS are all available, if you need to ship by other methods, pls contact us in advance. As for the delivery time, usually 5-10 days;The specific will vary with the season number of customers orders.
Q7: Which trade term do you prefer?
A: EXW,FOB,CIF are all available,we can also accept other trade clauses by your request.
Q8: If I need some special materials to make a product,can you do?
A: Certainly,you only need to provide us with design drawings or samples, our professional design team can design the product according to your requirements.
Q9:Can you give me a price list?
A:All our motors are customized according to different requirements of life,noise,voltage, shaft,etc,price also vary with the annual quantities,so it is difficult for us to provide the price list. If you share your detailed requirements and annual quantities,we will see what we can offer.
