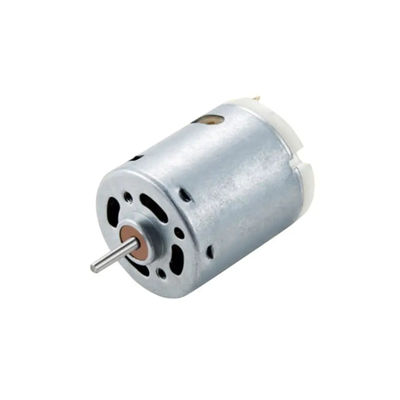

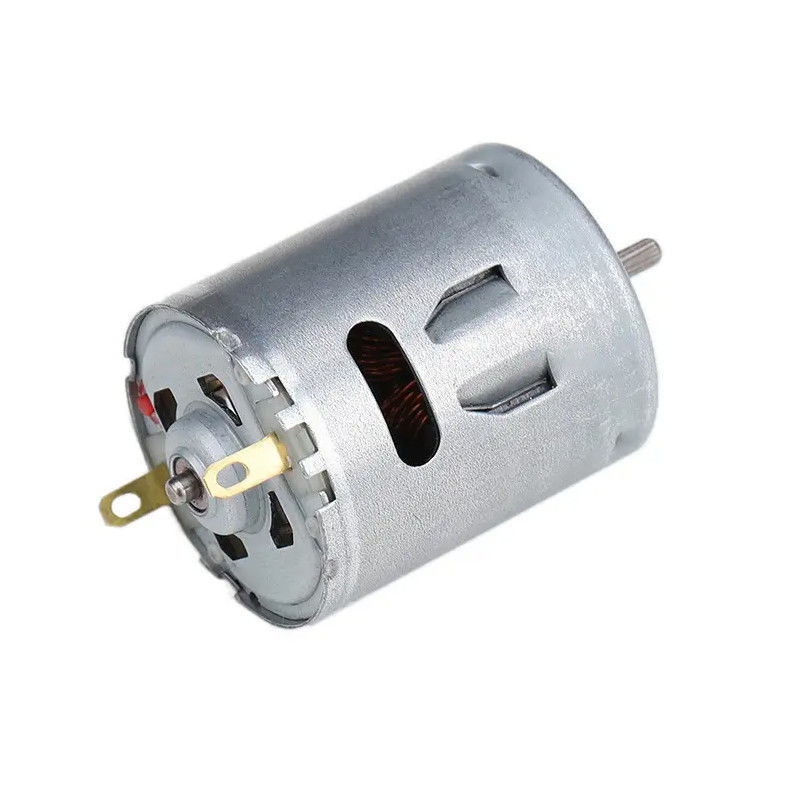

12V 24V Micro Motor RS 360 365 380 385 390 360SH 365SH 380SH 385SH DC Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | 390 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.95USD/PCS~1.15USD/PCS |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 200,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | Mini DC Motor | Construction: | Permanent Magnet |
|---|---|---|---|
| Type: | Electric Brush Or Carbon Brush | Size: | Diam 28mm X H 47mm |
| Threaded Hole: | 2-M3 X 0.4 | Volatge Range: | 3V~12V |
| Torque: | 30~150g.cm | Speed: | 3000~20000rpm |
| Continuous Current(A): | 0.05A | Rotation Direction: | CW / CCW |
| Highlight: | Micro RS 385 DC Motor,12V RS 365 DC Motor,24V RS 385SH DC Motor |
||
Product Description
12v 24v Micro Motor RS 360 365 380 385 390 360SH 365SH 380SH 385SH DC Motor
Industry-specific Attributes:
Low Speed (RPM) 3000~20000 RPM
Continuous Current Between 0.03A to 0.25A
Efficiency 65%~85%
Shaft Length Can Be customized
Quick Detail:
Carbon Brush DC Motor
High Efficiency 65%~85%
Output 5~15W
Voltage Operating Range 3V~24V
Speed 3000~20000 RPM
Continuous Current Between 0.03A to 0.25A
Stall Torque 500~900g.cm
Threaded hole 2-M3 x 0.4
Shaft Length can be customized
Data details customize as request
Typical Application For Massager Vibrator,Vaccum Cleaner,Car Antenna
Specification
| Motor Type | Brush DC Motor |
| Size | Diam 28mm x H 47mm |
| Voltage | 3~12V |
| Speed | 12800 RPM |
| Torque(At Maximum Efficiency) | 126g.cm |
| Stall Torque | 870g.cm |
| Continuous Current | 0.05A ~ 0.25A |
| Shaft Diameter | 2.3mm |
| Efficiency | 65%~85% |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
Features of Carbon Brush DC Motor
The carbon brush DC motor is a type of electric motor that is widely used in various applications. It has a high efficiency rating of 65%~85%, which means that it converts a large percentage of the electrical energy input into useful mechanical output. This makes it an excellent choice for systems where energy efficiency is critical.
The motor has an output power range of 5 to 15 watts, depending on the specific model. This output power can be adjusted by varying the input voltage, allowing for precise control of the motor's speed and torque. The voltage operating range is from 3V to 24V, providing flexibility for a wide range of applications.
The motor's speed can reach up to 3000 RPM (revolutions per minute), with a continuous current draw ranging from 0.03A to 0.25A. The stall torque, which is the maximum torque produced by the motor when it is stopped, is between 500 and 900 grams-centimeters.
The motor is also equipped with a threaded hole, measuring 2-M3 x 0.4, for easy installation and integration into various systems. Additionally, the shaft length can be customized to meet specific application requirements, ensuring a perfect fit for each application.
Data details can also be customized as requested, allowing for further customization and integration into specific systems.
The typical applications for this type of carbon brush DC motor include massager vibrators, vacuum cleaners, and car antennas. These are just some examples of the many possible applications that this motor can be used for. Due to its small size, high efficiency, and wide voltage range, it is particularly suitable for use in portable and battery-powered devices.
Micro Brushed DC Motors
Φ10mm: FF-M10,FF-M20,FF-M30
Φ12mm: FF-N10,FF-N20,FF-N30
Φ20mm: FF130,FF180
Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370
Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395
Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565
Φ42mm: RS750,RS755,RS770,RS775
Application:
The micro dc motor are widely used in various fields, including Massager Vibrator,Vaccum Cleaner,Car Antenna,etc.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:3 working days for samples.10-20 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you a manufacturer or a trade company? Which kind of motor do you produce?
A: We are a professional dc motor manufacturer since 2003, we mainly produce the DC Motor, Brushless DC Motor(Inner Rotor Brushless Motor, Outer Rotor Brushless Motor), DC Gear Motor, Planetary Gear Motor,High Voltage Motor,Coreless Motor, etc.
Q2: Does your company have ODM and OEM service?
A: Yes, of course. We can produce according to your drawing and customize Logo or packing by your request, we can also guarantee you a worry-free after sales.
Q3: Do you charge for the sample and the shipping cost?
A: Yes, we do, but we will refund you the sample fee if your batch order can be 2000 pieces or above.
Q4: How about the production period?
A: For conventional samples, 3-5 working days; For new samples, about 2 weeks. As for the mass production, it will depend on the quantity of your order.
Q5: What about your terms of payment?
A: Money Gram,T/T,Paypal,Western Union, Alipay and L/C. If the payment<=10000USD
Q6: How do you handle the shipment? And how long?
A: We recommend the Alibaba cooperated logistics Companies such as the HK UPS for samples and the small quantity, because it is safe, fast and cheap. We arrange the shipment by sea or air for the large quantity. And the DHL, FedEx,TNT, EMS are all available, if you need to ship by other methods, pls contact us in advance. As for the delivery time, usually 5-10 days;The specific will vary with the season number of customers orders.
Q7: Which trade term do you prefer?
A: EXW,FOB,CIF are all available,we can also accept other trade clauses by your request.
Q8: If I need some special materials to make a product,can you do?
A: Certainly,you only need to provide us with design drawings or samples, our professional design team can design the product according to your requirements.
Q9:Can you give me a price list?
A:All our motors are customized according to different requirements of life,noise,voltage, shaft,etc,price also vary with the annual quantities,so it is difficult for us to provide the price list. If you share your detailed requirements and annual quantities,we will see what we can offer.
