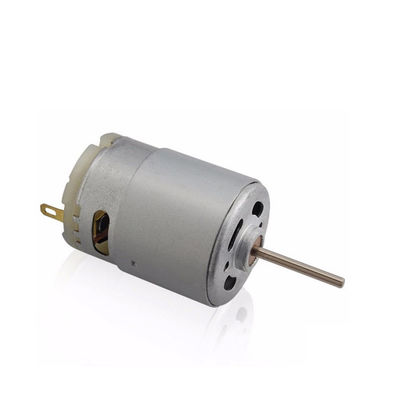

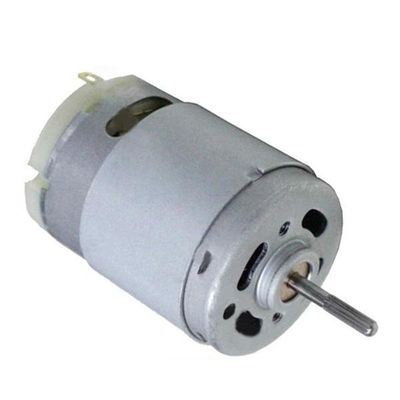

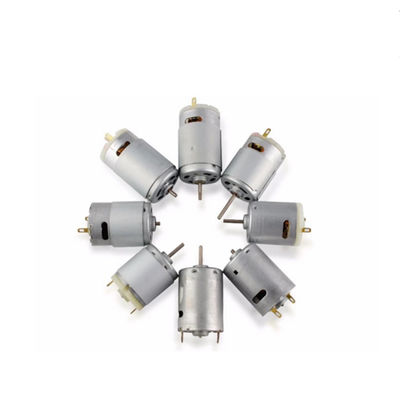

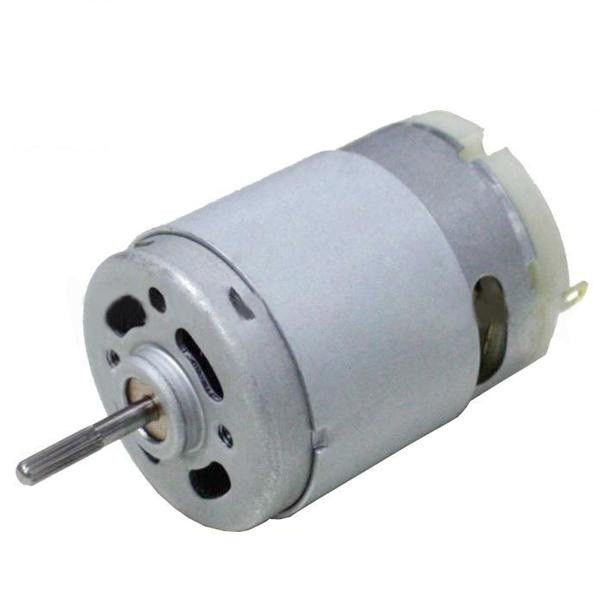

High Speed Carbon Brush DC Motor 6V 12V RC 360 365 380 385 390 395 For Hair Dryer
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | 385 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.63USD/PCS~0.79USD/PCS |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 200,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | Carbon Brush DC Motor | Construction: | Permanent Magnet |
|---|---|---|---|
| Type: | Electric Brush Or Carbon Brush | Size: | Diam 28mm X H 37.8mm |
| Threaded Hole: | 2-M2.6 | Volatge Range: | 6V~30V |
| Torque: | 40~100g.cm | Speed: | 3000~15000rpm |
| Continuous Current(A): | 0.24A | Rotation Direction: | CW / CCW |
| Highlight: | Brush DC Motor 6V,Brush DC Motor RC 360,High Speed RS 365 DC Motor |
||
Product Description
Micro Motor High Speed 6V 12V 360 365 380 385 390 395 Carbon Brush DC Motor For Hair Dryer
Industry-specific Attributes:
Low Speed (RPM) 3000~15000 RPM
Continuous Current Between 0.03A to 0.25A
Efficiency 65%~85%
Shaft Length Can Be customized
Quick Detail:
Carbon Brush DC Motor
High Efficiency 65%~85%
Output 1~8W
Voltage Operating Range 6V~24V
Speed 3000~15000 RPM
Continuous Current Between 0.01A to 0.2A
Stall Torque 50~600g.cm
Threaded hole 2-M2.6
Shaft Length can be customized
Data details of dc motor can be customized as customers' request
Typical Application For Automotive Product,Laser Printer
Specification
| Motor Type | Small DC Motor |
| Size | Diam 28mm x H 37.8mm |
| Voltage | 12V |
| Speed | 9800 RPM |
| Torque | 95g.cm |
| Stall Torque | 570g.cm |
| Continuous Current | 0.16A ~ 1A |
| Shaft Diameter | 2.3mm |
| Efficiency | 65%~85% |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
Features of Carbon Brush DC Motor
Carbon brush DC motor is a kind of brush-type DC motor. It has a high efficiency of 65% to 85%, and its output is between 1 and 8 watts. The voltage operating range is between 6 and 24 volts, with a speed of 3000 to 15000 RPM. The continuous current is between 0.01 and 0.2 amps, and the stall torque is between 50 and 600 g.cm. It also has a threaded hole of M2.6, and the shaft length can be customized according to different requirements.
Carbon brush DC motor is widely used in automotive products, laser printers and other equipment. It is very small in size, light in weight, low noise, low vibration, high reliability, long service life and other characteristics. It can be used in high-speed, high-power and high-precision applications, and is an ideal choice for small-scale power equipment.
In addition, the data details of the DC motor can also be customized according to customers' requests, including but not limited to: size, weight, voltage, current, speed, torque and other parameters. The DC motor is suitable for use in many fields such as automotive, household appliances, communication equipment, instrumentation and metering equipment, and general machinery manufacturing industry.
Micro Brushed DC Motors
Φ10mm: FF-M10,FF-M20,FF-M30
Φ12mm: FF-N10,FF-N20,FF-N30
Φ20mm: FF130,FF180
Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370
Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395
Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565
Φ42mm: RS750,RS755,RS770,RS775
Application:
The micro dc motor are widely used in various fields, including CD Player/Automobile CD Player,MD Player/ Recorder,Camcorder,etc.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:3 working days for samples.10-20 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you a manufacturer or a trade company? Which kind of motor do you produce?
A: We are a professional dc motor manufacturer since 2003, we mainly produce the DC Motor, Brushless DC Motor(Inner Rotor Brushless Motor, Outer Rotor Brushless Motor), DC Gear Motor, Planetary Gear Motor,High Voltage Motor,Coreless Motor, etc.
Q2: Does your company have ODM and OEM service?
A: Yes, of course. We can produce according to your drawing and customize Logo or packing by your request, we can also guarantee you a worry-free after sales.
Q3: Do you charge for the sample and the shipping cost?
A: Yes, we do, but we will refund you the sample fee if your batch order can be 2000 pieces or above.
Q4: How about the production period?
A: For conventional samples, 3-5 working days; For new samples, about 2 weeks. As for the mass production, it will depend on the quantity of your order.
Q5: What about your terms of payment?
A: Money Gram,T/T,Paypal,Western Union, Alipay and L/C. If the payment<=10000USD
Q6: How do you handle the shipment? And how long?
A: We recommend the Alibaba cooperated logistics Companies such as the HK UPS for samples and the small quantity, because it is safe, fast and cheap. We arrange the shipment by sea or air for the large quantity. And the DHL, FedEx,TNT, EMS are all available, if you need to ship by other methods, pls contact us in advance. As for the delivery time, usually 5-10 days;The specific will vary with the season number of customers orders.
Q7: Which trade term do you prefer?
A: EXW,FOB,CIF are all available,we can also accept other trade clauses by your request.
Q8: If I need some special materials to make a product,can you do?
A: Certainly,you only need to provide us with design drawings or samples, our professional design team can design the product according to your requirements.
Q9:Can you give me a price list?
A:All our motors are customized according to different requirements of life,noise,voltage, shaft,etc,price also vary with the annual quantities,so it is difficult for us to provide the price list. If you share your detailed requirements and annual quantities,we will see what we can offer.
