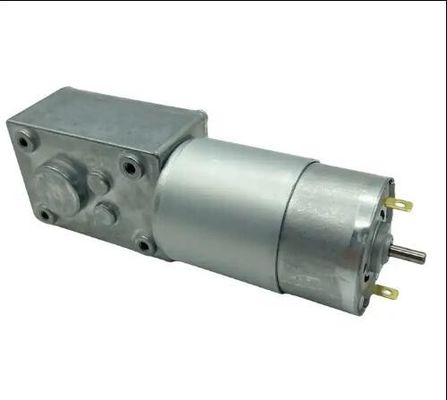

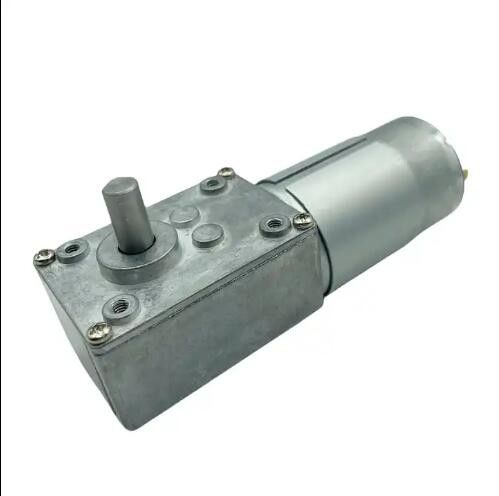

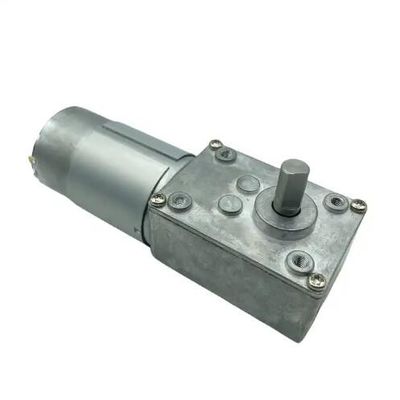

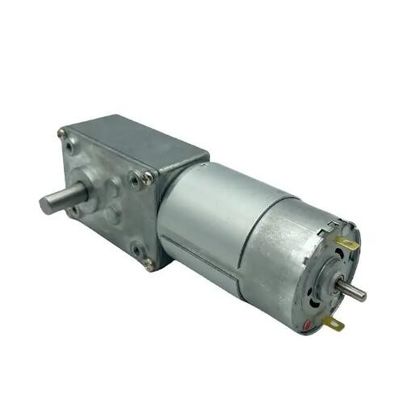

High Torque Brush DC Gear Motor 12V 555 Worm Gear Motor 24V Low Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DGB5840-555 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD8.5-10.5pcs |
| Packaging Details: | carton |
| Delivery Time: | 30day |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs 30days |
|
Detail Information |
|||
| Product: | Dc Worm Gear Motor | No Load Current: | 0.1-2A |
|---|---|---|---|
| No Load Speed: | 5-500RPM | Power: | 15-150W |
| Product Name: | Brush DC Gear Motor | Temperature: | ≤75℃ |
| Torque: | 1-50Kg.cm | Voltage: | 12V/24V |
| Highlight: | High Torque Brush DC Gear Motor,Brush DC Gear Motor 12V,Worm Gear Motor 24V Low Speed |
||
Product Description
High torque brush dc gear motor 12/24v dc worm gear box motor 555 worm gear motor low speed
Motor Type: DC worm gear motor
Item NO. DGB5840-555
Voltage 6V~24V
Speed 15~500RPM
Working Current 5A Max
Body Diameter:40MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.High torque and low speed
5.Connector type customized
6. Long lifetime
7.CE, ROHS compliant
8. 1 Year Warranty
Description:
1. Very sturdy construction inside and outside. The outside shell is well build and has excellent access to mounting M4 screws. 2. Double Ball bearing and brushes have carbon pads construct, even under max load , Super quiet and smooth operation and last much longer life. 3. The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation (CW / CCW); 4.Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock; 5.The reducer output shaft arranged vertically with the motor shaft, whole motor output shaft relatively-short than general gear motor, widely used to be installed the dimensions requirements strictly occasion.
Specification:
| Item | Dc brush worm gear motor |
| Size | Diameter40mm*Height 85mm |
| Working Voltage | 6V~24V |
| Speed | 15~500RPM |
| Torque | 3-50kg,cm |
| Working Current | 85mA Max |
| Typical Current | 62mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →
cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
