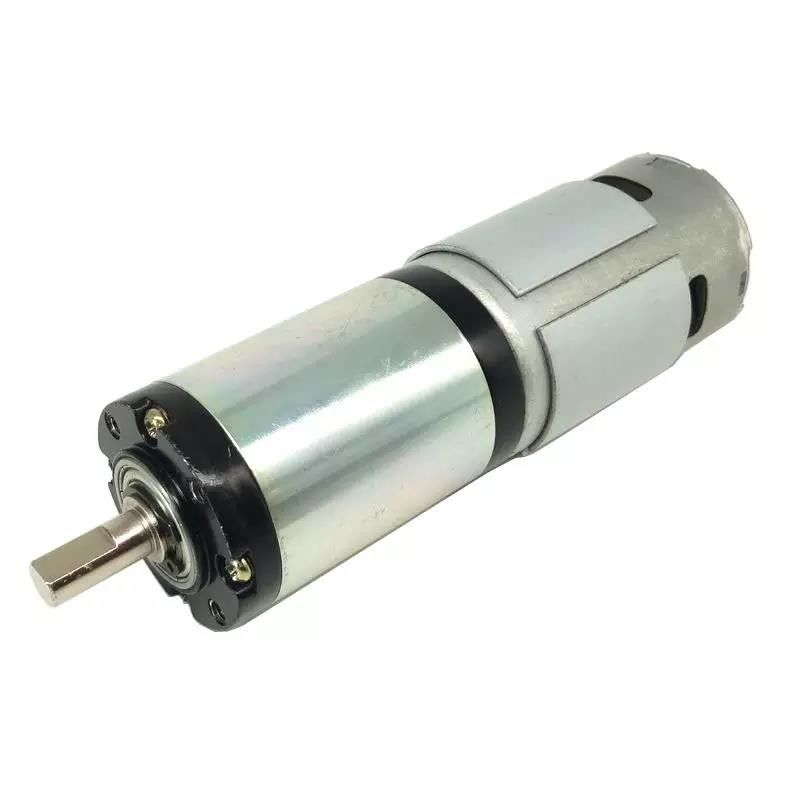

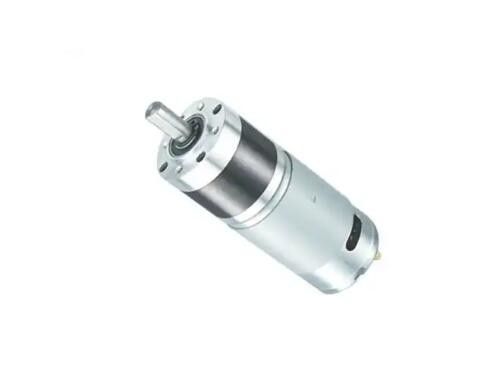

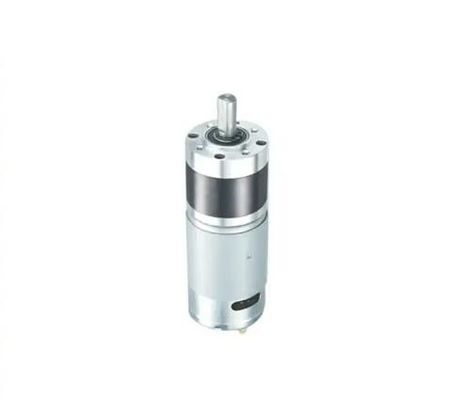

12V 18V 24V Planetary DC Reduction Gear Motor 775 High Torque Dia 42mm 45mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DPG42-775 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD14.85-18.5pcs |
| Packaging Details: | carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs30days |
|
Detail Information |
|||
| Product Name: | Dc Planetary Gear Motor | Material: | Metal |
|---|---|---|---|
| Power: | 15-100W | Shaft Diameter: | 10mm |
| Speed: | 15-900rpm | Torque: | 2-10Nm |
| Type: | DC Motor | Voltage: | 12V/24V |
| Highlight: | Planetary DC Reduction Gear Motor,12V Gear Reduction Motor High Torque,24V Gear Reduction Motor 42mm |
||
Product Description
Dia 42mm 45mm dc planetary gear motor high torque long lifetime 12v 18v 24v dc planetary gear box reduction motor 775
Motor Type: DC planetary gear motor
Item NO. DPG42-775
Voltage 6V~24V
Speed 15~500RPM
Working Current 5A Max
Body Diameter:42MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.The price is a little expensive.
Description:
High torque, Low-noise, Durable and High efficiency, Impressive precision, Compact size, Longer gear life,
Planetary dc geared motor 12V 24V
No load speed have :36 / 50 / 71 / 100 / 185 / 357 / 962 RPM
Direction of rotation of the motor: CW Or CCW ; Support Reversed
Gear material: Metal gears make the motor last longer
Specification:
| Item | Dc Planetary gear motor DPG42-775 |
| Size | Diameter42mm |
| Working Voltage | 6V~24V |
| Speed | 15~900RPM |
| Torque | 15-150kg.cm |
| Working Current | 85mA Max |
| Typical Current | 62mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
