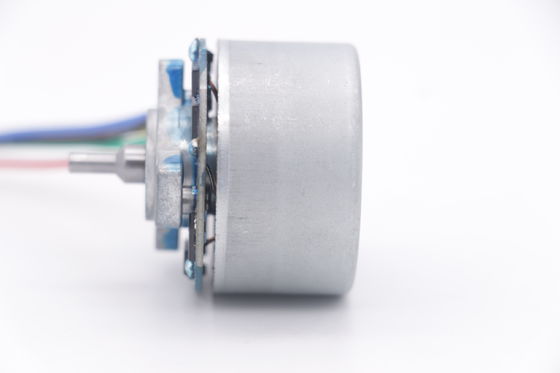

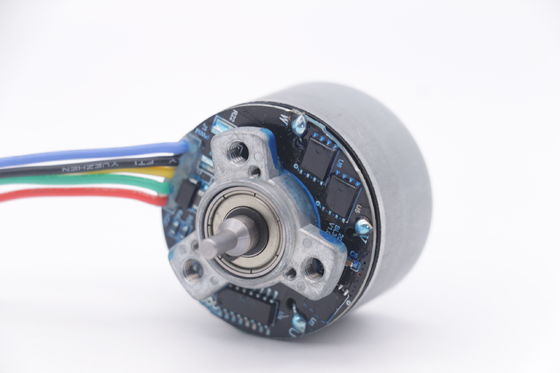

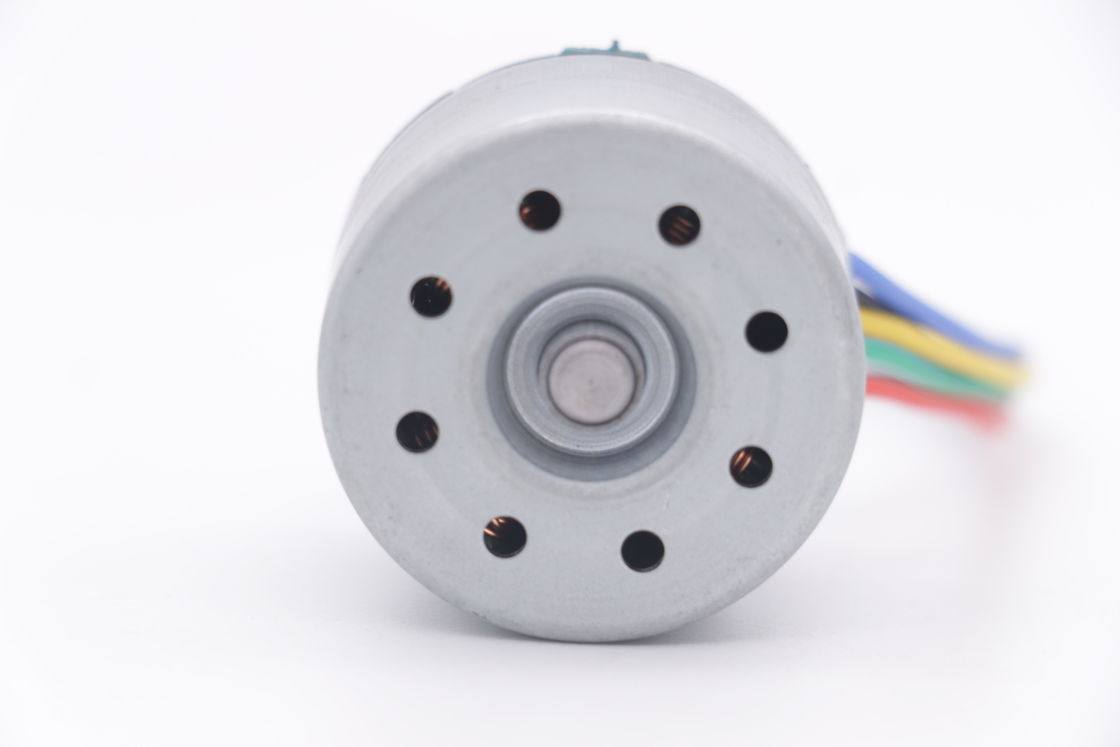

DBL3830O Motor 12v 3500rpm 38mm Outrunner Brushless Motor For Mini Massager Gun
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | BL3830O(Sintered NdFeB) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | Brushless DC Motor | Output: | 10W~45W |
|---|---|---|---|
| Efficiency: | 65%~85% | Size: | Diam 38mm X L 30mm |
| Construction: | Permanent Magnet | Rated Voltage: | 24V (Can Be Customized) |
| Speed: | 3500RPM(Custom As Request) | Torque(At Maximum Efficiency): | 734g.cm |
| Continuous Current(A): | 0.2A-0.6A | Power(At Maximum Efficiency): | 54W |
Product Description
DBL3830O Motor 12v 3500rpm 38mm Outrunner Brushless Motor For Mini Massager Gun
Industry-specific Attributes:
Speed (RPM) 3500 RPM
Continuous current rating of 0.2A to 0.6 A
Efficiency level between 65% and 85%
Quick Detail:
BL3830O(Sintered NdFeB)
Brushless BLDC Motor
High Efficiency
Long Life Span
Low Noise
Adjustable Rated Voltage
Controllable Motor Rotation(CW/CCW)
Permanent Magnet Construction
Ball Bearing or Oil Bearing Optional
1 Year Warranty
ODM,OEM Service
Typical Application For Fascial Gun
Specification
| Model | DBL3830O |
| Size | Diam 38mm * L 30mm |
| Rated Voltage | 5V~26V DC (Customized) |
| Speed(At the maximum efficiency) | 3500rpm |
| Torque(At the maximum efficiency) | 734g.cm |
| Stall Torque | 7.1kg.cm |
| Shaft Diameter | 6mm |
| Shaft Shape | D-Cut(Or customized) |
| Ball Bearing or Oil Bearing | Can be customized |
| Efficiency | 65~85% |
| Noise | 30db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | To be estimated as your data details |
Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW / CCW |
| 4 | GND |
| 5 | PWM |
Features
BL3830O (Sintered NdFeB) Brushless BLDC Motor
This brushless BLDC motor features BL3830O sintered NdFeB as its magnet material, which provides high efficiency, long lifespan, low noise, adjustable rated voltage, and controllable motor rotation (CW/CCW). It adopts a permanent magnet construction for maximum torque output and is equipped with ball bearing or oil bearing options for smooth operation and low vibration.
This BLDC brushless motor also includes a 1-year warranty and is capable of both original design manufacturer (ODM) and original equipment manufacturer (OEM) services, making it easy to integrate into your system or customize to your specific needs. The typical application for this motor is for fascial guns.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are the manufacturer with 16 years’ experiences.
Q2: What’s your main products ?
A: Dia12-46mm dc motor,dc gear motor,brushless dc motor,planetary gear motor,high voltage dc motor,coreless motor.
Q3: What’s the main usage of your products ?
A: Our products are widely used in aviation,tools,medical,robotics,automation,Security doors,DMS,and other fields.
Q4: Do you accept OEM/ODM ?
A: We only accept ODM. Our R&D team have six experienced engineers. Tell us your needs, we can make it.
Q5: What I need to provide if I want to make a customized order ?
A: Please kindly tell us the voltages,speed,torque and overall dimension.
Q6: What if I don’t know the above data ?
A: Please tell us the usage of the product you want, we will give you professional advice.
Q7: How about the sample order ?
A: Samples are available. The extra fees due to the model type.
Q8: What’s the payment term ?
A: Payment by T/T or L/C, other payment methods are also acceptable . Sample order should be 100% prepaid. For bulk order, 50% deposit, the balance paid before shipping.
Q9: Which shipping way is available ?
A: Sample or small order by DHL,UPS,FedEx. Bulk order by Air or by Sea.
Q10: How long is the delivery time ?
A: Sample order takes 7-15 workdays. Bulk order takes 25-30 workdays.
