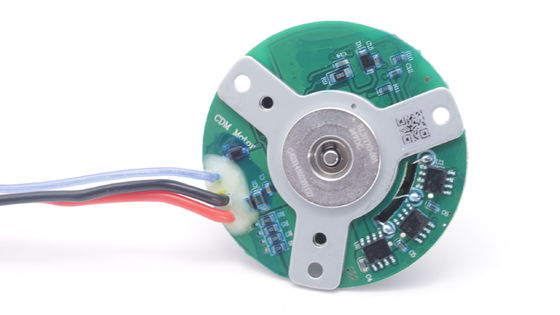

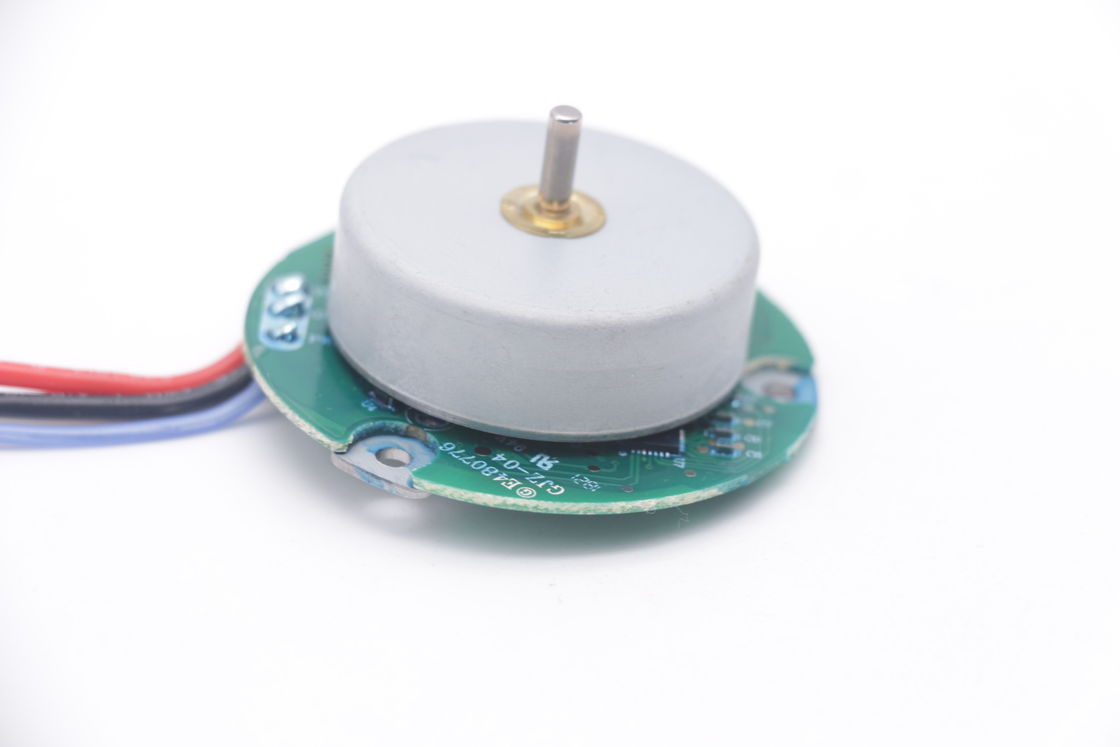

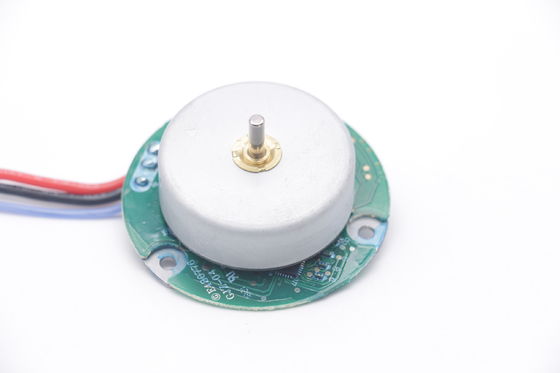

DBL3717 37mm High Speed BLDC Brushless DC Motor For Vacuum Cleaner Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL3717O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | Outer Roter Brushless DC Motor | Output: | Approx 2W~30W |
|---|---|---|---|
| Efficiency: | 85% | Size: | Diam 37mm * L 17mm (The Size Of Pcb Not Included) |
| Continuous Current: | 1.6A ~ 2.6 A | Threaded Hole: | 2-M3 |
| Rated Voltage: | 8V~26V | Torque: | 150g.cm-260g.cm |
| Speed: | 10000~20000RPM(Custom As Request) | Power(At Maximum Efficiency): | 14.5W |
Product Description
DBL3717 37mm High Speed BLDC Brushless DC Motor For Vacuum Cleaner Motor
Industry-specific Attributes:
Speed (RPM) range of 10,000 to 20,000 RPM
Continuous current rating of 1.6 to 2.6 A
Efficiency level between 65% and 85%
Quick Detail:
Outer Rotor Brushless DC Motor
Built-in Driver
High Speed
High Efficiency
Long Life Span
Low Noise
Adjustable Rated Voltage
Controllable Motor Rotation(CW/CCW)
Permanent Magnet
Ball Bearing or Oil Bearing Optional
1 Year Warranty
ODM,OEM Service
Specification
| Model | DBL3717O |
| Size | Diam 37mm * L 17mm |
| Rated Voltage | 24V DC (Customized) |
| Speed(At the maximum efficiency) | 20481rpm |
| Torque(At the maximum efficiency) | 253.4g.cm |
| Stall Torque | 2.1kg.cm |
| Shaft Diameter | 3mm |
| Efficiency | 65~85% |
| Ball Bearing or Oil Bearing | Can be customized |
| Direction of Rotation | CCW / CW |
| Noise | 40-60db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | To be estimated as your data details |
Motor Terminations
| No. | Pin Arrangement |
| 1 | PWM |
| 2 | FG |
| 3 | VCC |
| 4 | GND |
Features
This outer rotor brushless DC motor comes with a built-in driver for simple installation and operation. It features high speed performance and high efficiency, making it suitable for various applications. The motor has a long lifespan and low noise output, making it suitable for continuous operation and use in noisy environments. The motor’s rated voltage is adjustable, allowing you to fine-tune the performance for your specific application. The motor rotation can be controlled in both clockwise (CW) and counterclockwise (CCW) directions, providing flexibility during operation. The motor features a permanent magnet design for maximum torque output and comes with either ball bearing or oil bearing options to ensure smooth operation and low vibration.
It also includes a 1-year warranty and is capable of both original design manufacturer (ODM) and original equipment manufacturer (OEM) services, making it easy to integrate into your system or customize to your specific needs.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are the manufacturer with 16 years’ experiences.
Q2: What’s your main products ?
A: Dia12-46mm dc motor,dc gear motor,brushless dc motor,planetary gear motor,high voltage dc motor,coreless motor.
Q3: What’s the main usage of your products ?
A: Our products are widely used in aviation,tools,medical,robotics,automation,Security doors,DMS,and other fields.
Q4: Do you accept OEM/ODM ?
A: We only accept ODM. Our R&D team have six experienced engineers. Tell us your needs, we can make it.
Q5: What I need to provide if I want to make a customized order ?
A: Please kindly tell us the voltages,speed,torque and overall dimension.
Q6: What if I don’t know the above data ?
A: Please tell us the usage of the product you want, we will give you professional advice.
Q7: How about the sample order ?
A: Samples are available. The extra fees due to the model type.
Q8: What’s the payment term ?
A: Payment by T/T or L/C, other payment methods are also acceptable . Sample order should be 100% prepaid. For bulk order, 50% deposit, the balance paid before shipping.
Q9: Which shipping way is available ?
A: Sample or small order by DHL,UPS,FedEx. Bulk order by Air or by Sea.
Q10: How long is the delivery time ?
A: Sample order takes 7-15 workdays. Bulk order takes 25-30 workdays.
