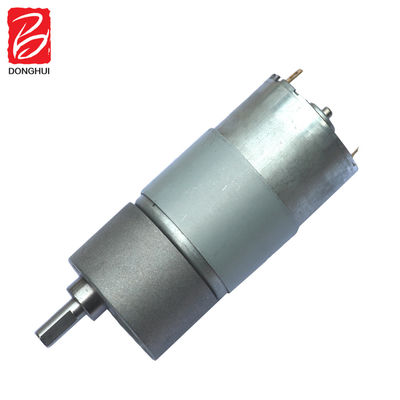

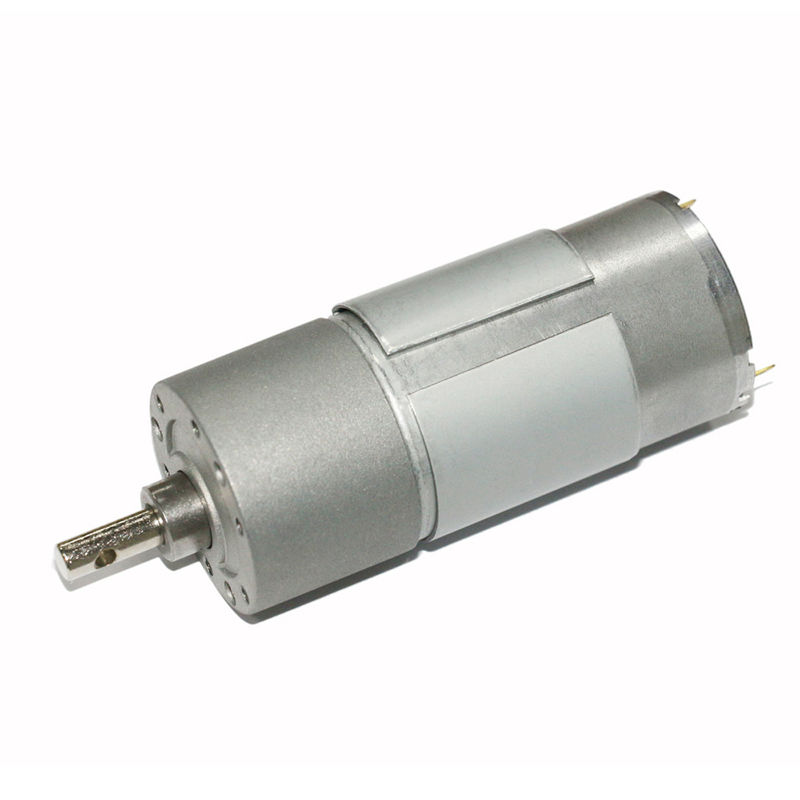

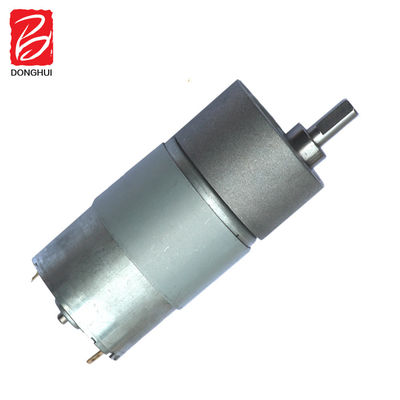

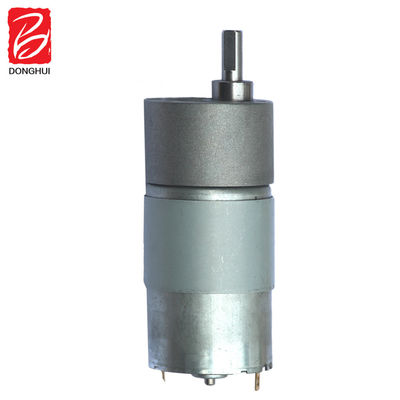

12V 24V 37mm Brush DC Gear Motor 555 High Torque 45 55 65 75 rpm Low Speed
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | donghui motor |
| Certification: | CE ROHS |
| Model Number: | DGB37-555 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD5.5-6.85pcs |
| Packaging Details: | carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs30days |
|
Detail Information |
|||
| Product Name: | Dc Brush Gear Motor | Diameter: | 37mm |
|---|---|---|---|
| No-load Current: | 0.2A | No-load Speed: | 10-1000rpm |
| Rated Current: | 1.2A | Rated Torque: | 1-20kg.cm |
| Rated Voltage: | 12/24V | Shaft Diameter: | 6mm |
| Shaft Length: | 5-35mm Customized | Stall Current: | 5A |
| Highlight: | 37mm Brush DC Gear Motor,Brush DC Gear Motor 75 Rpm |
||
Product Description
Diameter 37mm brush dc gear motor high torque 12/24v 45/55/65/75rpm low speed with dc motor 555
Motor Type: DC Brush gear motor
Item NO. DGB37-555
Voltage 6V~24V
Speed 15~1000RPM
Working Current 5A Max
Body Diameter:37MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.High quality and 100% brand new
Description:
Special steel plate, fully automatic metal stamping forming, high precision, good copper core, accurate size specifications.
Rotor: pure copper wire winding, high-quality iron core, power saving, durable, low noise, low calorific value, reduced energy loss, reduced current resistance, good electrical conductivity.
Specification:
| Item | Dc brush gear motor DGB37-555 |
| Size | Diameter37mm |
| Working Voltage | 6V~24V |
| Speed | 15~1000RPM |
| Torque | 0.3GRMS min |
| Working Current | 85mA Max |
| Typical Current | 62mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →
cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
