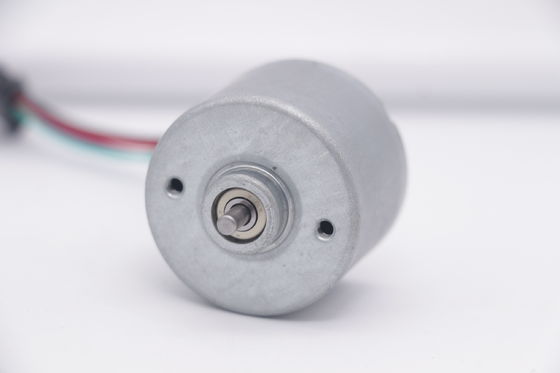

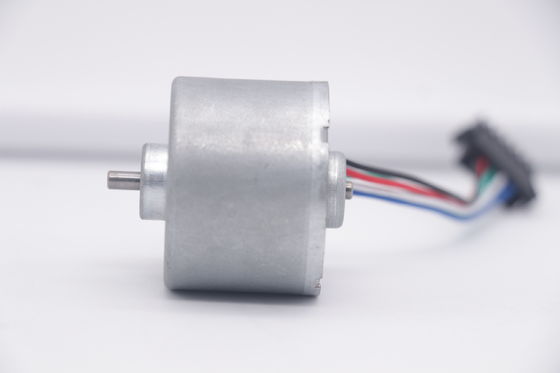

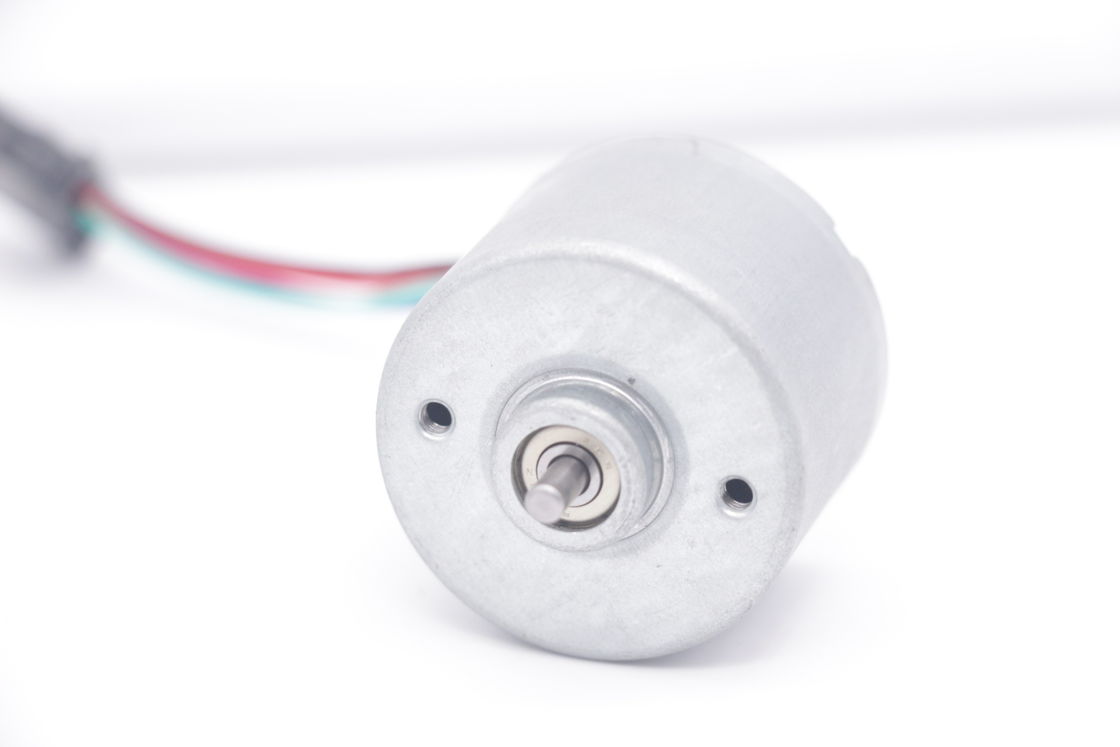

DBL3630 24V 6835RPM DC Brushless Electric Motor Inner Rotor BLDC Brushless DC Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL3630I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | DC Brushless Electric Motor | Magnet: | Permanent Magnet |
|---|---|---|---|
| Output: | 2W~18W | Rotor Type: | Inner Rotor |
| Noise: | 35~45dB (It Is Up To The Working Situation) | Shaft Diameter: | 4mm |
| Size: | Diam 36mm * L 30mm | Threaded Hole: | 2-M3 |
| Rated Voltage: | 12V 18V 24V | Torque: | Custom As Request |
| Speed: | Custom As Request | Power(At Maximum Efficiency): | 14.5W |
Product Description
36mm 24V 6835RPM 20W Brushless DC Electric Motor 1.7kg.cm Torque BLDC Brushless Motor
Quick Detail:
Brushless DC Electric Motor
Built-in Driver
Inner Rotor
Adjustable Rated Voltage
Controllable Motor Rotation(CW/CCW)
Permanent Magnet
Ball Bearing or Oil Bearing Optional
Low Noise
Life Span 15000hrs(Up to the speed of the bldc motor & the using situation)
1 Year Warranty
ODM,OEM Service
Specification
| Model | DBL3630I |
| Size | Diam 36mm * L 30mm |
| Rated Voltage | 24V DC (Customized) |
| Speed(At the maximum efficiency) | 7364rpm |
| Torque(At the maximum efficiency) | 191.3g.cm |
| Stall Torque | 1.1kg.cm |
| Shaft Diameter | 4mm |
| Power Efficiency | 90% |
| Ball Bearing or Oil Bearing | Can be customized |
| Direction of Rotation | CCW / CW |
| Noise | 40db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | 15000hrs(Up to the speed of the bldc motor & the using situation) |

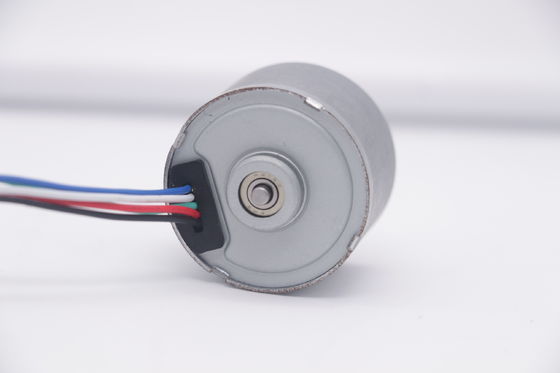

Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
| 6 | BRAKE |
Features
Brushless DC electric motors are an extremely effective type of electric motor. They typically include a built-in driver that is responsible for managing the rotation of the inner rotor. These motors are adjustable, meaning that the rated voltage can be modified according to the specific application. Controllable motor rotation is a key feature that allows for precise control of the direction and speed of the motor's rotation.
The motors are also equipped with a permanent magnet that provides a strong magnetic field necessary for motor operation. The bearings used in these motors can be either ball bearings or oil bearings, allowing for greater flexibility in design and application. The motors are low-noise, making them suitable for use in noisy environments. Additionally, they have a life span of 15,000 hours, which is dependent on the speed of the BLDC motor and the usage situation. Finally, we provide a 1-year warranty to ensure the quality and performance of our brushless DC electric motors. We also offer ODM and OEM services to meet the specific needs of our clients.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are the manufacturer with 16 years’ experiences.
Q2: What’s your main products ?
A: Dia12-46mm dc motor,dc gear motor,brushless dc motor,planetary gear motor,high voltage dc motor,coreless motor.
Q3: What’s the main usage of your products ?
A: Our products are widely used in aviation,tools,medical,robotics,automation,
Security doors,DMS,and other fields.
Q4: Do you accept OEM/ODM ?
A: We only accept ODM. Our R&D team have six experienced engineers. Tell us your needs, we can make it.
Q5: What I need to provide if I want to make a customized order ?
A: Please kindly tell us the voltages,speed,torque and overall dimension.
Q6: What if I don’t know the above data ?
A: Please tell us the usage of the product you want, we will give you professional advice.
Q7: How about the sample order ?
A: Samples are available. The extra fees due to the model type.
Q8: What’s the payment term ?
A: Payment by T/T or L/C, other payment methods are also acceptable . Sample order should be 100% prepaid. For bulk order, 50% deposit, the balance paid before shipping.
Q9: Which shipping way is available ?
A: Sample or small order by DHL,UPS,FedEx. Bulk order by Air or by Sea.
Q10: How long is the delivery time ?
A: Sample order takes 7-15 workdays. Bulk order takes 25-30 workdays.
