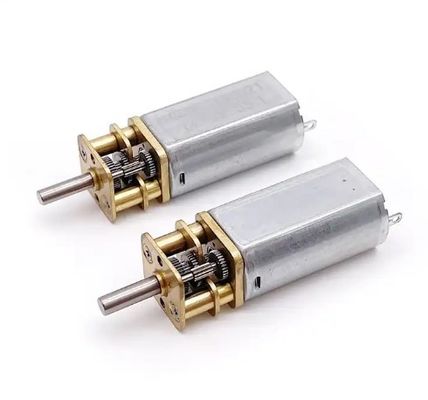

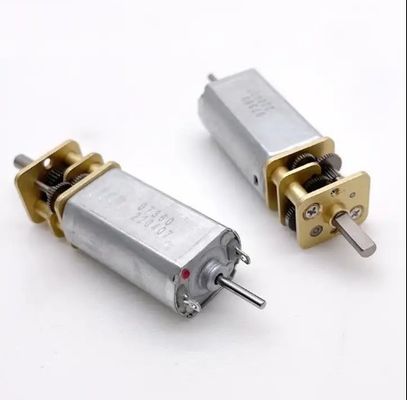

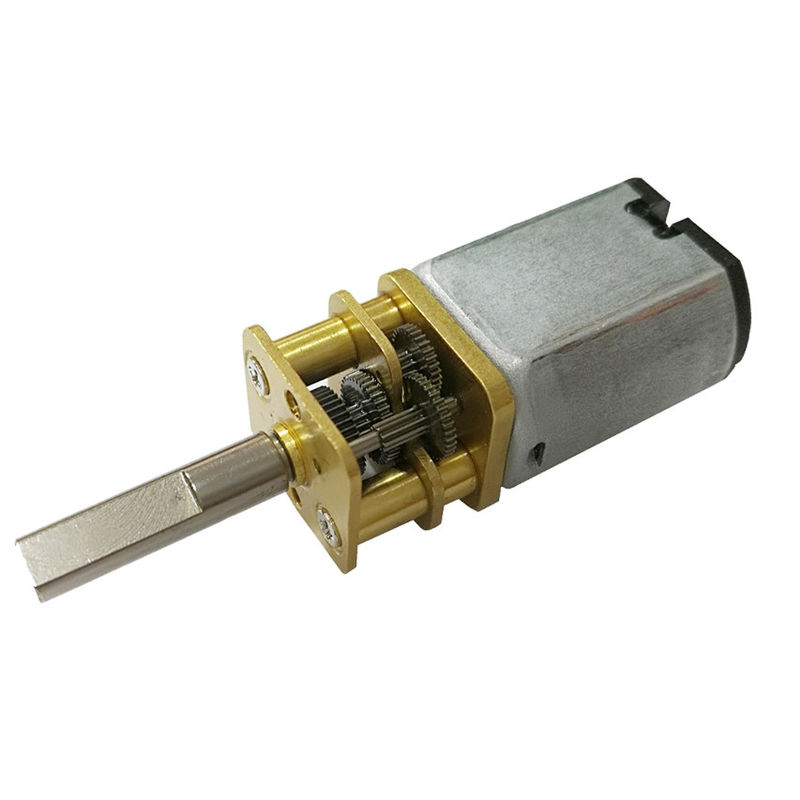

Brush Small DC Gear Motor DC 3V 6V 12V 24V Diameter 13mm For Door Lock
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DGA13-030 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD1.95-2.85 |
| Packaging Details: | carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs30days |
|
Detail Information |
|||
| Product Name: | Dc Gear Motor | Motor Type: | Brush DC Gear Motor |
|---|---|---|---|
| No Load Current: | 0.1-1A | No Load Speed: | 5-2000RPM |
| Noise: | ≤50dB | Rated Torque: | 0.1-3KG.CM |
| Rated Voltage: | 1.5V-24V | Reduction Ratio: | 1-1000 |
| Shaft: | Φ2.5mm | Diameter: | 13mm |
| Highlight: | Brush Small DC Gear Motor,Small DC Gear Motor 24V |
||
Product Description
Diameter 13mm DC Small Gear Motor DC3V 6V 12V 24V with 030 for Door Lock beauty product
Motor Type: DC Brush gear motor
Item NO. DGA13-030
Voltage 1.5V~24V
Speed 15~3000RPM
Working Current 2A Max
Body Diameter:13MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
Description:
Voltage:DC Input 1.5V,3v,4.5v, 5v,6v,7.2v,9v,12v (Can be Customized)
Power:(Can be Customized)
Speed:Variable speed from 0.5-3000rpm (Can be Customized)
Torque:Up to 2kgf.cm rated torque(Can be Customized)
Shaft:shaft Dia: 3mm ,Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)
Specification:
| Item | Dc brush gear motor DGA13-030 |
| Size | Diameter13mm |
| Working Voltage | 4.5v |
| Speed | 75RPM |
| Torque | 0.8kg,cm |
| Working Current | 45mA Max |
| Typical Current | 50mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
