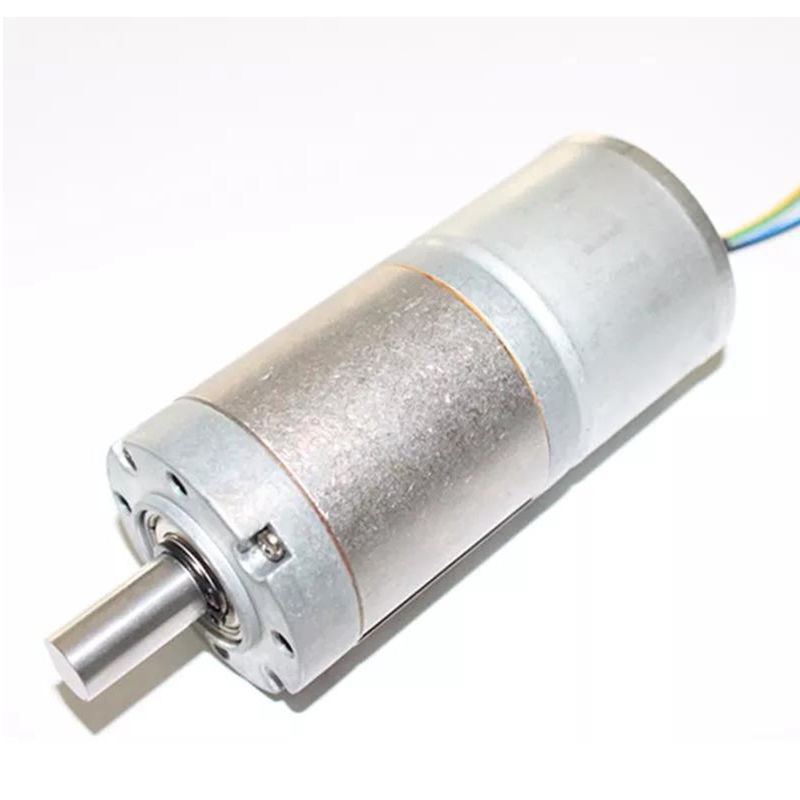

42mm High Torque Brushless DC Gear Motor 4235 12V 24V Low Speed BLDC Geared Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DPG42-4235 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | USD17.5-22.5PCS |
| Packaging Details: | carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs 30days |
|
Detail Information |
|||
| Production Name: | Dc Brushless Gear Motor | Insulation: | Class F |
|---|---|---|---|
| Length: | 50-400mm | Efficiency: | 50-80% |
| Motor Type: | DC Brushless Motor | Noise: | ≤70dB |
| Power: | 20W-300W | Shaft Diameter: | 8mm |
| Speed: | 10-600rpm | Torque: | 0.1-30N.m |
| Voltage: | 12V/24V/36V | ||
| Highlight: | High Torque Brushless DC Gear Motor,42mm Brushless DC Gear Motor,24V BLDC Geared Motor |
||
Product Description
42mm high torque dc brushless gear motor bldc 4235 12volt geared 24v brushless low speed customized motor
Motor Type: DC Brushless motor
Item NO. DBL4235
Voltage 12V~36V
Speed 2000~10000RPM
Working Current 5A Max
Body Diameter:42MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.The price is a little expensive.
Description:
Brushless DC motors have the advantages of small size, high power, high efficiency, controllable speed, long service life, and no spark generation. They can widely replace DC motors, variable frequency motors, AC asynchronous motors, and are perfect for planetary reducers. They can also be connected in conjunction with ordinary reducers. The products are widely used in industries such as automobiles, medical equipment, electric tools, automation instruments, automation equipment, household appliances, military industry, energy conservation and environmental protection, aerospace, etc. Brushless motors are the development direction of future motors and the best choice for green and energy-saving driving in the future.
Specification:
| Item | Dc brush gear motor DPG42-4235 |
| Size | Diameter42mm |
| Working Voltage | 12V~36V |
| Speed | 15~300RPM |
| Torque | 0.5-50kg.cm |
| Working Current | 85mA Max |
| Typical Current | 62mA |
| Lifetime | 8000hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →
cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
