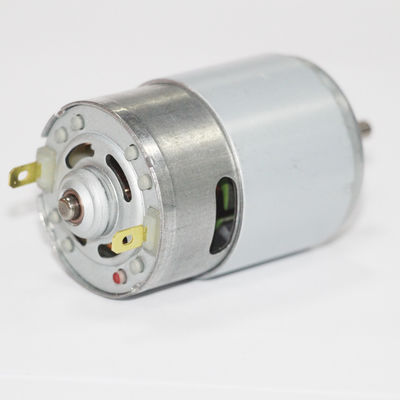

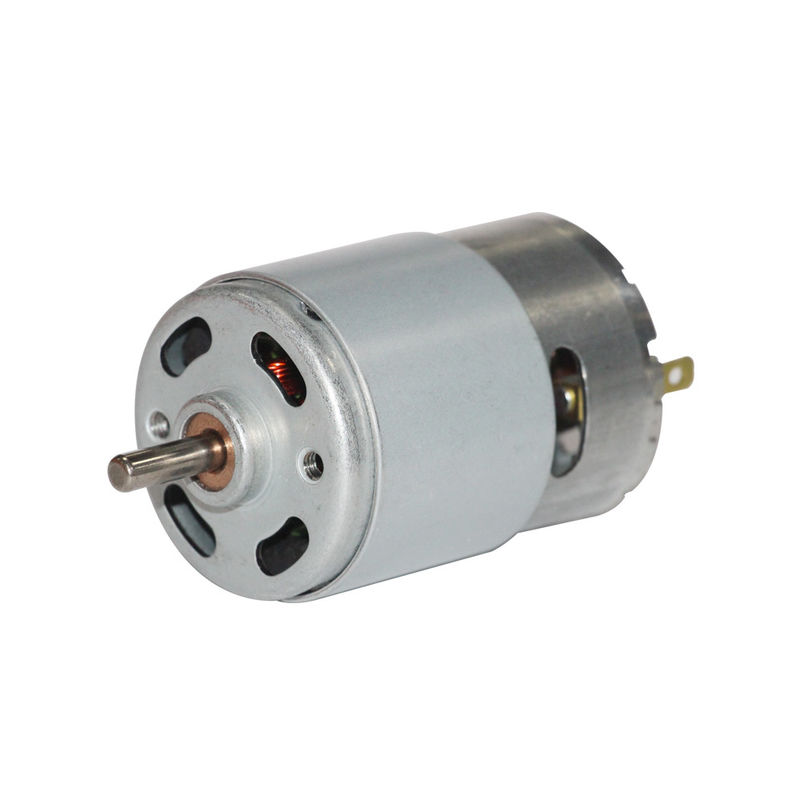

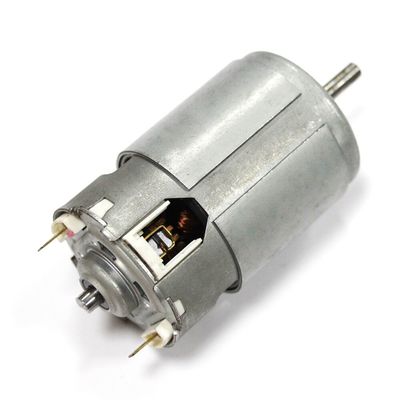

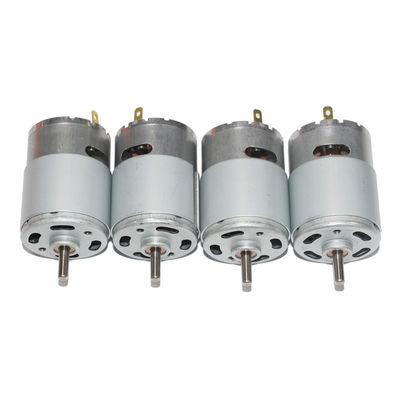

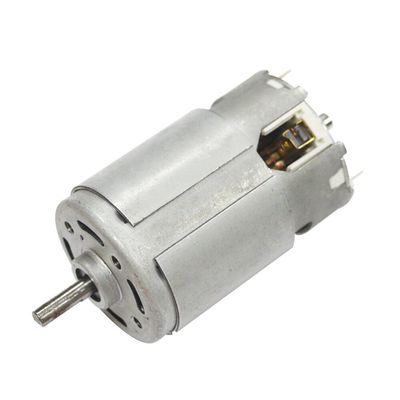

12V 24V High Rpm Brush DC Motor Permanent Magnet RS 775 DC Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | CE/UL/CCC/ROHS |
| Model Number: | DRC-775 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 3.25~4.5USD/PCS |
| Packaging Details: | Foam Box+ Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000PCS/Month |
|
Detail Information |
|||
| Certificate: | CE/UL/CCC/ROHS | Size: | Diam 42.2mm * L 67mm |
|---|---|---|---|
| Material: | Iron, Copper, Carbon | Efficiency: | 50~80% |
| Insulation Class: | Class B/Class F | Motor Type: | Brush DC Motor |
| Mounting Hole: | 2-M4x0.7 | Noise: | 30~60dB |
| Shaft Type: | Round/Flat/Double | Protection: | 12V~24V (Customized) |
| Speed: | 2000~20000rpm (Customized) | Torque: | 2~10kg.cm (Customized) |
| Ball Bearing Or Oil Bearing: | Can Be Customized | Direction Of Rotation: | CCW / CW (Customized) |
| Working Temperature: | -10℃ ～ +70℃(25℃best) | ||
| Highlight: | 24V Brush DC Motor,High Rpm Brush DC Motor,12V RS 775 DC Motor |
||
Product Description
Quick Detail:
· High Torque Brush DC Motor
· Long Life Span 5000H
· High efficiency
· EMC,Fan blades and magnetic protective rings can be added
· Carbon brush
· Permanent Magnet
· Ball Bearing & Oil Bearing Option Available
· Low Noise
· Explosion-proof
· CE, RoHS Compliant
· 1 Year Warranty
· ODM,OEM Service Available
Data Specification RC-775.pdf
Customized spares parts
1)voltage,current,speed and torque.
2)Shape of shaft:"D" "Round" "Flat" "Hexagon Axis" "Square axis".
3)Bearing:ball bearing or oil bearing.
4)Materials of shell:plastic and metal.
5)Tooth form:Spur gear,helical gear.
Our products are widely used in Fan, Home Appliance, Electric tools,Automobiles.
Specifications:
Electrical / Optical Characteristics
| Model | RS775 |
| Size | Diam 42.2mm * L 67mm |
| Rated Voltage | 12V DC |
| Speed | 5000rpm |
| Stall Torque | 2880g.cm |
| Stall Current | 15.6A |
| Efficiency | IE4 |
| Material | Iron, copper, carbon |
| Ball Bearing or Oil Bearing | Can be available as request |
| Mounting Hole | 2-M4x0.7 |
| Direction of Rotation | CCW / CW |
| Noise | Depends on speed and actual usage |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | Based on the actual operation of the motor |
| Certification | CE, RoHS |
Notice:
1.Typical Applications:Printer,Copy Machine,Sewing Machine,
Water Pump,Hair Dryer,Circular Saw,String Trimmer,etc
2.high efficiency,less noise,and low current,24v dc motor
3.can match with 45mm planetary gearbox,or 51mm gear box
4.shaft:5.0mm diamter,shaft length 14.5/19.5mm
5.mounting holes:2-M4x0.7
6.double shaft for encoder,12ppr
7.we can provide samples for your test.
FAQ
Q1: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
Q2: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q3: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q4: How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q5: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q6: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
